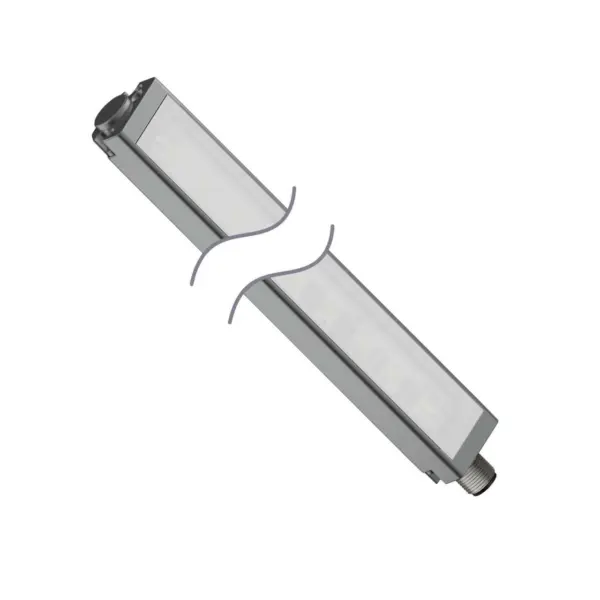

Banner Engineering WLS28-2XWGRYB5-0570S24Q

WLS28-2 Multicolor Light Strip; Length: 570 mm. Part number: 807005. model: WLS28-2XWGRYB5-0570S24Q. part_number: 807005. list_price: 460 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_NumberOfColors: 5. Custom_Group_1988_1988: Colors: Daylight WhiteColors: GreenColors: RedColors: YellowColors: Blue. BAN_Supply_Voltage: 24 V dc. BAN_LI_IlluminatedDimension: 570.0. BAN_LI_Lens_Material: Polycarbonate Diffused. BAN_Cascade: No. BAN_Connection: Integral QD. BAN_LI_Switch_Function: —. BAN_Washdown_Rated: Yes. BAN_IPRating: IP65, IP67, IP69K. BAN_LI_Dimming_Option: —. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP65, IP67, IP69K. Display: No. Supply Voltage: 24 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Aluminum. Indication: Yes. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Multiple (One or more wires/color, enables more colors than input wires). Number of Colors: 5. Product Size (mm): 28. Color Technology: Standard LED. Color Option 1: Daylight White. Connection: Integral QD. Lumens Color 1: 650. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 5000K (Daylight). Color Option 2: Green. Lumens Color 2: 400. Color 2 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 3: Red. Lumens Color 3: 185. Color 3 – Wavelength/Color Temp/Coordinates: 625 nm. Color Option 4: Yellow. Lumens Color 4: 570. Color 4 – Wavelength/Color Temp/Coordinates: 580 nm. Color Option 5: Blue. Lumens Color 5: 125. Color 5 – Wavelength/Color Temp/Coordinates: 470 nm. Max Current Color (mA): 400. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 570.0. Physical Dimensions (LxWxH or DxH mm): 608.0 x 28.0 x 20.9. Environmental Rating: IP65; IP67; IP69K. Eye Shield: No. High Temperature (up to 100 C): 70. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: Yes. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: No. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): No. EPLAN Status: Published. EPLAN Original Sent Date: 04/12/2024
