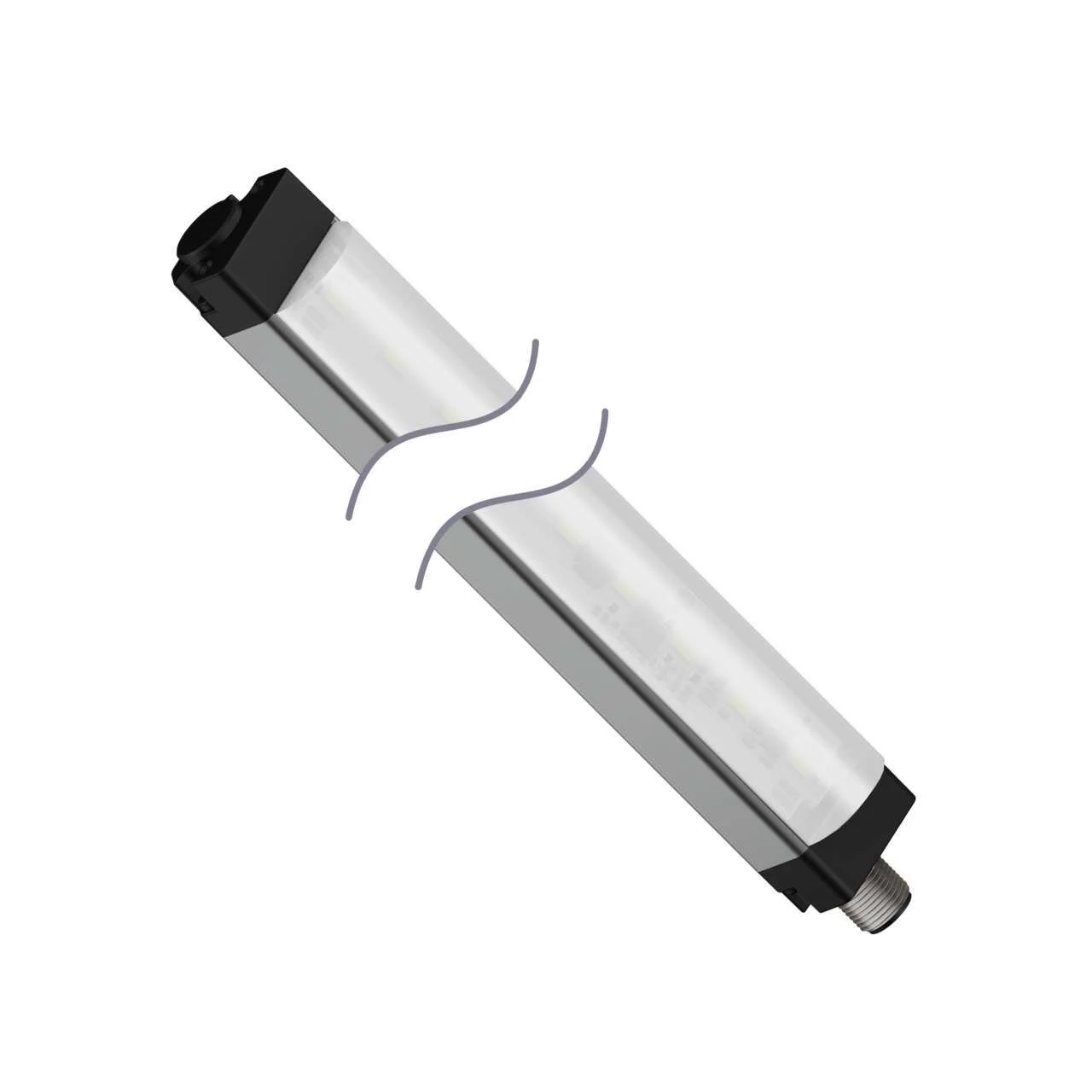

Banner Engineering WLS28-2XWGRXX3-1130L25X24Q
WLS28-2 3 Color Light Strip; Length: 1130 mm
Voltage: 24 V dc; Environmental Rating: IP50
Colors: White Green Red; 25 Deg Lens
4-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLS28-2 3 Color Light Strip; Length: 1130 mm
Voltage: 24 V dc; Environmental Rating: IP50
Colors: White Green Red; 25 Deg Lens
4-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP50 |
| Display | No |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | Aluminum |
| Indication | Yes |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | 28 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Lumens Color 1 | 1900 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Color Option 2 | Green |
| Lumens Color 2 | 1600 |
| Color 2 Wavelength/Color Temp/Coordinates | 525 nm |
| Color Option 3 | Red |
| Lumens Color 3 | 740 |
| Color 3 Wavelength/Color Temp/Coordinates | 625 nm |
| Max Current Color (Ma) | 1600 |
| Number Of Input Pins/Conductors | 4 |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 1130.0 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 1173.0 x 28.0 x 21.0 |
| Environmental Rating | IP50 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Lens Focusing Angle/Fov (Degrees) | 25 |
| Primary Window Material | Polycarbonate Clear |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
