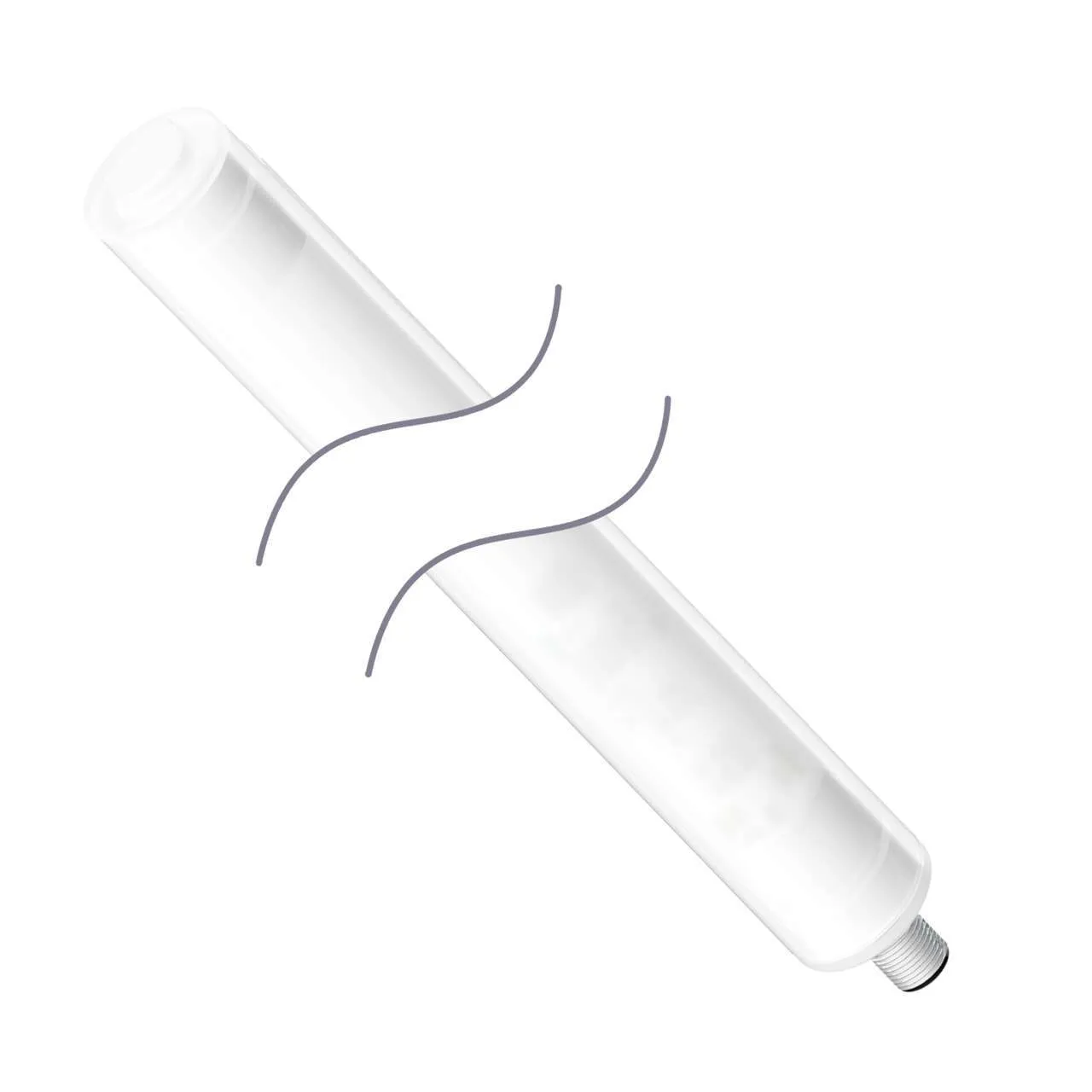

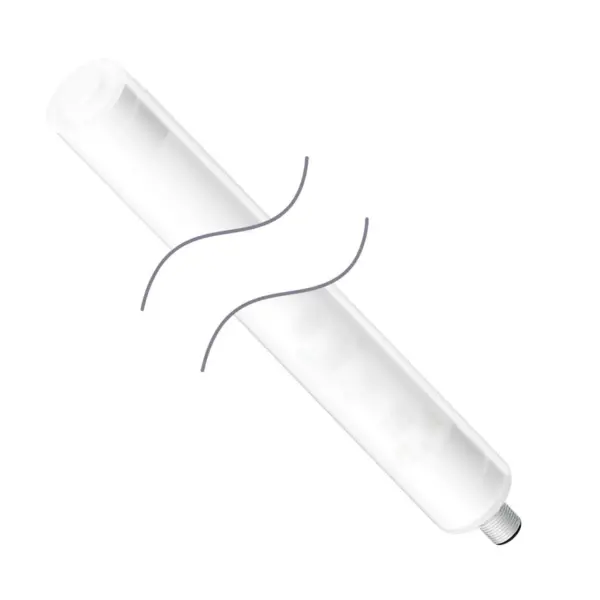

Banner Engineering WLS27XGYRXX3-0570DS24Q

WLS27 Multicolor Light Strip; Length: 570 mm. Part number: 802046. model: WLS27XGYRXX3-0570DS24Q. part_number: 802046. list_price: 422 USD. is_new: 0. is_in_stock: 1. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/201896.pdf. BAN_NumberOfColors: 3. BAN_LI_IlluminatedDimension: 570.0. BAN_Cascade: No. Custom_Group_1995_1995: Colors: GreenColors: YellowColors: Red. BAN_Indication: Yes. BAN_LI_Lens_Material: Copolyester Diffused. BAN_LI_Dimming_Option: —. BAN_Supply_Voltage: 24 V dc. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP66, IP67, IP69K. Display: No. Supply Voltage: 24 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: FDA Copolyester. Indication: Yes. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 3. Product Size (mm): 27. Color Technology: Standard LED. Color Option 1: Green. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 800. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 525 nm. Color Option 2: Yellow. Animation Option 2: Solid On. Lumens Color 2: 1140. Color 2 – Wavelength/Color Temp/Coordinates: 580 nm. Color Option 3: Red. Animation Option 3: Solid On. Lumens Color 3: 370. Color 3 – Wavelength/Color Temp/Coordinates: 625 nm. Max Current Color (mA): 800. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 570.0. Physical Dimensions (LxWxH or DxH mm): 27.0 x 633.5. Environmental Rating: IP66; IP67; IP69K. Eye Shield: No. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Copolyester Diffused. Feature: Washdown Rated: Yes. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: Yes. Feature: Illuminated: No. Multi-Color Device: Single Color On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Wireless: No. USB: No
