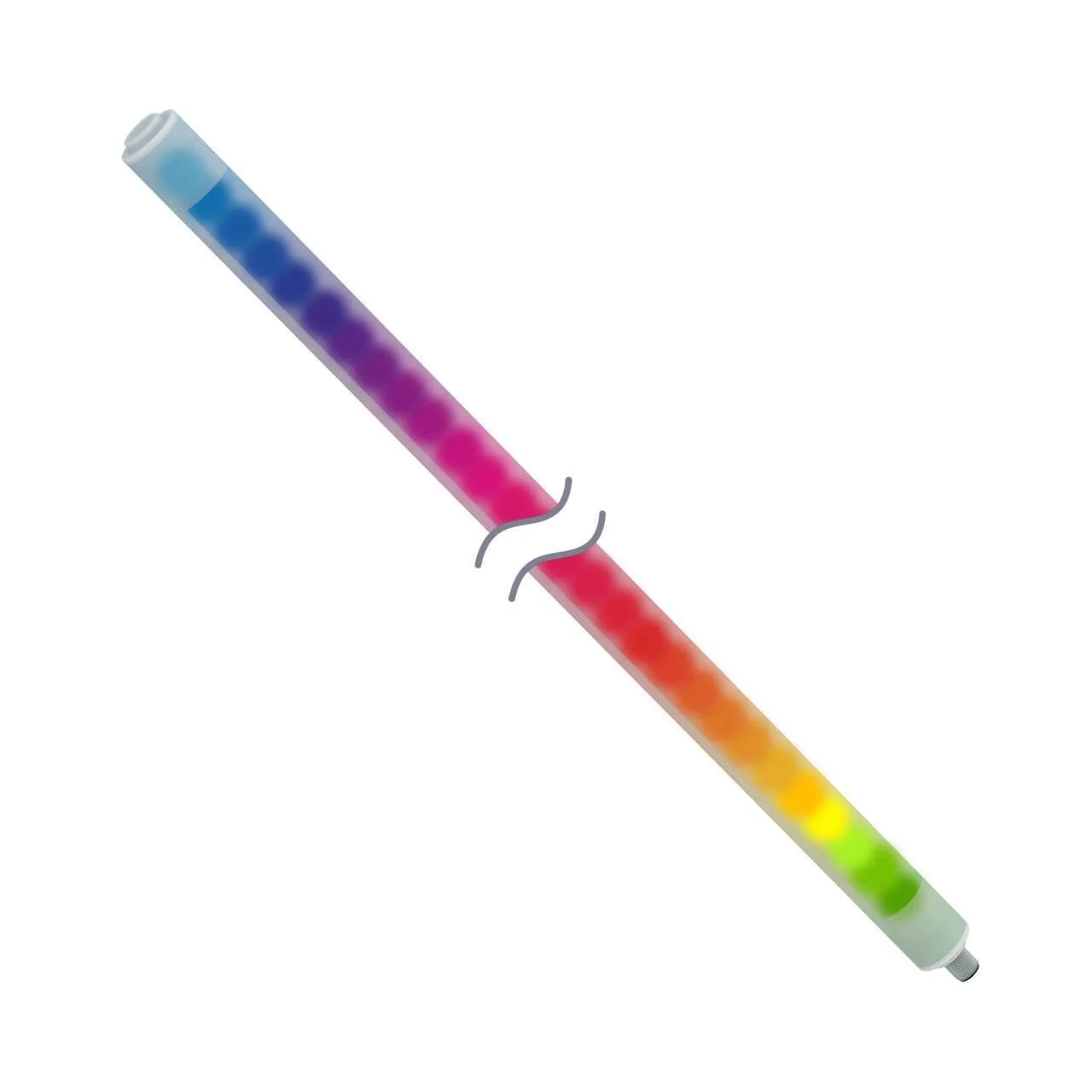

Banner Engineering WLS27PXRGBW1130HSKQ
WLS27 Pro Light Strip with IO-Link; Heavy Diffuse Window; Length: 1130 mm
Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K
Color: RGBW; Non-Cascadab…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLS27 Pro Light Strip with IO-Link; Heavy Diffuse Window; Length: 1130 mm
Voltage: 18-30 V dc; Environmental Rating: IP66; IP67; IP69K
Color: RGBW; Non-Cascadable
4-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP66, IP67, IP69K |
| Display | No |
| Supply Voltage | 18-30 V dc |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | FDA Copolyester |
| Indication | Yes |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Communication Protocol |
| Number Of Colors | Programmable |
| Product Size (Mm) | 27 |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGBW |
| Animation Option 1 | IO-Link Controlled |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 2200 |
| Dimming Option | IO-Link Controlled |
| Wire Selectable Function | Programmable |
| Number Of Input Pins/Conductors | 4 |
| Input Type | Communication Protocol |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 45 |
| Illuminated Length (Lxwxh Mm) | 1130.0 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 27.0 x 1183.5 |
| Environmental Rating | IP66; IP67; IP69K |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Window Material | Copolyester Heavy Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| Feature: Illuminated | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | Yes |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 12/07/2024 |
