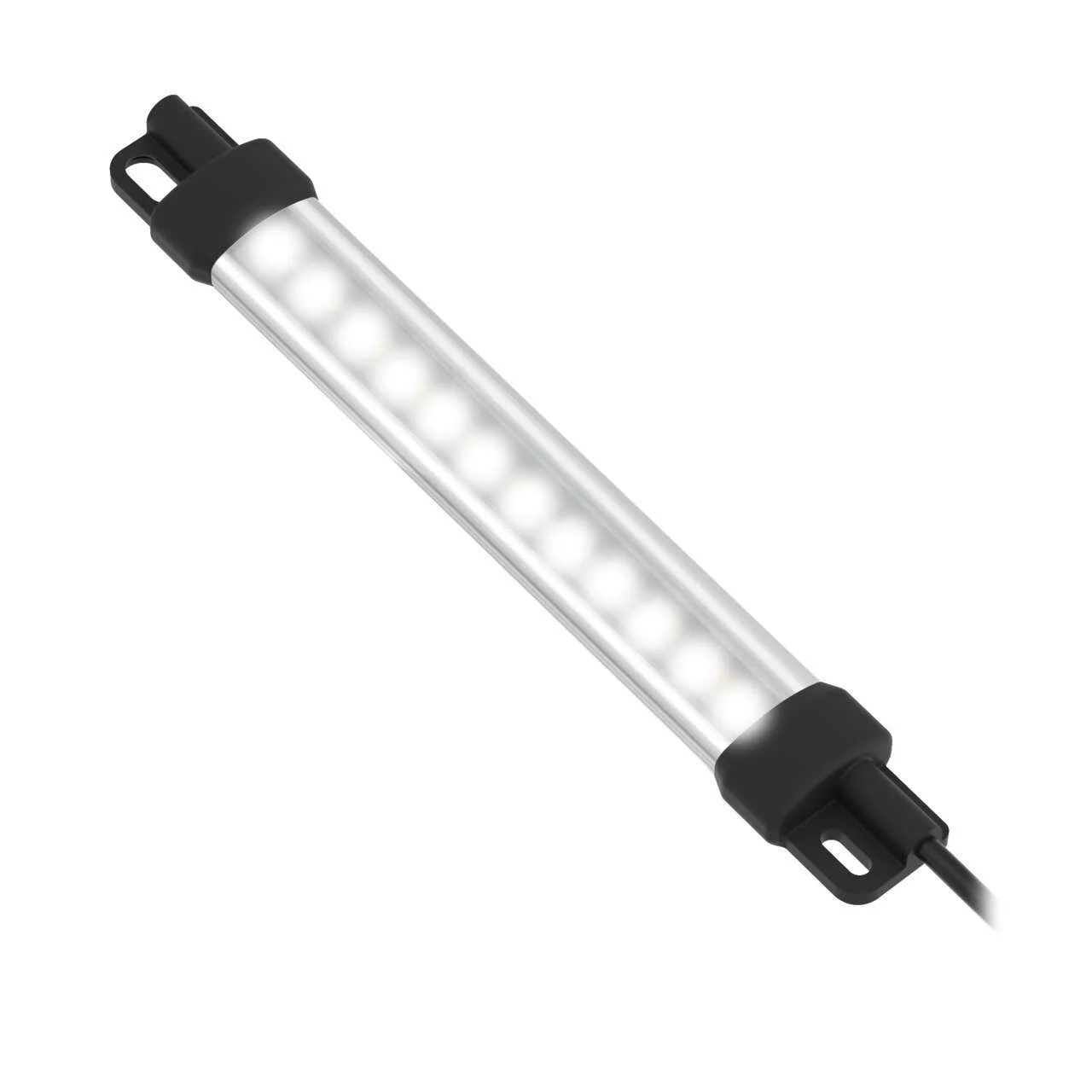

Banner Engineering WLS15HXDW0360LS24QPBSZ
WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 360 mm
Voltage: 24 V dc; Environmental Rating: IP65
Color: DW; Non-Cascadable
150 mm (6 in) 4-pi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLS15 High Intensity Light Strip; Light Diffuse Window; Length: 360 mm
Voltage: 24 V dc; Environmental Rating: IP65
Color: DW; Non-Cascadable
150 mm (6 in) 4-pin M12 PVC Pigtail QD
BSZ NON-UL
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Cable Length (M) | 0.15 |
| Ip Rating | IP65 |
| Display | No |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 15 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Connection | Pigtail QD |
| Lumens Color 1 | 750 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Max Current Color (Ma) | 360 |
| Dimming Option | High-Low-Off |
| Number Of Input Pins/Conductors | 4 |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 286.4 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 360.0 x 30.6 x 15.5 |
| Eye Shield | No |
| Storage Temp (C) | -40 to 70 |
| Primary Window Material | Polycarbonate Diffused |
| Secondary Material | Polyamide |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
