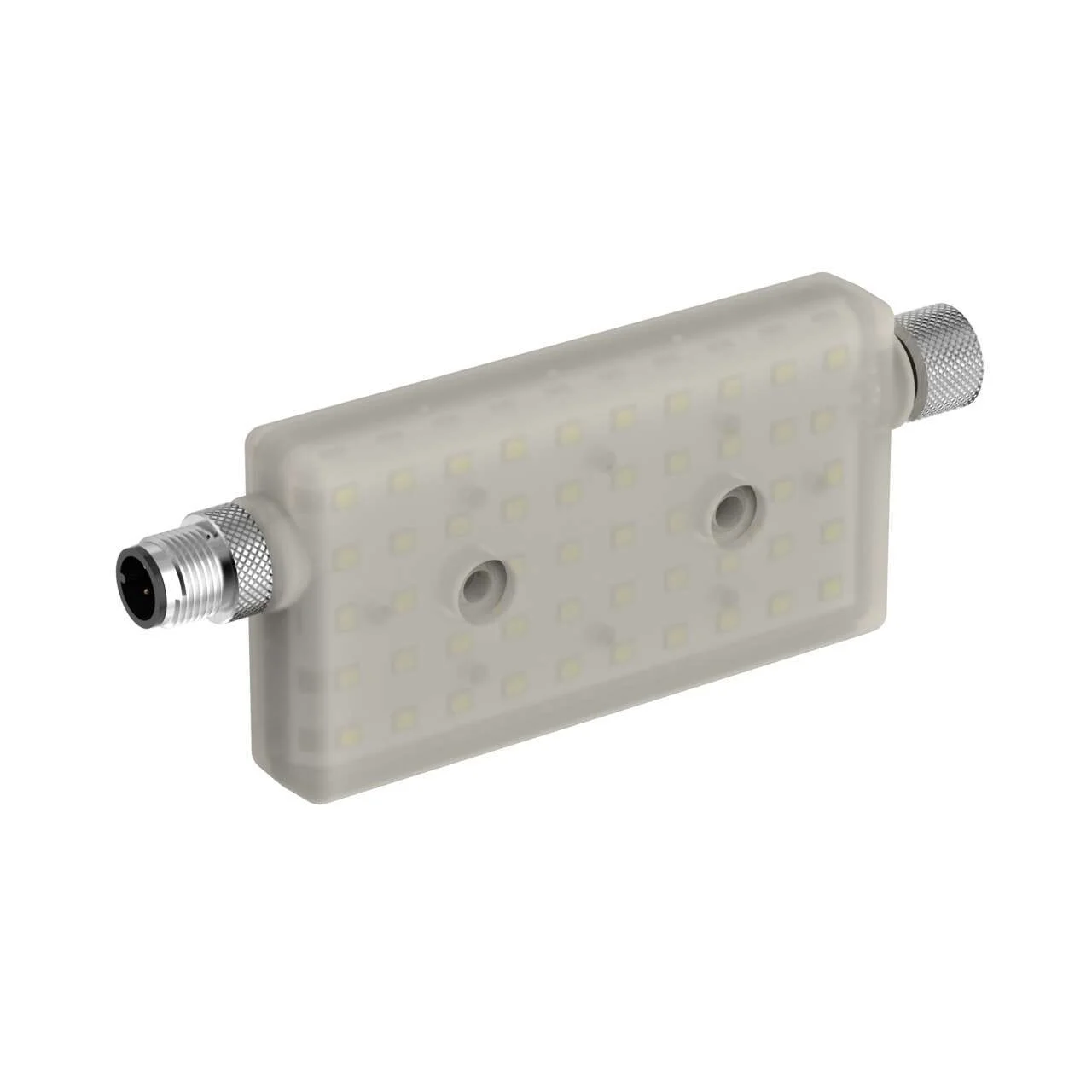

Banner Engineering WLR95RQ
WLR95 Series: Compact Area Light
12-30 V dc; Housing: TPU; IP65, IP67, IP68
Red
4-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLR95 Series: Compact Area Light
12-30 V dc; Housing: TPU; IP65, IP67, IP68
Red
4-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65, IP67, IP68 |
| Display | No |
| C R I | 80 |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Inline |
| Primary Housing Material | TPU |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 95 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 620 nm |
| Max Current Color (Ma) | 500 |
| Dimming Option | High-Low-Off |
| Number Of Input Pins/Conductors | 4 |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 49.0 x 94.0 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | Yes |
| Feature: Chemical Resistant | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
