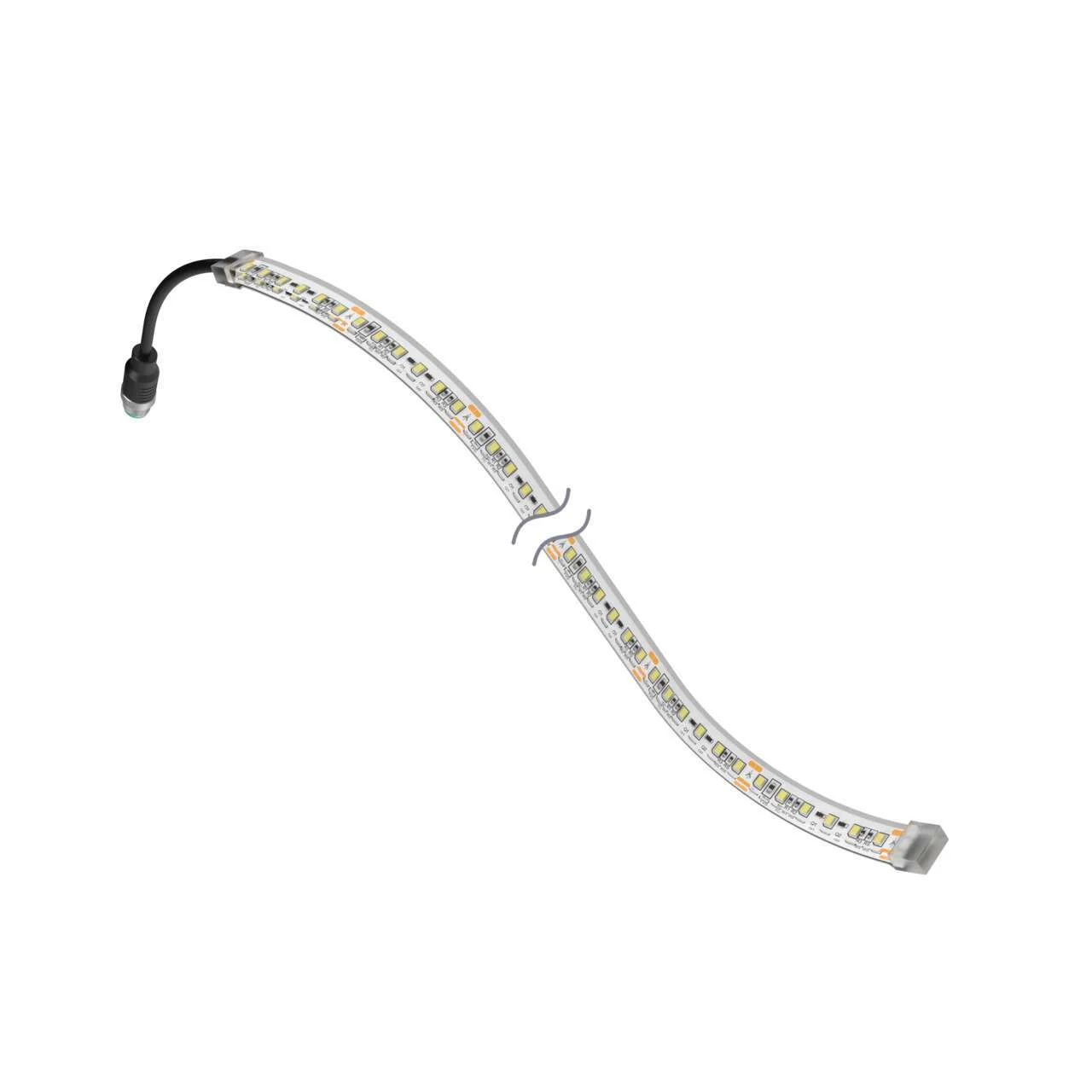

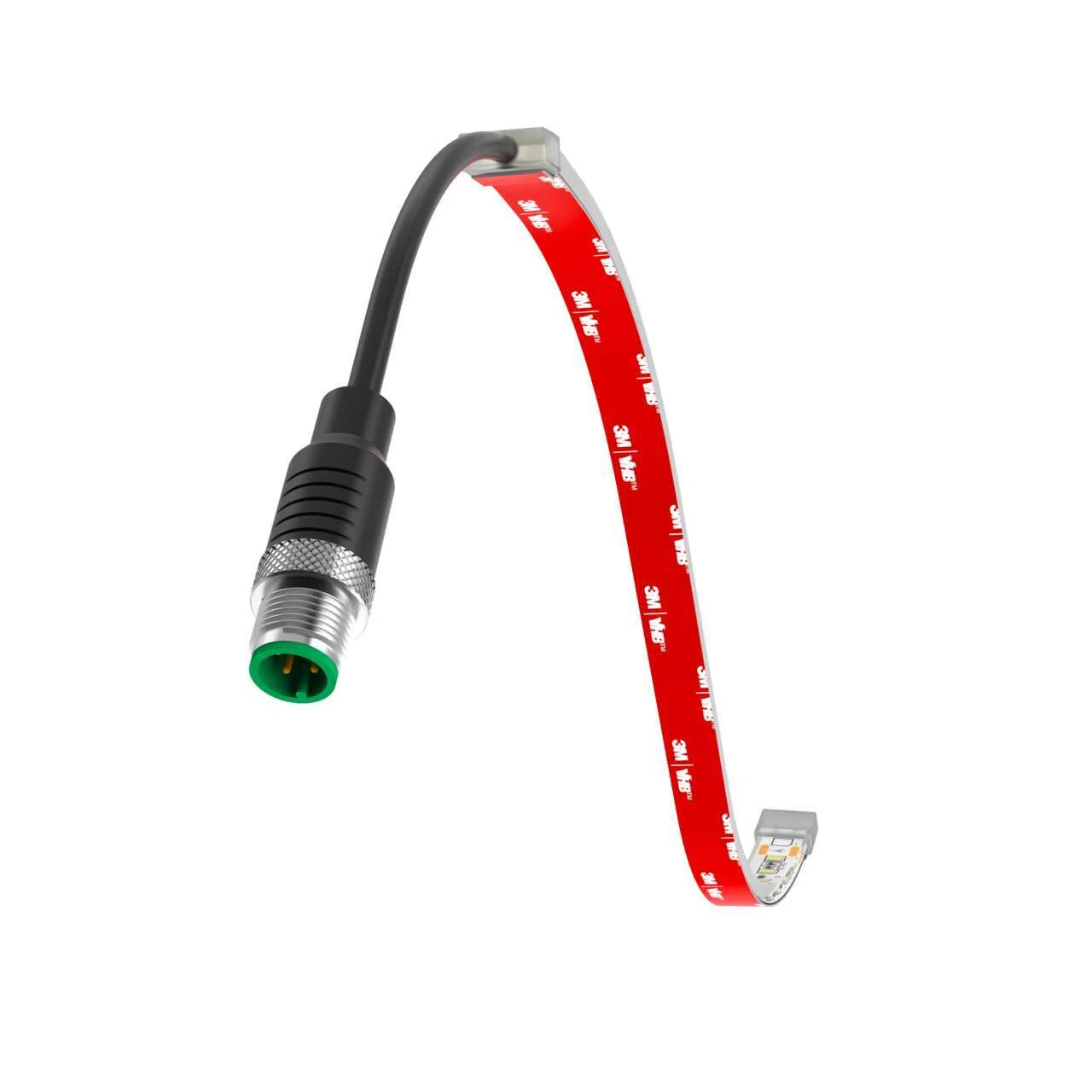

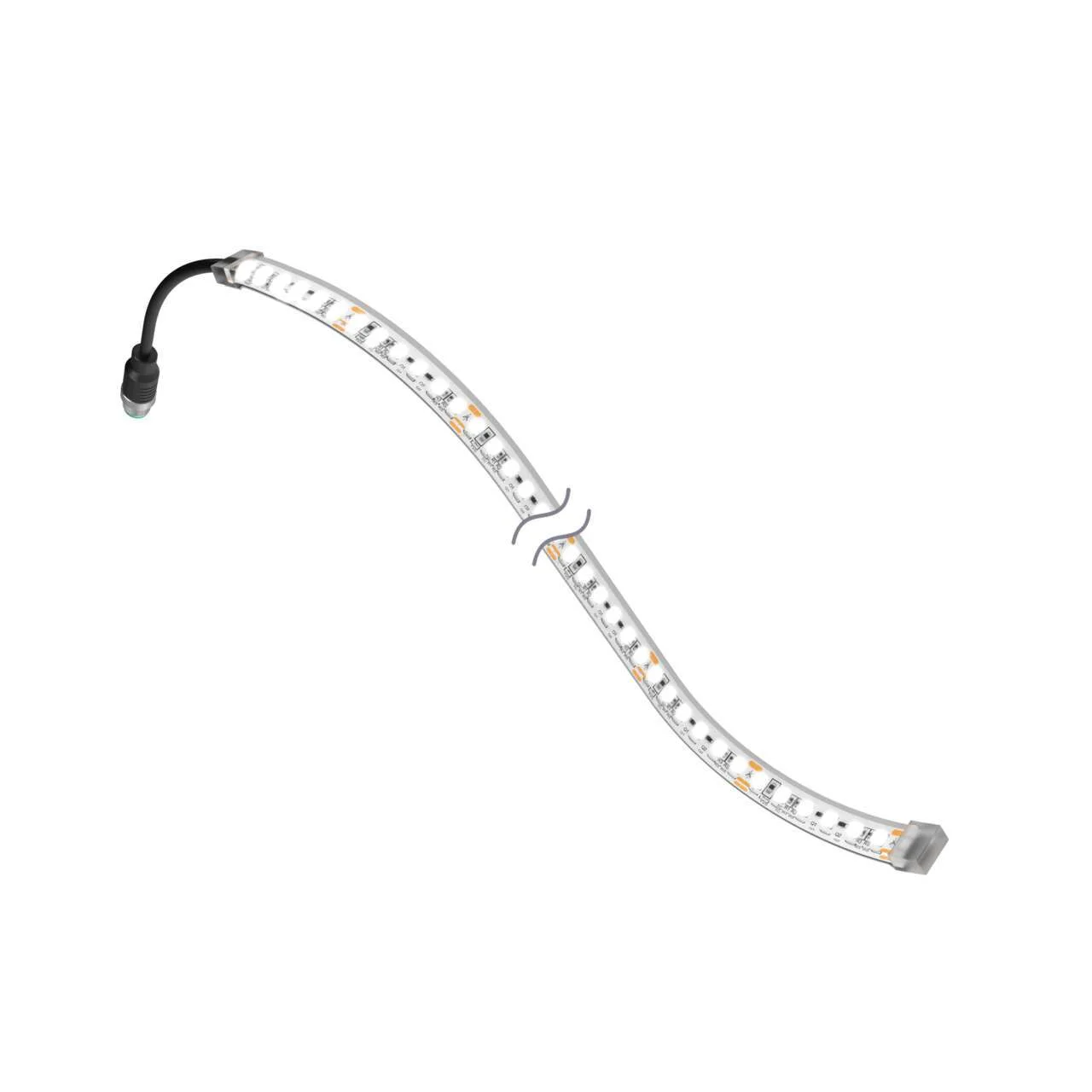

Banner Engineering WLF12XW2000S24QP
WLF12 Flexible Strip: 2000 mm
24 V dc; IP66, IP67, IP69K
Daylight White; Clear; Non-Cascadable
150 mm (6 in) 4-pin M12 PVC Pigtail QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLF12 Flexible Strip: 2000 mm
24 V dc; IP66, IP67, IP69K
Daylight White; Clear; Non-Cascadable
150 mm (6 in) 4-pin M12 PVC Pigtail QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 0.15 |
| Ip Rating | IP66, IP67, IP69K |
| Display | No |
| C R I | 80 |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Housing Style | Flexible Linear Strip |
| Primary Housing Material | Silicone |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Number Of Colors | 1 |
| Product Size (Mm) | 12 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Connection | Pigtail QD |
| Lumens Color 1 | 1900 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Max Current Color (Ma) | 933 |
| Dimming Option | PWM |
| Number Of Input Pins/Conductors | 4 |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 2000 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 2025 X 12,8 X 6,4 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 45 |
| Min Op. Temperature (C) | -20 |
| Storage Temp (C) | -35 to 70 |
| Primary Window Material | Clear Silicone |
| Secondary Material | VHB Tape |
| Illumination Switch Function | O=OFF; I=ON, PWM 2 Wire |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
| Eplan Status | Published |
