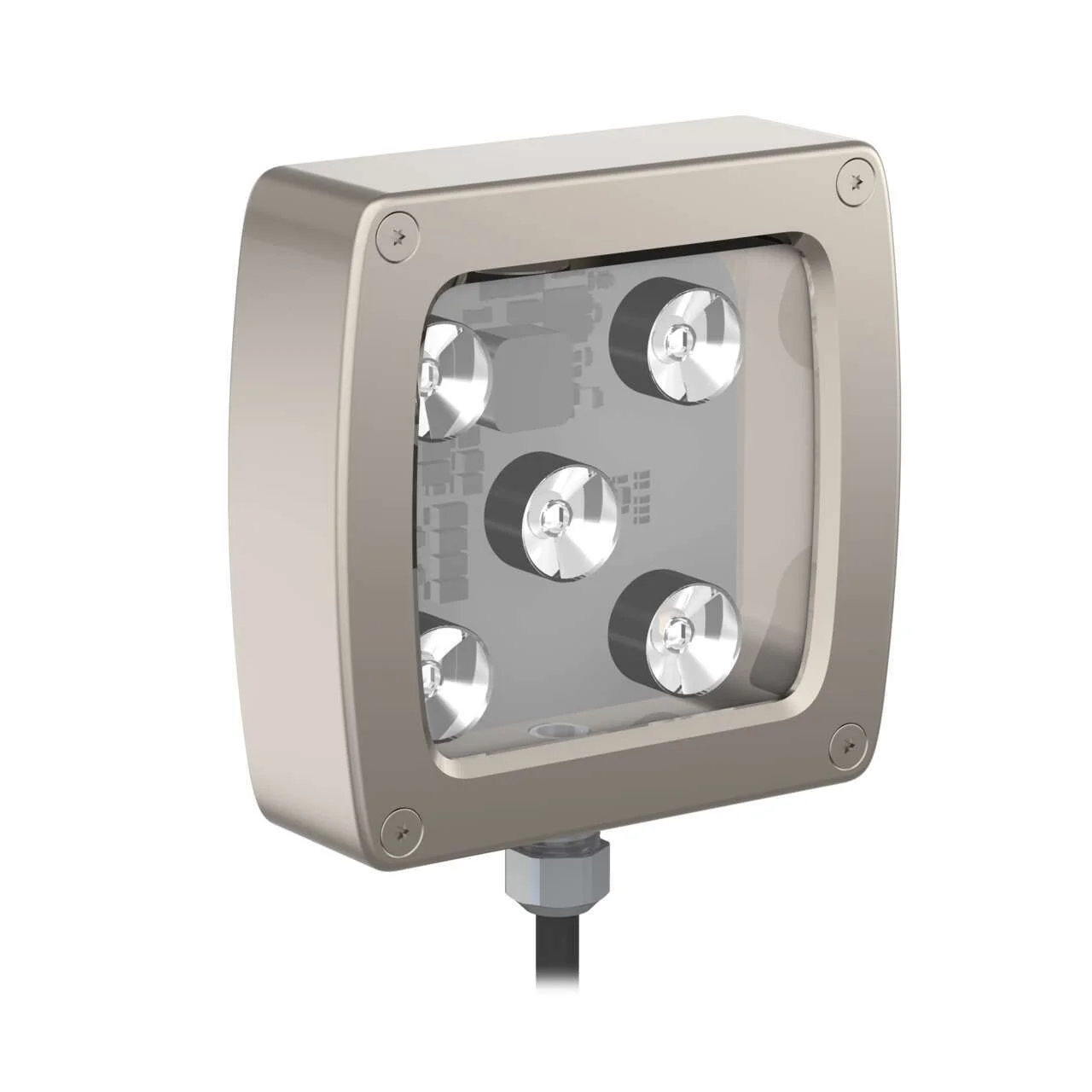

Banner Engineering WLC90WL30PWM
WLC90 Work Light; Dimensions: 90×90 mm; PWM Dimming
Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K
Color: White; 30 Deg Lens; Window: Polycarbonate
2 m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLC90 Work Light; Dimensions: 90×90 mm; PWM Dimming
Voltage: 12-30 V dc; Environmental Rating: IP68g, IP69K
Color: White; 30 Deg Lens; Window: Polycarbonate
2 m (6.5 ft) Integral Cable; Side exit
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP67, IP68, IP68g, IP69K |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Rectangular |
| Primary Housing Material | Aluminum |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 90 |
| Color Technology | Standard LED |
| Color Option 1 | Cool White |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 700 |
| Color 1 Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Dimming Option | PWM |
| Number Of Input Pins/Conductors | 4 |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 65.0 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 91.0 x 103.7 x 28.2 |
| Environmental Rating | IP67; IP68; IP68g; IP69K |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 70 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Lens Focusing Angle/Fov (Degrees) | 30 |
| Primary Window Material | Polycarbonate Clear |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | Yes |
| Feature: Illuminated | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
| U S B | No |
