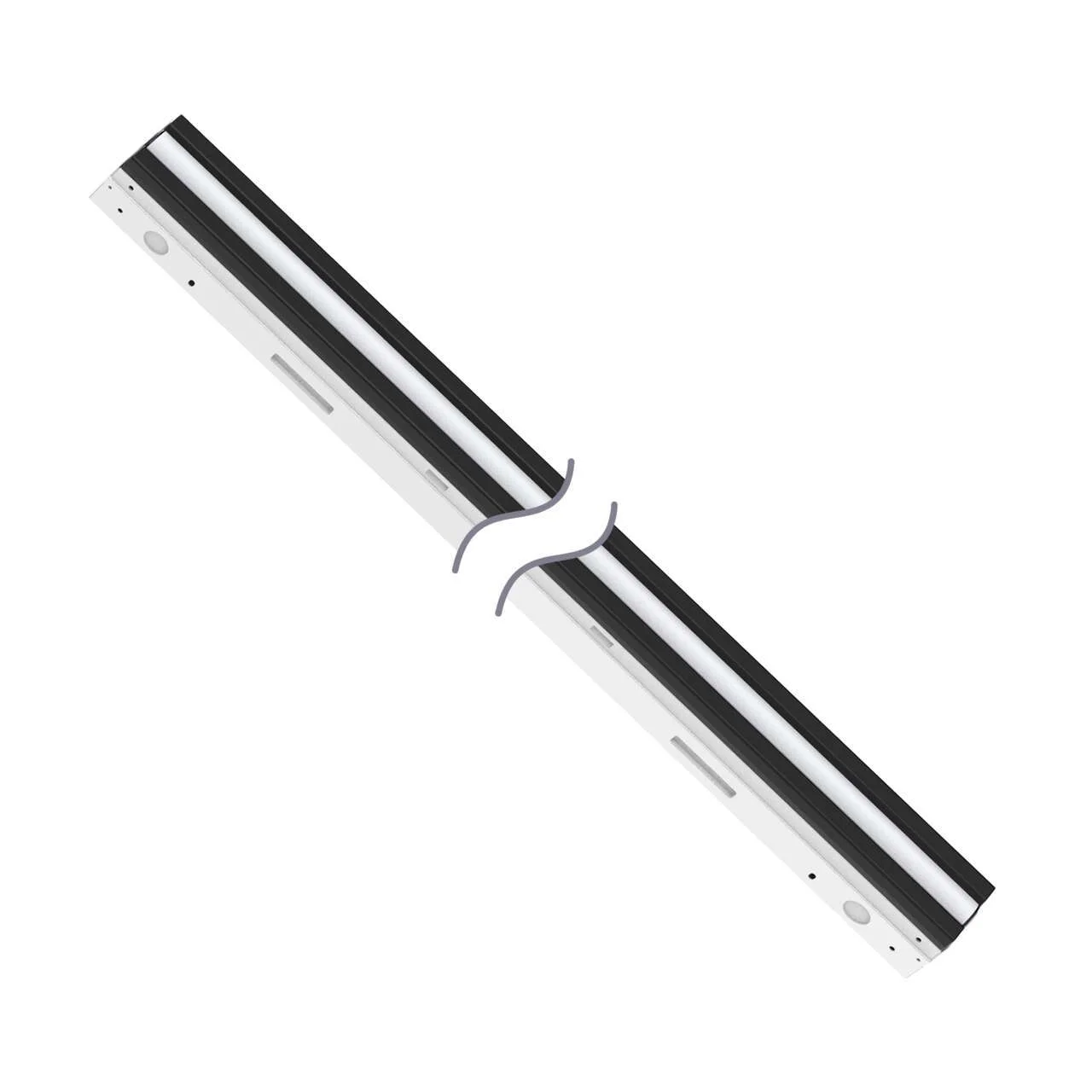

Banner Engineering WLB72IZCW1200D25ACT
WLB72 Inspection Light Bar
Length: 1200 mm; Environ. Rating: IP20
Voltage: 120-277 V ac; 0-10 V dc Analog Dimming
Color: Daylight White; 80 CRI; 25 mm Diffuse w…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WLB72 Inspection Light Bar
Length: 1200 mm; Environ. Rating: IP20
Voltage: 120-277 V ac; 0-10 V dc Analog Dimming
Color: Daylight White; 80 CRI; 25 mm Diffuse window
Conduit Openings – No Power cord; Cascadable
Specification
| Power | AC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP20 |
| Display | No |
| C R I | 80 |
| Supply Voltage | 120-277 V ac |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | Galvanized Steel |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 72 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Connection | Conduit |
| Lumens Color 1 | 4225 |
| Color 1 Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Max Current Color (Ma) | 850 |
| Dimming Option | 0-10 V dc |
| Number Of Input Pins/Conductors | 5 |
| Input Type | AC |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 1200 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 1222.0 x 72.0 x 68.0 |
| Environmental Rating | IP20 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | White |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | Yes |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
| U S B | No |
