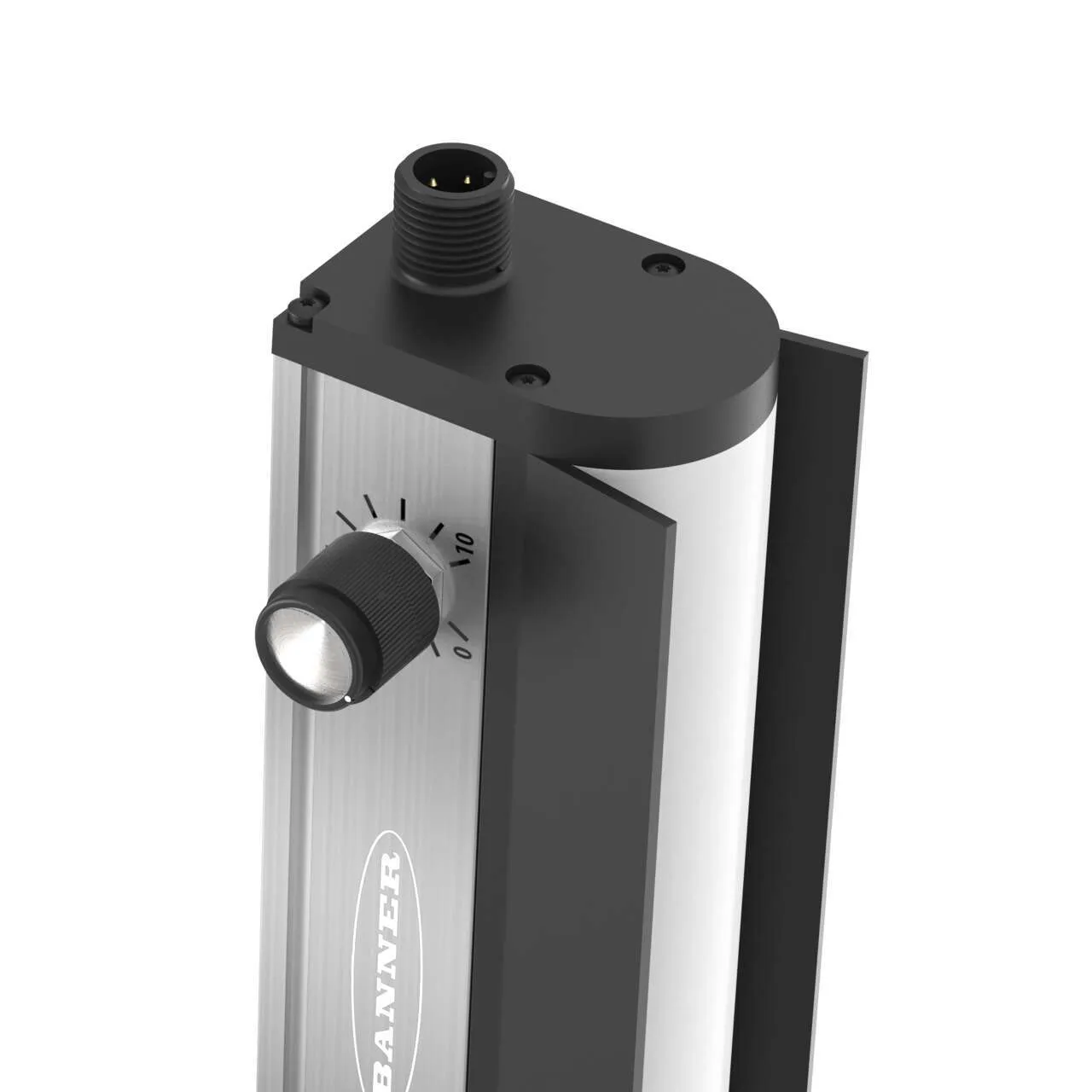

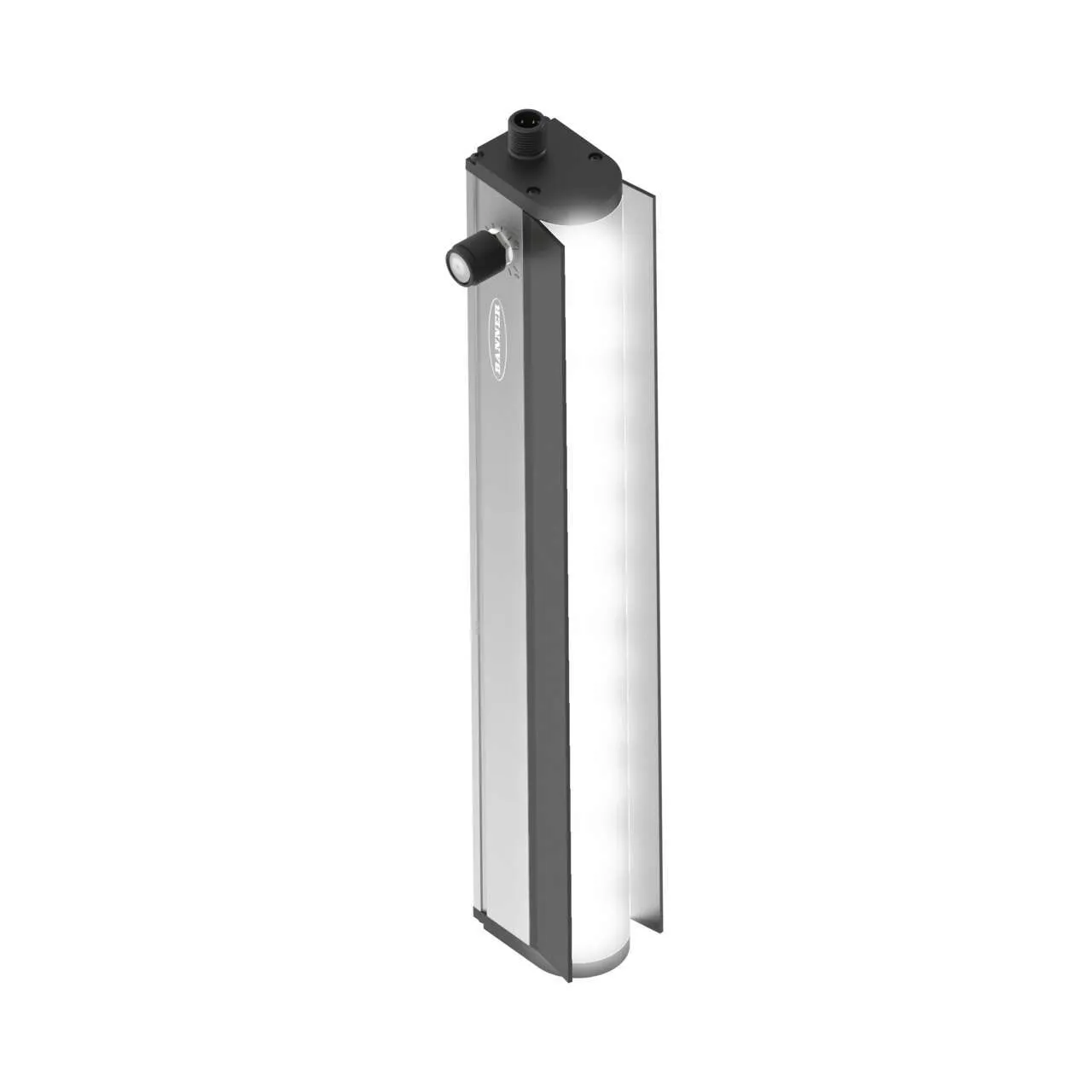

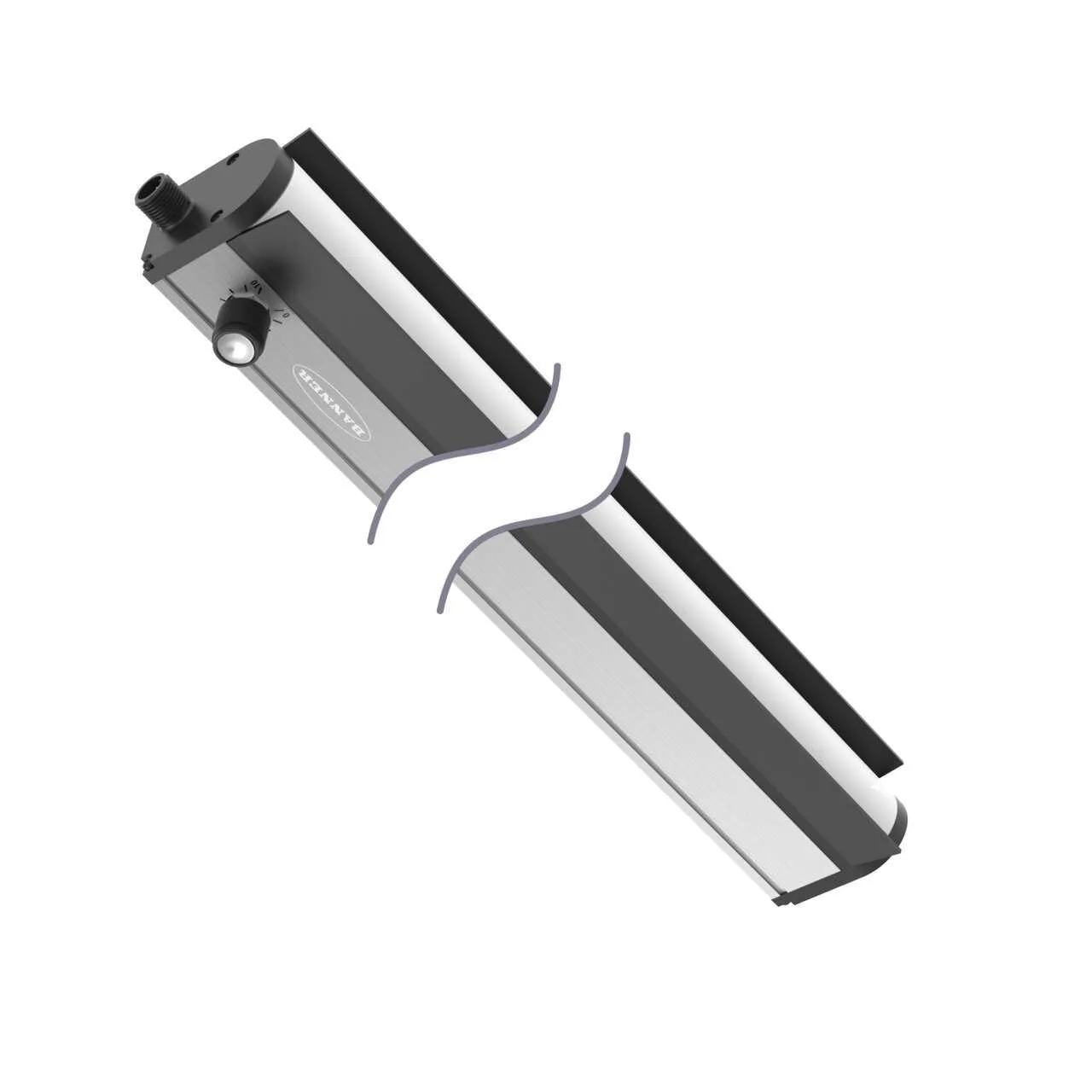

Banner Engineering WLB32EX1130EPQ

WLB32 Industrial PoE LED Light with Intensity Adjustment; Length: 1130 mm. Part number: 815430. model: WLB32EX1130EPQ. part_number: 815430. list_price: 347 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/217743.pdf. BAN_Primary_Housing_Material: Aluminum. BAN_Connection: Integral QD. BAN_Power: PoE. BAN_LI_IlluminatedDimension: 1130.0. BAN_LI_Switch_Function: 11 position knob, OFF, 1-10. BAN_LI_EyeShield: Yes. BAN_CommProtocols_PoE: Yes. BAN_CommProtocols_ModbusRTU: No. Power: PoE. PFM Input: No. IP Rating: IP50. Display: No. Power Over Ethernet (PoE): Yes. Supply Voltage: 42.5-57 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Aluminum. Indication: No. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 1. Product Size (mm): 32. Color Technology: Standard LED. Color Option 1: Daylight White. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 3000. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 5000K (Daylight). Max Current Color (mA): 590. Dimming Option: Dimmer Knob. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 1130.0. Physical Dimensions (LxWxH or DxH mm): 1155.0 x 38.3 x 48.0. Eye Shield: Yes. Storage Temp (C): -25 to 70. Primary Window Material: Polycarbonate Diffused. Illumination Switch Function: 11 position knob, OFF, 1-10. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: No. Feature: Chemical Resistant: No. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Modbus RTU: No. Wireless: No. USB: No. EPLAN Status: Published. EPLAN Original Sent Date: 01/05/2024
