Banner Engineering WLB32C1130EPBQ

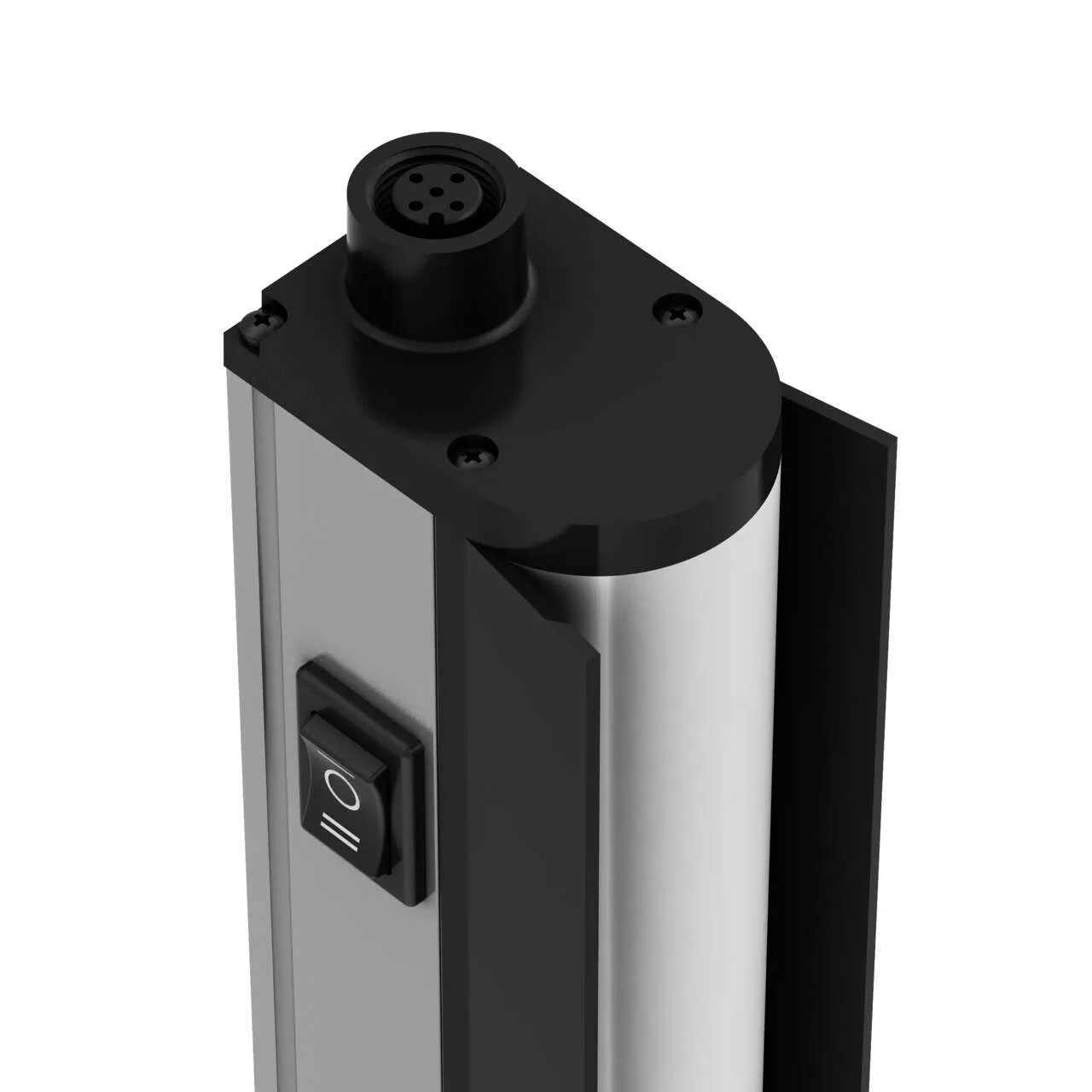

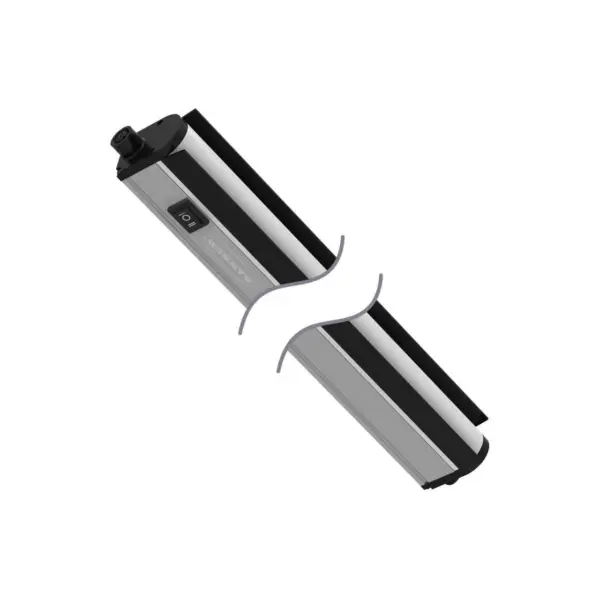

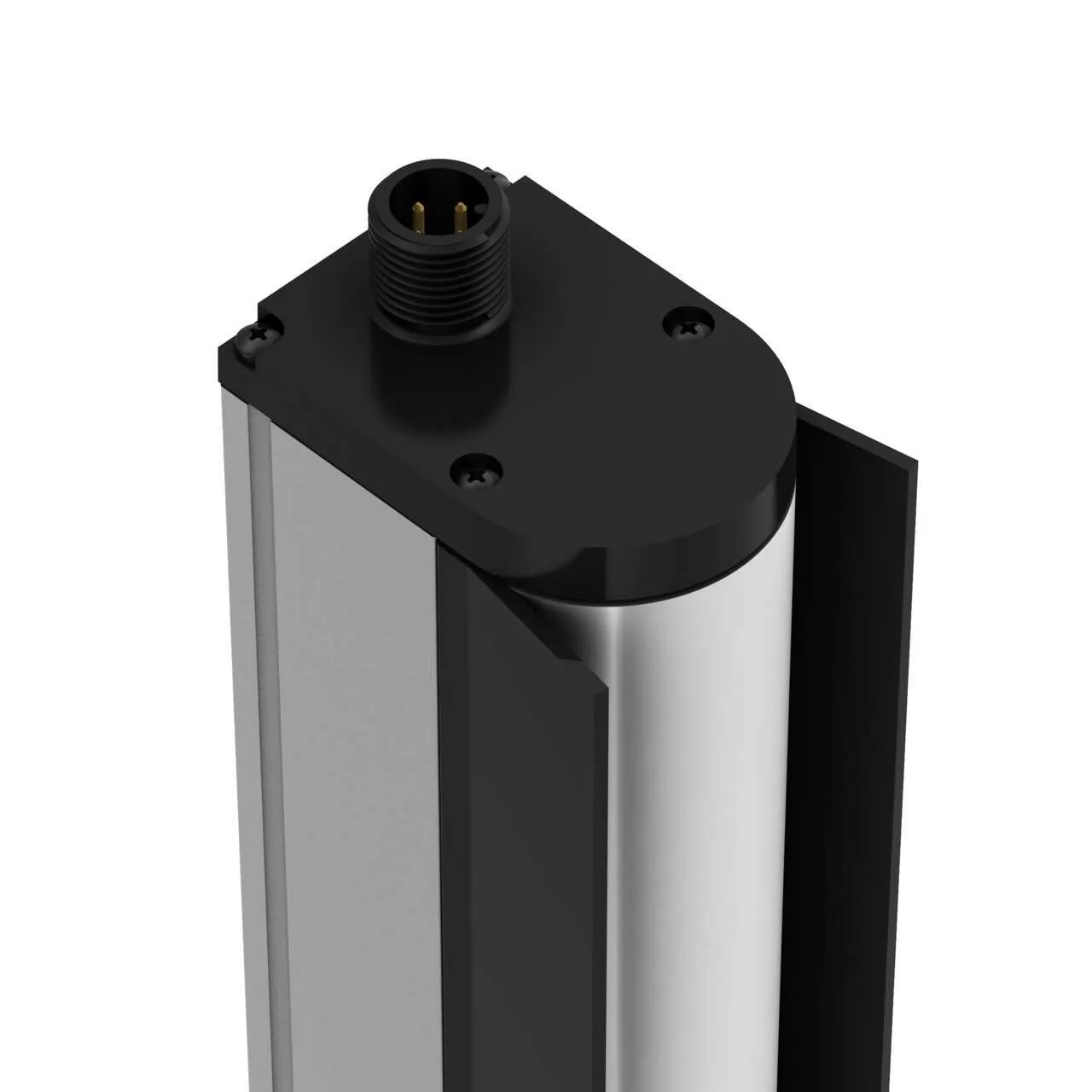

WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm. Part number: 97823. model: WLB32C1130EPBQ. part_number: 97823. list_price: 344 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/176313.pdf. BAN_Primary_Housing_Material: Aluminum. BAN_Connection: Integral QD. BAN_Power: DC. BAN_LI_IlluminatedDimension: 1130.0. BAN_LI_Switch_Function: I=Low; O=OFF; II=High. BAN_LI_EyeShield: Yes. BAN_CommProtocols_PoE: No. BAN_CommProtocols_ModbusRTU: No. Power: DC. PFM Input: No. Non-Illuminated: No. IP Rating: IP50. Display: No. Power Over Ethernet (PoE): No. Supply Voltage: 12-30 V dc. Item Status: RELEASED. Housing Style: Linear Strip. Primary Housing Material: Aluminum. Indication: No. Illumination: Yes. Mounting Thread: No Thread. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 1. Product Size (mm): 32. Color Technology: Standard LED. Color Option 1: Daylight White. Animation Option 1: Solid On. Connection: Integral QD. Lumens Color 1: 3000. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 5000K (Daylight). Max Current Color (mA): 3200. Dimming Option: High-Low-Off. Number of Input Pins/Conductors: 4. I/O Block Compatible: No. Illuminated Length (LxWxH mm): 1130.0. Physical Dimensions (LxWxH or DxH mm): 1166.0 x 38.3 x 48.0. Environmental Rating: IP50. Eye Shield: Yes. High Temperature (up to 100 C): 70. Min Op. Temperature (C): -40. Storage Temp (C): -40 to 70. Primary Window Material: Polycarbonate Diffused. Illumination Switch Function: I=Low; O=OFF; II=High. Feature: Washdown Rated: No. Feature: Audible: No. Feature: Cascade: Yes. Feature: Chemical Resistant: No. Feature: Illuminated: No. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. Modbus RTU: No. Wireless: No. USB: No. EPLAN Status: Published. EPLAN Original Sent Date: 12/07/2024
