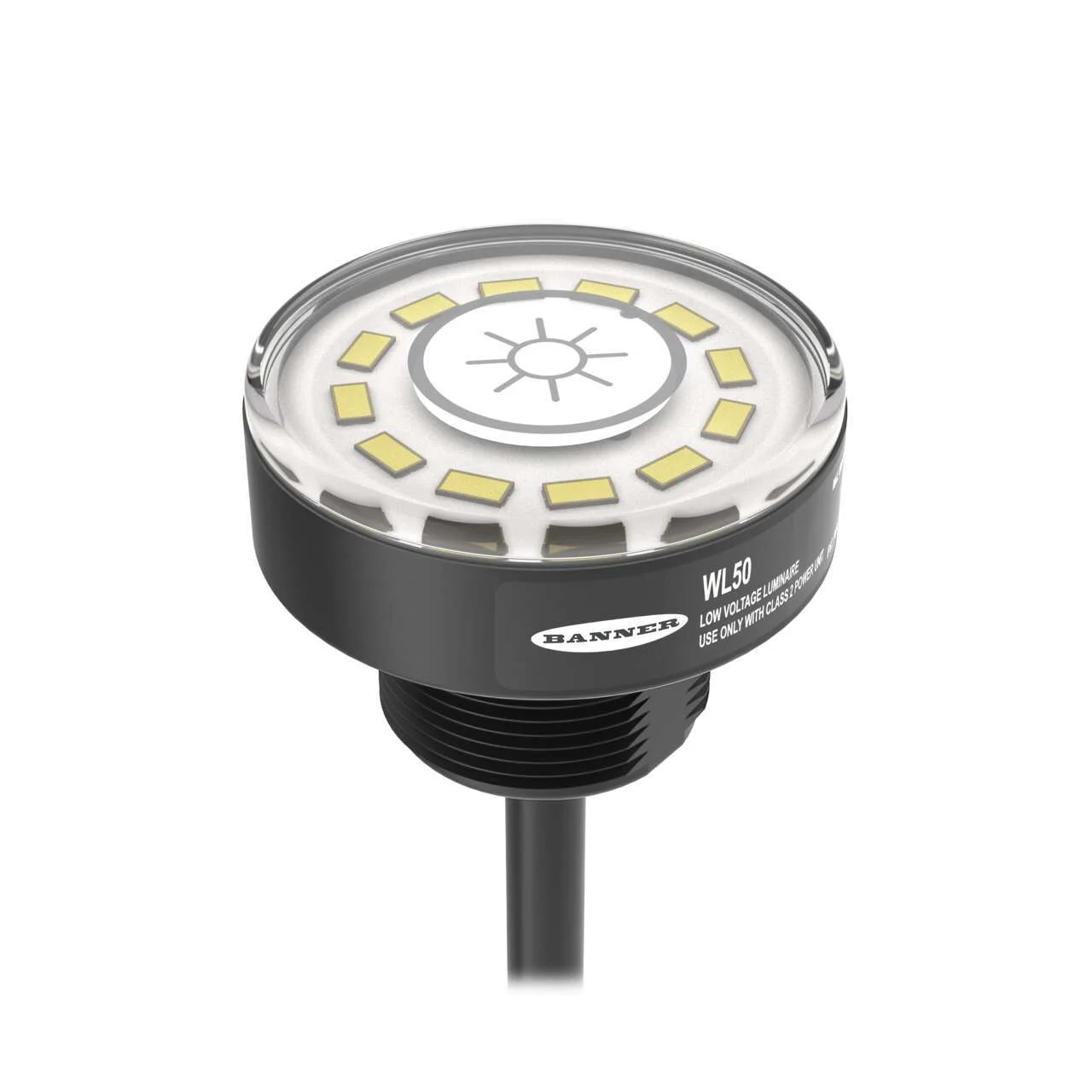

Banner Engineering WL50-3TW W/30
WL50-3 Work Light, Touch, PWM Dimming
Voltage: 12-30 V dc; IP65/67/69K
Color: Daylight White: 5K
M30 Threaded Base, 9 m (30 ft) Integral Cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WL50-3 Work Light, Touch, PWM Dimming
Voltage: 12-30 V dc; IP65/67/69K
Color: Daylight White: 5K
M30 Threaded Base, 9 m (30 ft) Integral Cable
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 9 |
| Ip Rating | IP65, IP67, IP69K |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Base Mount – Flat Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 50 |
| Color Technology | Standard LED |
| Color Option 1 | Daylight White |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 300 |
| Color 1 Wavelength/Color Temp/Coordinates | 5000K (Daylight) |
| Max Current Color (Ma) | 250 |
| Dimming Option | PWM and Capacitive Touch |
| Number Of Input Pins/Conductors | 3 |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 36.5 |
| Environmental Rating | IP65; IP67; IP69K |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Latching |
| Primary Window Material | Polycarbonate Clear |
| Illumination Switch Function | O=OFF; I=ON, PWM 3 Wire |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Wireless | No |
