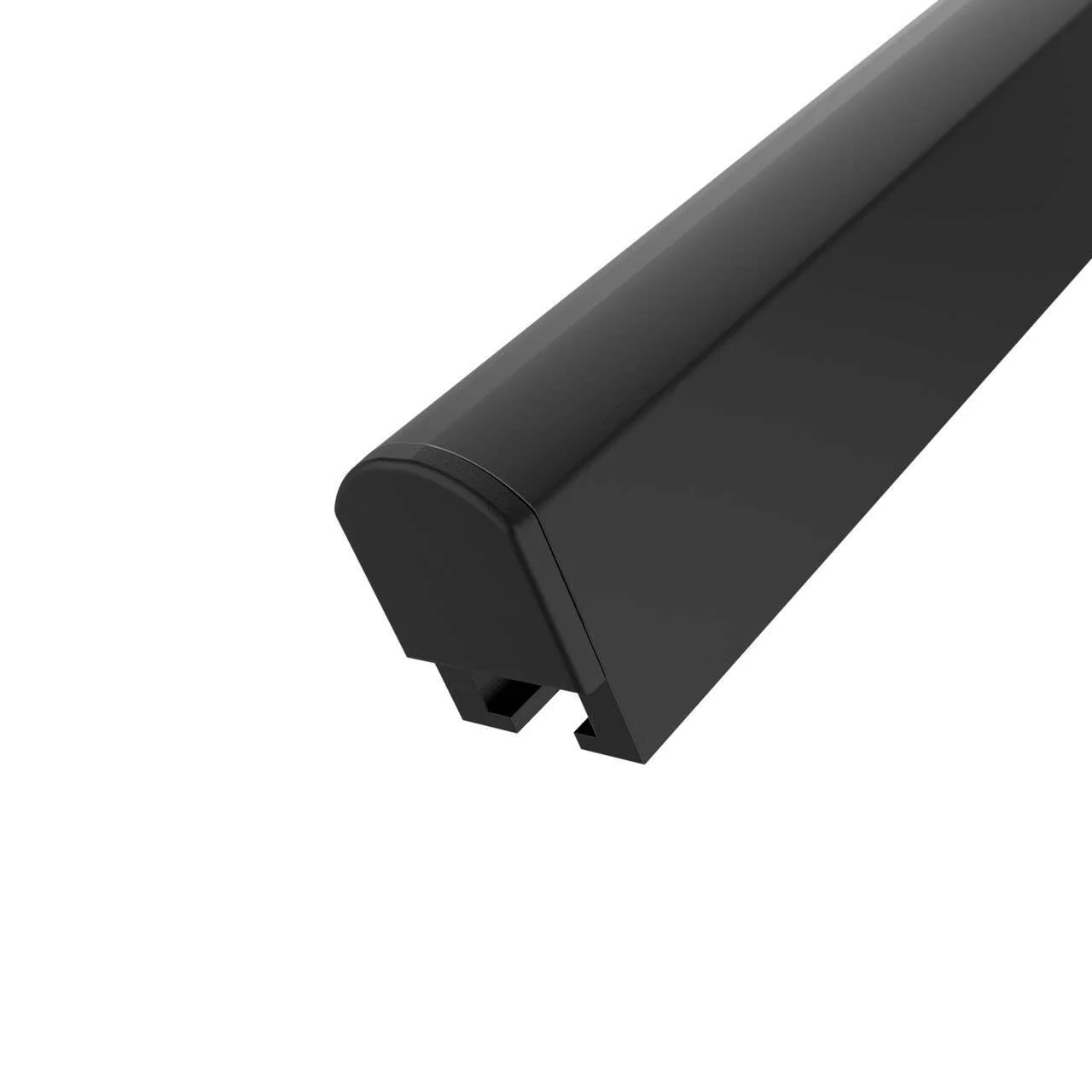

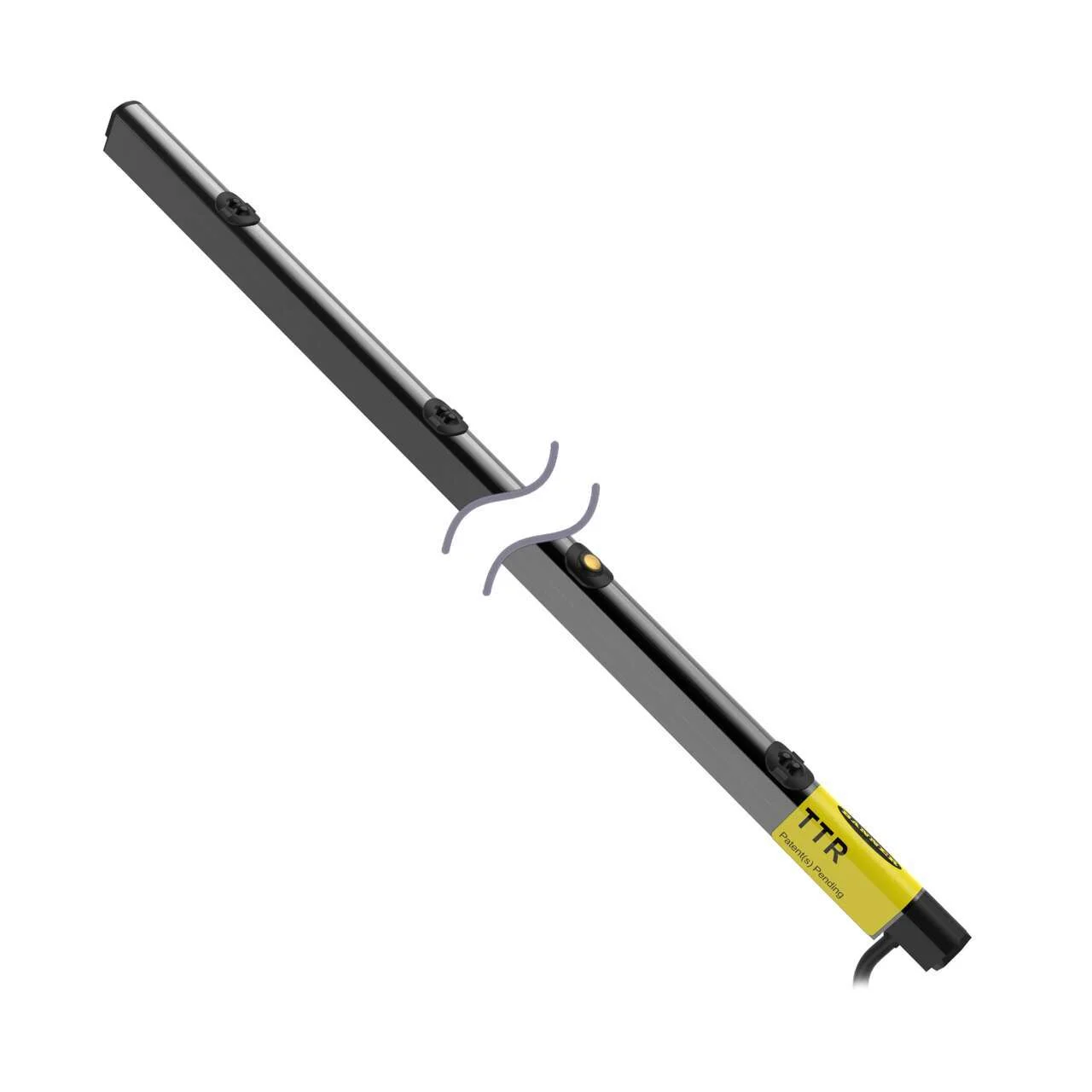

Banner Engineering TTR914APSC8T-0.5Q3-CTR-M8
TTR Series 8 Beam Sensor Array 36.0 inch Between Frame
Beam Spacing: 108 mm; Standard Gain Range: 120 mm
Output: LO PNP; Input: 22-30 V dc
0.5 m (1.6 ft) M8 Mal…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TTR Series 8 Beam Sensor Array 36.0 inch Between Frame
Beam Spacing: 108 mm; Standard Gain Range: 120 mm
Output: LO PNP; Input: 22-30 V dc
0.5 m (1.6 ft) M8 Male Thread Snap Connector Endcaps T: T-slot Mounting
Specification
| Last Beam Distance (To End Of Housing)(Mm) | 73 |
|---|---|
| Cable Length (M) | 0.5 |
| Ip Rating | IP50 |
| Nema / Ul Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Diffuse |
| Housing Style | Roller Conveyor |
| End Cap Type | T: T-Slot Mounting |
| Primary Housing Material | Black Anodized Aluminum |
| Max Sensing Range (Mm) | 120 |
| Slot Depth/Array Length (Mm) | 914 |
| Connection | Pigtail QD |
| Quick Disconnect Type | M8 |
| Outputs | PNP |
| Slot Overall Depth (Mm) | 19 |
| Number Of Pins | 4 |
| Power Supply/Supply Voltage | 18-30 V dc |
| Output Response Time (Ms) | 1 |
| Adjustments | N/A |
| Lens Material | Polycarbonate |
| Delay At Power Up (Ms) | 1500 |
| Operation | Light Operate |
| Indicator | Indicator LEDs |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -10 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Feature: Quick Disconnect | Yes |
| Number Of Beams | 8 |
| Beam To Beam Spacing [Mm] | 108 |
| Distance To First Beam [Mm] | 79 |
