Banner Engineering TTR400BMSB4B-2.0FL-CTR

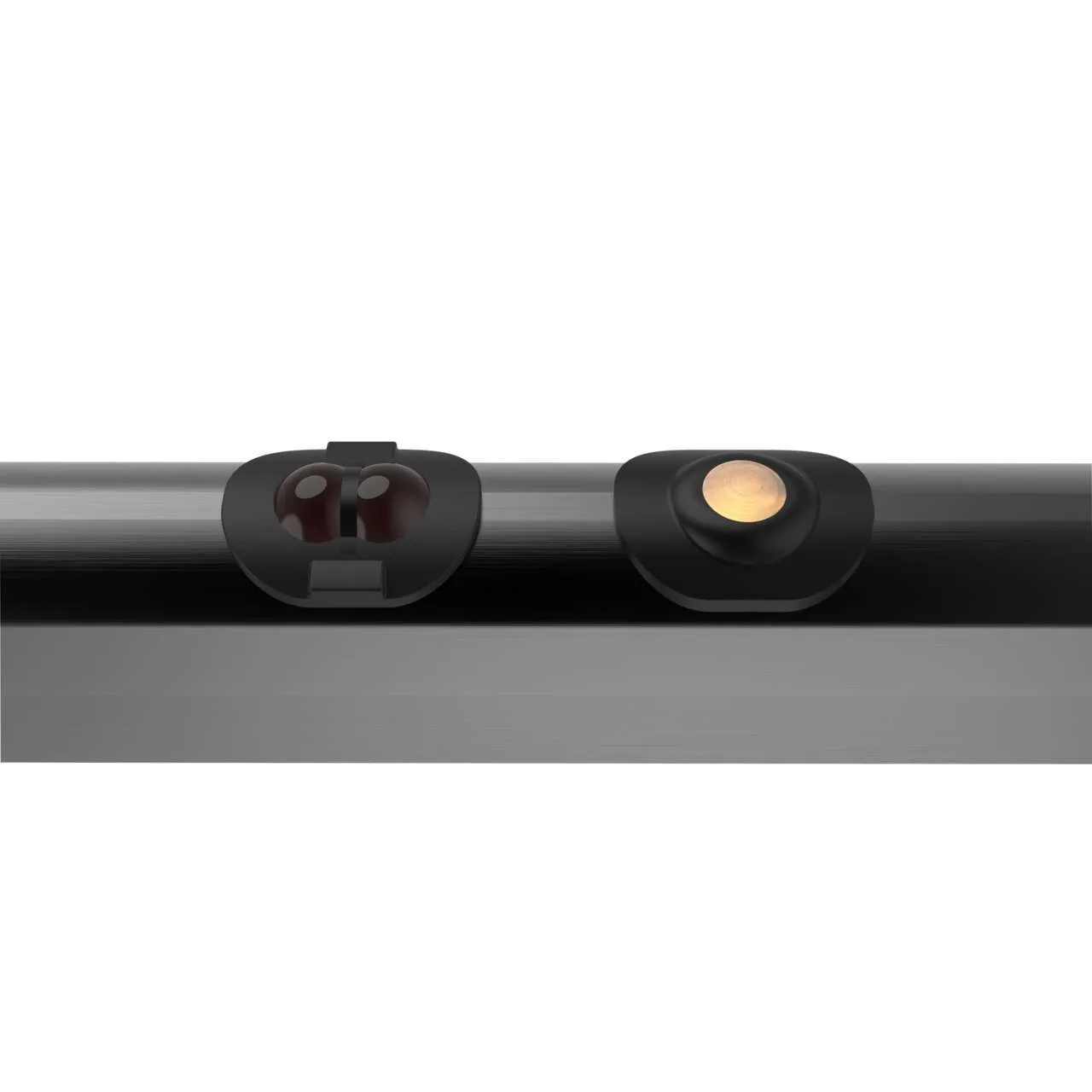

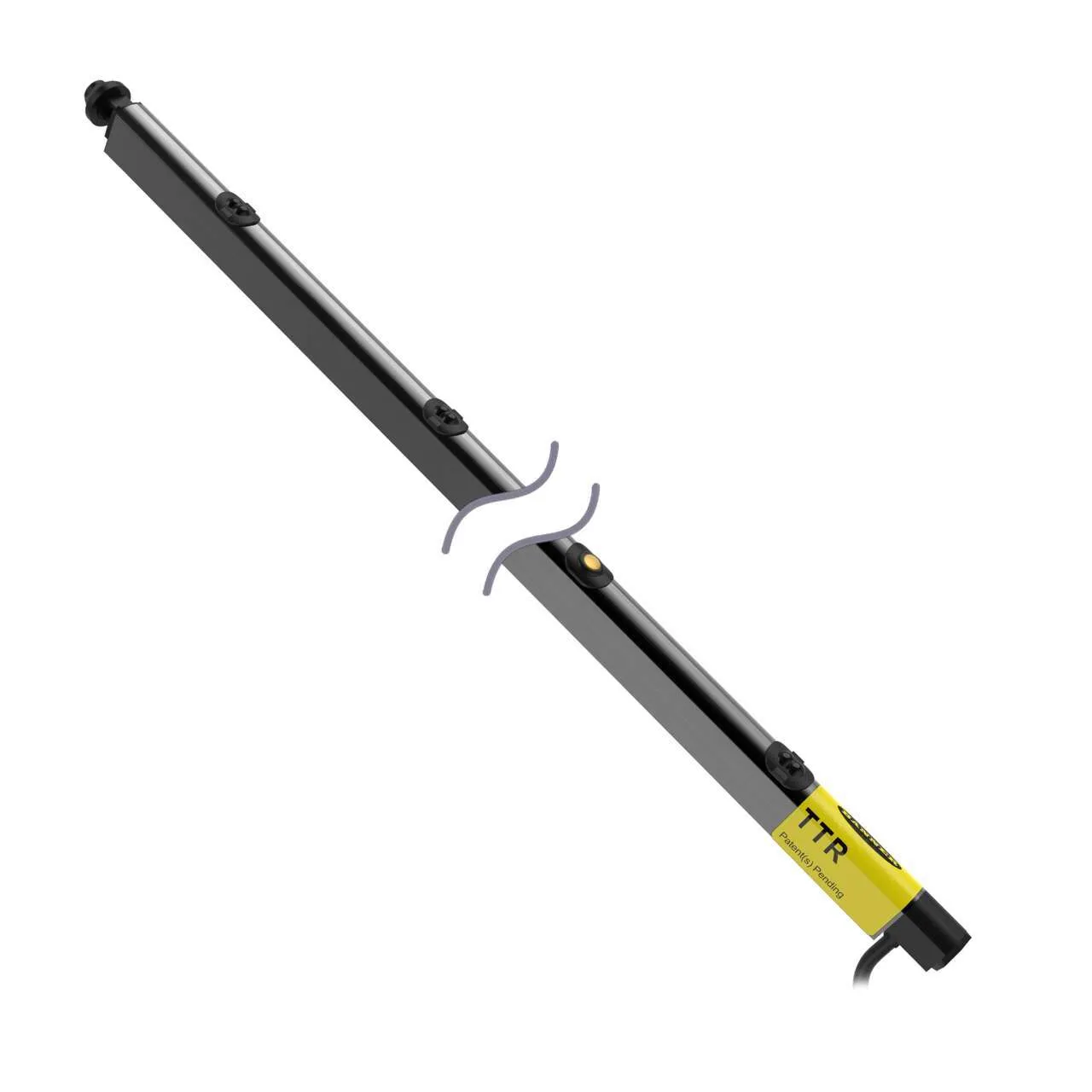

TTR Series 4 Beam Sensor Array 15.75 in Between Frame Beam Spacing: 93.1 mm; Range: 120 mm Diffuse Output: Bimodal; Input: 18-30 V dc 2 m (6.5 ft) Flying Leads B: Point Up / Hex & Round Endcap. Part n…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TTR Series 4 Beam Sensor Array 15.75 in Between Frame Beam Spacing: 93.1 mm; Range: 120 mm Diffuse Output: Bimodal; Input: 18-30 V dc 2 m (6.5 ft) Flying Leads B: Point Up / Hex & Round Endcap. Part number: 810087. Last Beam Distance (to End of Housing)(mm): 60.35. Cable Length (m): 2. IP Rating: IP50. NEMA / UL Type Rating: NEMA 4X. Item Status: RELEASED. Sensing Mode (Detailed): Diffuse. Housing Style: Roller Conveyor. End Cap Type: B: Hex Point Up / Spring 11 mm Hex – 8 mm Round. Primary Housing Material: Black Anodized Aluminum. Max Sensing Range (mm): 120. Slot Depth/Array Length (mm): 400. Connection: Cable. Outputs: PNP. Slot Overall Depth (mm): 12. Number of Pins: 4. Power Supply/Supply Voltage: 18-30 V dc. Output response time (ms): 1. Adjustments: N/A. Lens Material: Polycarbonate. Delay at Power-up (ms): 1500. Operation: Light/Dark Operate. Indicator: Indicator LEDs. Max Op. Temperature (C): 55. Min Op. Temperature (C): -10. Max Op. Relative Humidity (%): 95% @ 55°C. Feature: Quick Disconnect: No. Number of Beams: 4. Beam to Beam Spacing [mm]: 93.1. Distance to First Beam [mm]: 60.35
Specification
| Last Beam Distance (to End of Housing)(mm) | 60.35 |
|---|---|
| Cable Length (m) | 2 |
| IP Rating | IP50 |
| NEMA / UL Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Diffuse |
| Housing Style | Roller Conveyor |

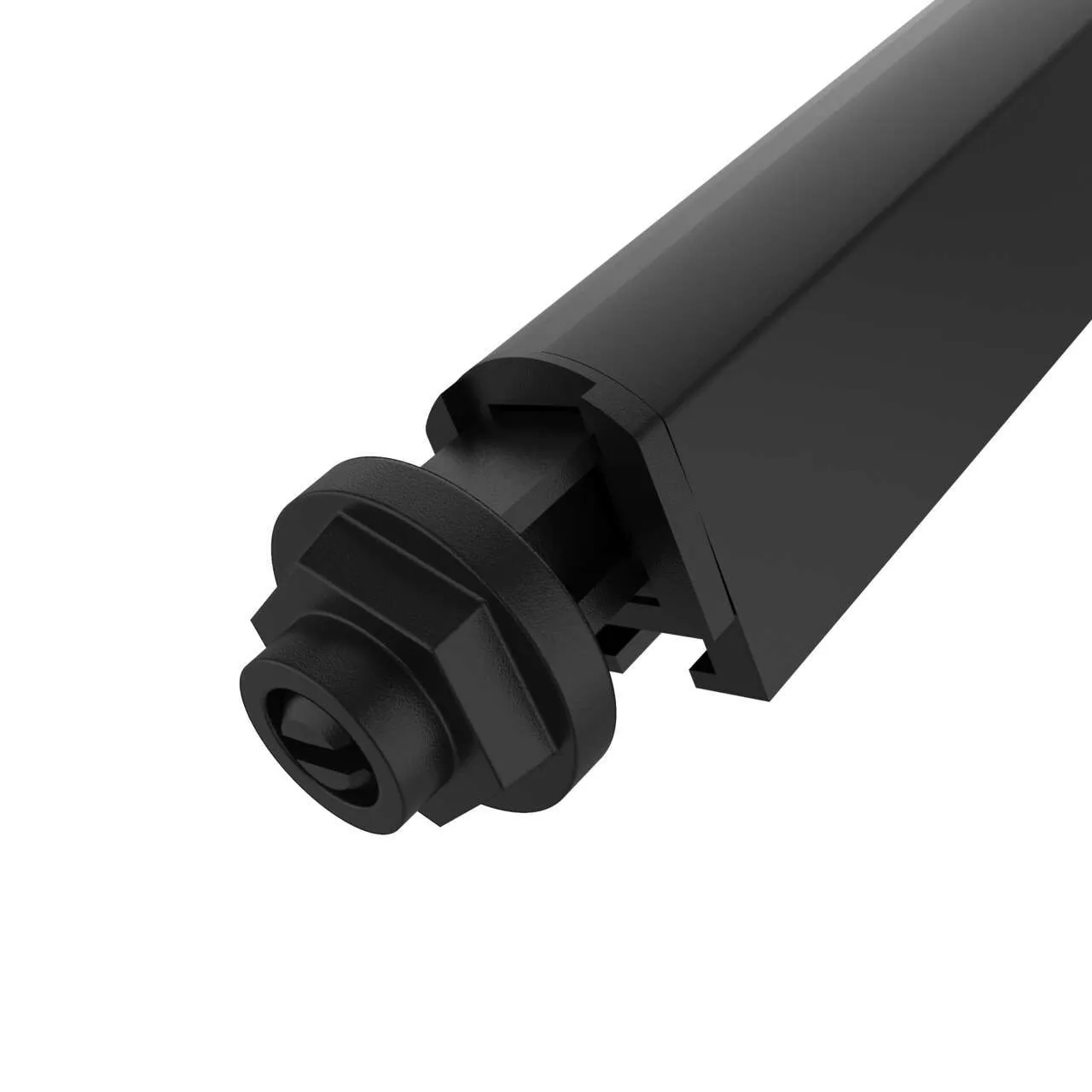

| End Cap Type | B: Hex Point Up / Spring 11 mm Hex – 8 mm Round |
| Primary Housing Material | Black Anodized Aluminum |
| Max Sensing Range (mm) | 120 |
| Slot Depth/Array Length (mm) | 400 |
| Connection | Cable |
| Outputs | PNP |
| Slot Overall Depth (mm) | 12 |
| Number of Pins | 4 |
| Power Supply/Supply Voltage | 18-30 V dc |
| Output response time (ms) | 1 |
| Adjustments | N/A |
| Lens Material | Polycarbonate |
| Delay at Power-up (ms) | 1500 |
| Operation | Light/Dark Operate |
| Indicator | Indicator LEDs |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -10 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Feature: Quick Disconnect | No |
| Number of Beams | 4 |
| Beam to Beam Spacing [mm] | 93.1 |
| Distance to First Beam [mm] | 60.35 |
