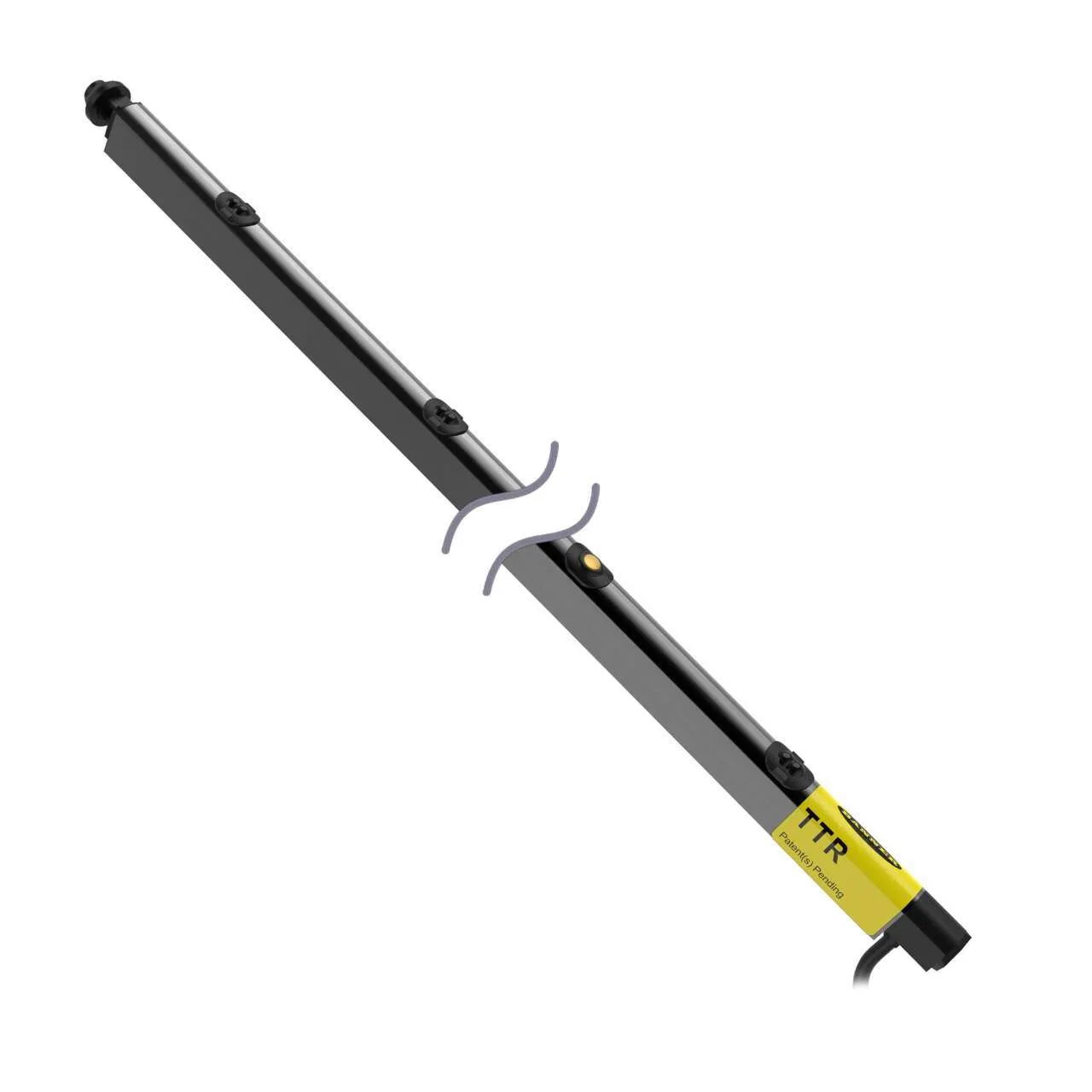

Banner Engineering TTR1143RPSD7T-1.0Q5-CTR
TTR Series 7 Beam Sensor Array 45.0 in Between Frame Beam Spacing: 162 mm; Range: 120 mm Diffuse Output: DO PNP; Input: 18-30 V dc 1 m (3.3 ft) M12 Conn. T: T-Slot Mount Endcap. Part number: 810099. L…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TTR Series 7 Beam Sensor Array 45.0 in Between Frame Beam Spacing: 162 mm; Range: 120 mm Diffuse Output: DO PNP; Input: 18-30 V dc 1 m (3.3 ft) M12 Conn. T: T-Slot Mount Endcap. Part number: 810099. Last Beam Distance (to End of Housing)(mm): 79.50. Cable Length (m): 1. IP Rating: IP50. NEMA / UL Type Rating: NEMA 4X. Item Status: RELEASED. Sensing Mode (Detailed): Diffuse. Housing Style: Roller Conveyor. End Cap Type: T: T-Slot Mounting. Primary Housing Material: Black Anodized Aluminum. Max Sensing Range (mm): 120. Slot Depth/Array Length (mm): 1143. Connection: Pigtail QD. Quick Disconnect Type: M12. Outputs: PNP. Slot Overall Depth (mm): 12. Number of Pins: 4. Power Supply/Supply Voltage: 18-30 V dc. Output response time (ms): 1. Adjustments: N/A. Lens Material: Polycarbonate. Delay at Power-up (ms): 1500. Operation: Dark Operate. Indicator: Indicator LEDs. Max Op. Temperature (C): 55. Min Op. Temperature (C): -10. Max Op. Relative Humidity (%): 95% @ 55°C. Feature: Quick Disconnect: Yes. Number of Beams: 7. Beam to Beam Spacing [mm]: 162. Distance to First Beam [mm]: 85.5
Specification
| Last Beam Distance (to End of Housing)(mm) | 79.50 |
|---|---|
| Cable Length (m) | 1 |
| IP Rating | IP50 |
| NEMA / UL Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Diffuse |
| Housing Style | Roller Conveyor |
| End Cap Type | T: T-Slot Mounting |
| Primary Housing Material | Black Anodized Aluminum |
| Max Sensing Range (mm) | 120 |
| Slot Depth/Array Length (mm) | 1143 |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Outputs | PNP |
| Slot Overall Depth (mm) | 12 |
| Number of Pins | 4 |
| Power Supply/Supply Voltage | 18-30 V dc |
| Output response time (ms) | 1 |
| Adjustments | N/A |
| Lens Material | Polycarbonate |
| Delay at Power-up (ms) | 1500 |
| Operation | Dark Operate |
| Indicator | Indicator LEDs |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -10 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Feature: Quick Disconnect | Yes |
| Number of Beams | 7 |
| Beam to Beam Spacing [mm] | 162 |
| Distance to First Beam [mm] | 85.5 |
