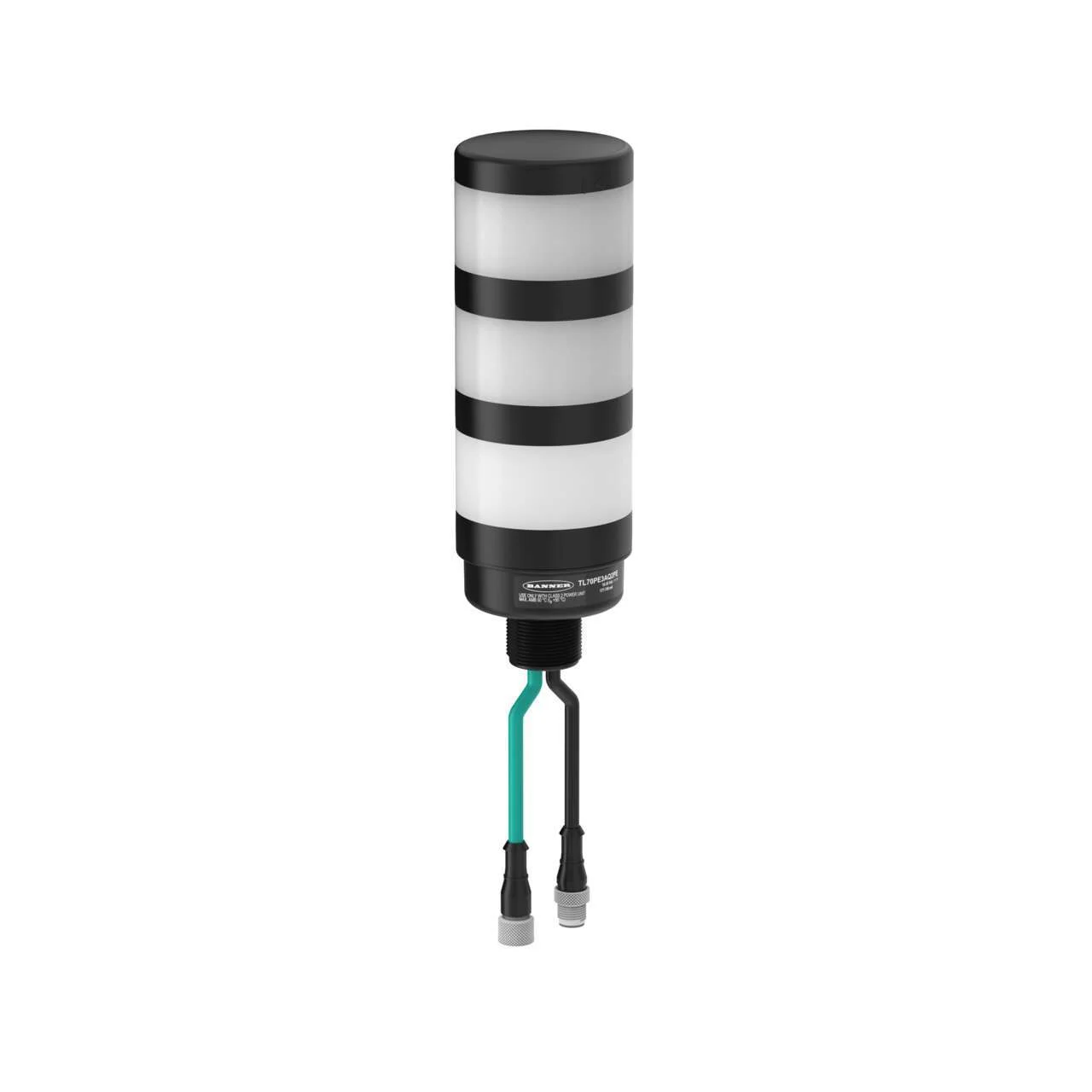

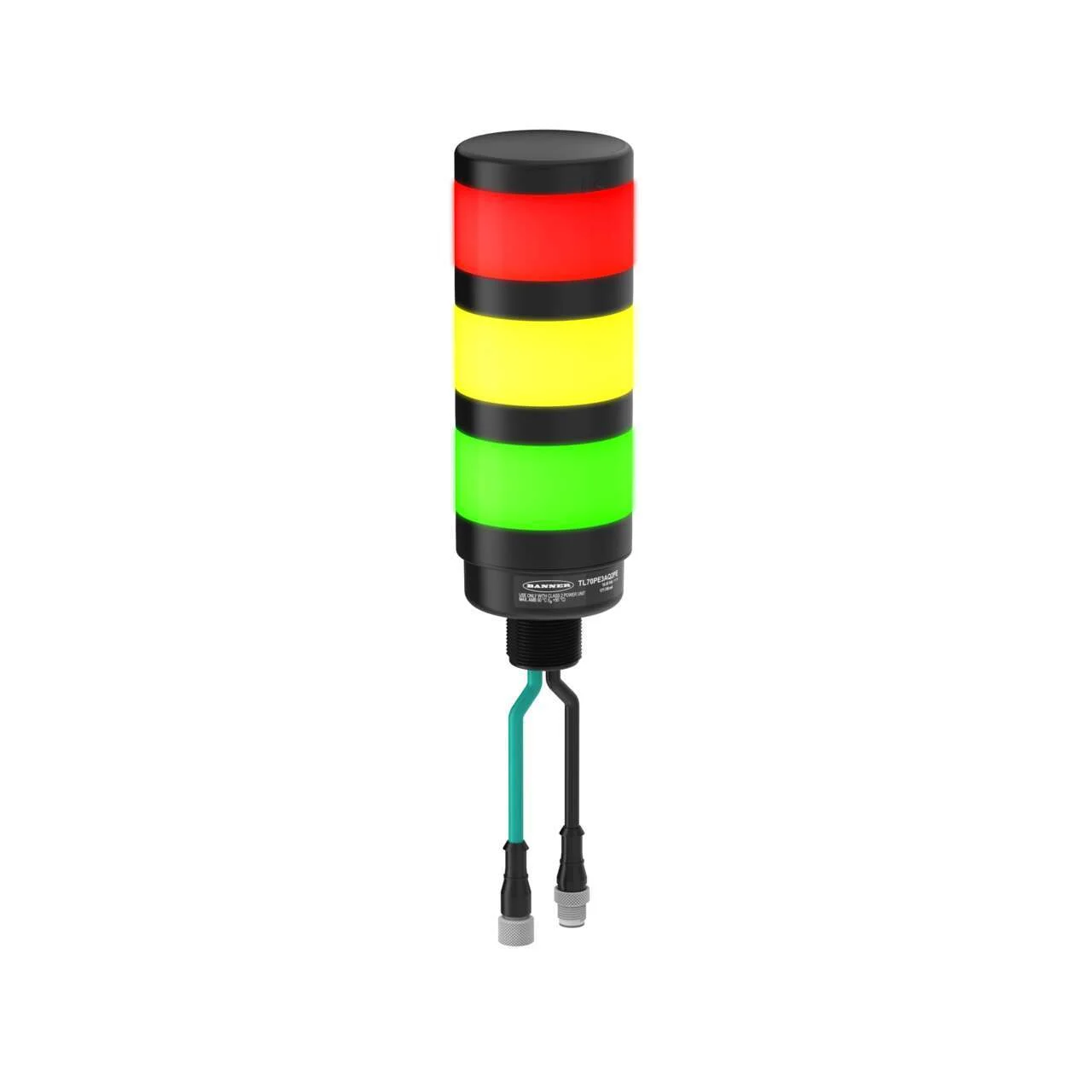

Banner Engineering TL70PE3Q2PE
TL70 Pro Tower Light with Ethernet; 3 RGB LED Segments
Voltage: 18-30 V dc; IP65; Black Housing; Colors: 14-color RGB
Dual PVC Pigtails,475 mm (18.7 in) 4-pin M…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TL70 Pro Tower Light with Ethernet; 3 RGB LED Segments
Voltage: 18-30 V dc; IP65; Black Housing; Colors: 14-color RGB
Dual PVC Pigtails,475 mm (18.7 in) 4-pin M12 Female D-Code +475 mm (18.7 in) 4-pin M12 Male
Black Housing
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Supply Voltage | 18-30 V dc |
| Lighting Device Type | Modular Tower Light |
| Programmable | Yes |
| Item Status | RELEASED |
| Housing Style | Base Mount – Tower |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number Of Colors | 14 |
| Product Size (Mm) | 70 |
| Color Technology | RGB Configurable |
| Number Of Tower Light Segments | 3 |
| Color Option 1 | RGB |
| Animation Option 1 | Ethernet IP Controlled |
| Connection | Dual Pigtail QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 450 |
| Dimming Option | Ethernet IP Controlled |
| Number Of Input Pins/Conductors | 8 |
| Input Type | Communication Protocol |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 70.0 x 212.0 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Ether Net/ I P | Yes |
| Io Link | No |
| Modbus Rtu | No |
| Modbus/ T C P | Yes |
| P R O F I N E T | Yes |
| Wireless | No |
| U S B | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 02/14/2025 |
