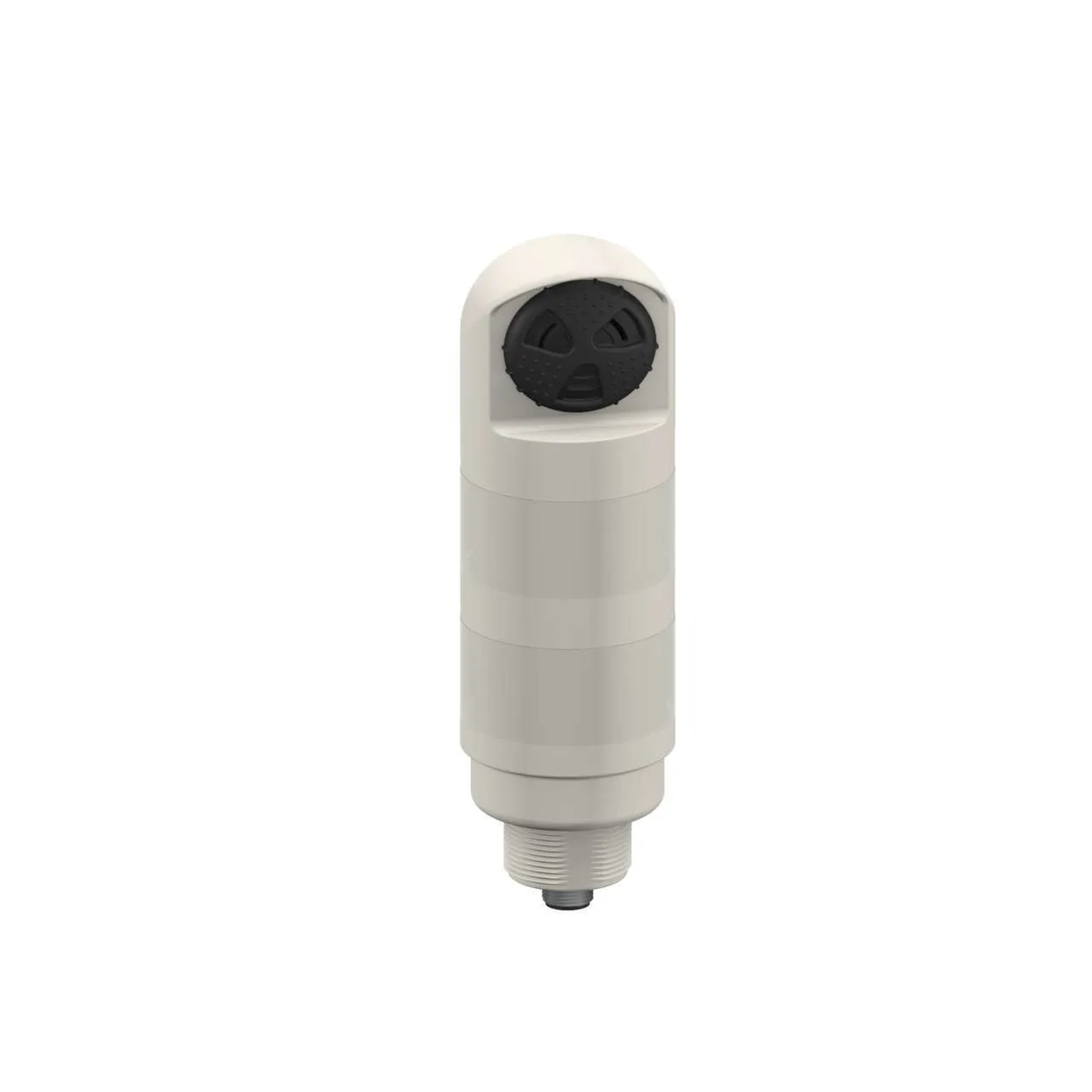

Banner Engineering TL50P2ALSCQ

TL50 Pro Tower Light with Sealed Loud Audible, Gray Housing: 2 Lighted Segments. Part number: 809297. model: TL50P2ALSCQ. part_number: 809297. list_price: 320 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/209142.pdf. BAN_NumberOfColors: 2. BAN_Audible: Yes. Custom_Group_1455_1455: Pro-Editor Compatible (Discrete). BAN_Connection: Integral QD. BAN_LI_Housing_color: Gray. BAN_LI_EnvironRating: IP67. BAN_PFM_Input: Yes. BAN_LI_Audible_Alarm_Type: Continuous. BAN_IndicationIntensity: —. BAN_CableLength: —. Power: DC. PFM Input: Yes. Non-Illuminated: No. IP Rating: IP67. Display: No. NEMA / UL Type Rating: NEMA and UL 13. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Housing Style: Base Mount – Tower. Primary Housing Material: ABS. Indication: Yes. Illumination: No. Mounting Thread: M30 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Number of Colors: 2. Product Size (mm): 50. Color Technology: RGB Configurable. Number of Tower Light Segments: 3. Color Option 1: Green. Connection: Integral QD. Lumens Color 1: 17.5. Quick Disconnect Type: M12. Color 1 – Wavelength/Color Temp/Coordinates: 522 nm. Color Option 2: Red. Lumens Color 2: 7.2. Color 2 – Wavelength/Color Temp/Coordinates: 620 nm. Max Current Color (mA): 220. Number of Input Pins/Conductors: 5. Audible Alarm Type: Continuous. Input Type: Bimodal (PNP/NPN). Max Audible Intensity (db at 1m): 94. Min Audible Intensity (db at 1m): 74. I/O Block Compatible: No. Audible Operating Frequency (kHz): 2.9. Max Input Response Time (ms): 250. Max Current – Audible Alarm (mA): 35. Physical Dimensions (LxWxH or DxH mm): 50.0 x 183.1. Environmental Rating: IP67. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 95% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -20. Primary Housing Color: Gray. Primary Window Material: Polycarbonate Diffused. Feature: Washdown Rated: No. Feature: Audible: Yes. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Multi-Color Device: Simultaneous Colors On. Application: Traffic Light: No. Feature: Quick Disconnect: Yes. IO Link: No. Wireless: No. USB: No. Pro-Editor Compatible (Discrete): Yes. EPLAN Status: Published. EPLAN Original Sent Date: 05/29/2025
