Banner Engineering TL50CWGYRBM

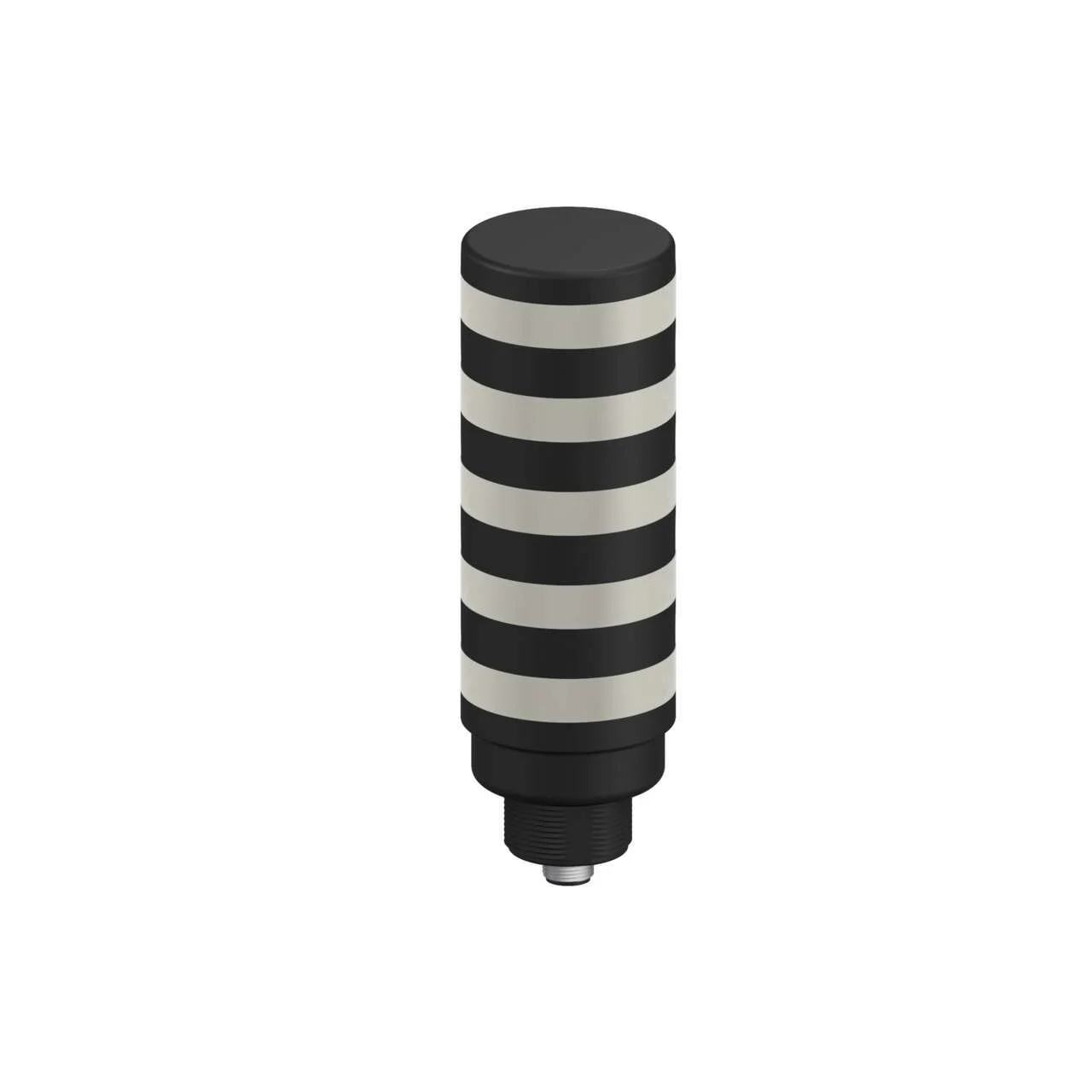

Compact Tower Light: 6-Color Indicator
Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal; Colors: White Green Yellow Red Blue Magenta
2…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact Tower Light: 6-Color Indicator
Voltage: 12-30 V dc or 24 V ac; Environmental Rating: IP67
Input: Bimodal; Colors: White Green Yellow Red Blue Magenta
2 m (6.5 ft) Integral Cable
Specification
| Power | DC or AC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Cable Length (M) | 2 |
| Ip Rating | IP67 |
| Display | No |
| Nema / Ul Type Rating | NEMA and UL 13 |
| Supply Voltage | 12-30 V dc / 24 V ac |
| Item Status | RELEASED |
| Housing Style | Base Mount – Tower |
| Primary Housing Material | ABS |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 6 |
| Product Size (Mm) | 50 |
| Color Technology | Standard LED |
| Number Of Tower Light Segments | 6 |
| Color Option 1 | Cool White |
| Animation Option 1 | Solid On |
| Connection | Cable |
| Lumens Color 1 | 25.0 |
| Color 1 Wavelength/Color Temp/Coordinates | 6000K |
| Color Option 2 | Green |
| Animation Option 2 | Solid On |
| Lumens Color 2 | 27.0 |
| Color 2 Wavelength/Color Temp/Coordinates | 528 nm |
| Color Option 3 | Yellow |
| Animation Option 3 | Solid On |
| Lumens Color 3 | 6.0 |
| Color 3 Wavelength/Color Temp/Coordinates | 590 nm |
| Color Option 4 | Red |
| Animation Option 4 | Solid On |
| Lumens Color 4 | 9.0 |
| Color 4 Wavelength/Color Temp/Coordinates | 625 nm |
| Color Option 5 | Blue |
| Animation Option 5 | Solid On |
| Lumens Color 5 | 4.5 |
| Color 5 Wavelength/Color Temp/Coordinates | 470 nm |
| Color Option 6 | Magenta |
| Animation Option 6 | Solid On |
| Lumens Color 6 | 3.5 |
| Color 6 Wavelength/Color Temp/Coordinates | 0.35; 0.15 |
| Max Current Color (Ma) | 135 |
| Number Of Input Pins/Conductors | 8 |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 10 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 228.4 |
| Environmental Rating | IP67 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Io Link | No |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | No |
