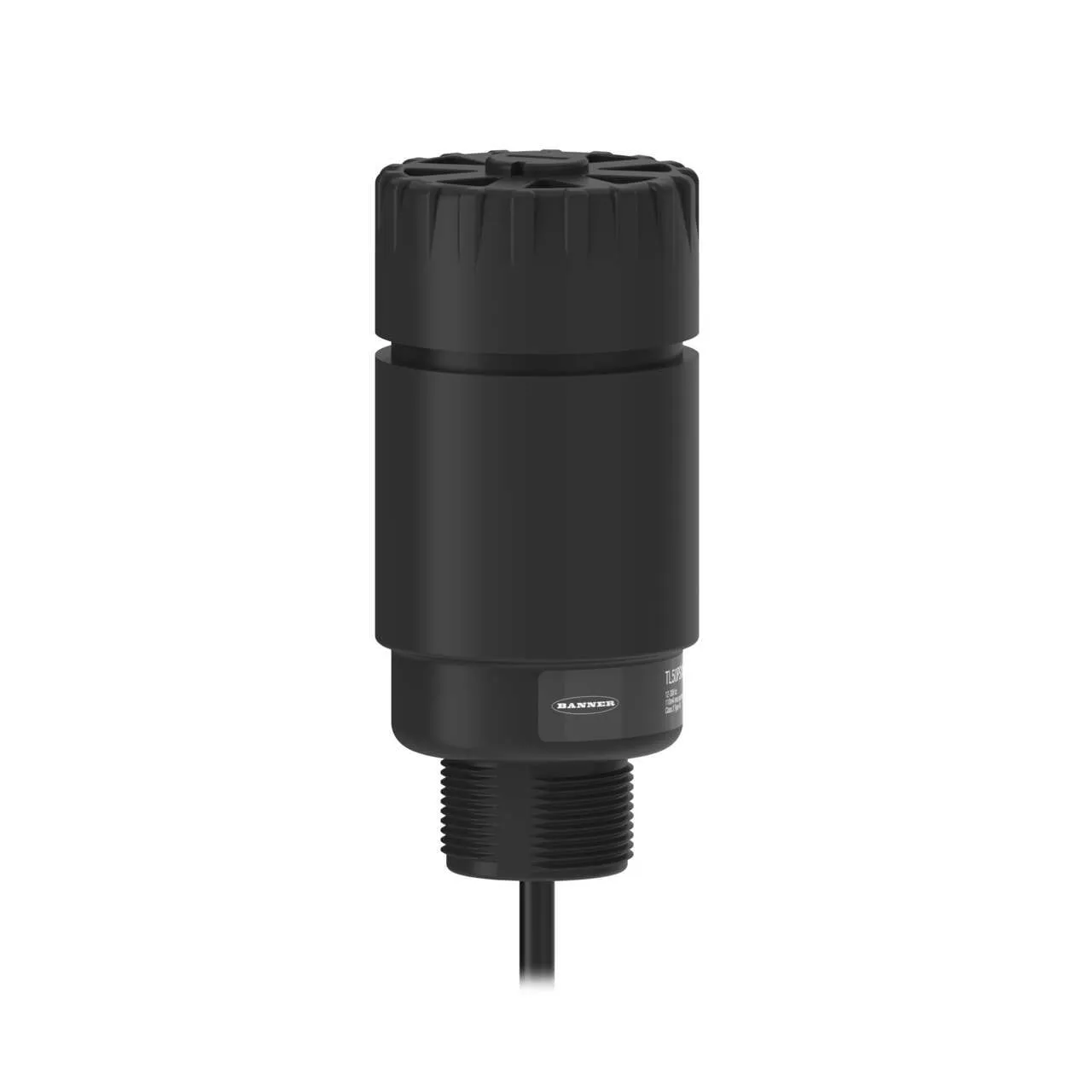

Banner Engineering TL50A

Tower Light: Audible Indicator. Part number: 11356. model: TL50A. part_number: 11356. list_price: 97 USD. is_new: 0. is_in_stock: 0. product_manual: —. BAN_NumberOfColors: —. BAN_Audible: Audible Only. BAN_Connection: Cable. BAN_Supply_Voltage: 12-30 V dc / 24 V ac. BAN_LI_Color_Option_1: —. BAN_LI_Color_Option_2: —. BAN_LI_Color_Option_3: —. BAN_LI_Color_Option_4: —. BAN_LI_Color_Option_5: —. BAN_LI_Color_Option_6: —. BAN_LI_Housing_color: Black. Power: DC or AC. PFM Input: No. Non-Illuminated: Yes. Cable Length (m): 2. IP Rating: IP50. Display: No. NEMA / UL Type Rating: NEMA and UL 13. Supply Voltage: 12-30 V dc / 24 V ac. Item Status: RELEASED. Housing Style: Base Mount – Tower. Primary Housing Material: ABS. Indication: Yes. Illumination: No. Mounting Thread: M30 x 1.5. Color Input Control: Individual (One wire/color, same number of colors as input wires). Product Size (mm): 50. Number of Tower Light Segments: 1. Connection: Cable. Number of Input Pins/Conductors: 4. Audible Alarm Type: Continuous. Input Type: Bimodal (PNP/NPN). Max Audible Intensity (db at 1m): 92. Min Audible Intensity (db at 1m): 62. I/O Block Compatible: No. Audible Operating Frequency (kHz): 2.7. Max Input Response Time (ms): 10. Max Current – Audible Alarm (mA): 25. Physical Dimensions (LxWxH or DxH mm): 50.0 x 111.0. Environmental Rating: IP50. Eye Shield: No. Max Op. Relative Humidity Non-Condensing (%): 95% @ 50°C. High Temperature (up to 100 C): 50. Min Op. Temperature (C): -20. Storage Temp (C): -40 to 70. Primary Housing Color: Black. Feature: Washdown Rated: No. Feature: Audible: Audible Only. Feature: Cascade: No. Feature: Chemical Resistant: No. Feature: Illuminated: No. Application: Traffic Light: No. Feature: Quick Disconnect: No. IO Link: No. Wireless: No. USB: No. EPLAN Status: Published. EPLAN Original Sent Date: 09/27/2025
