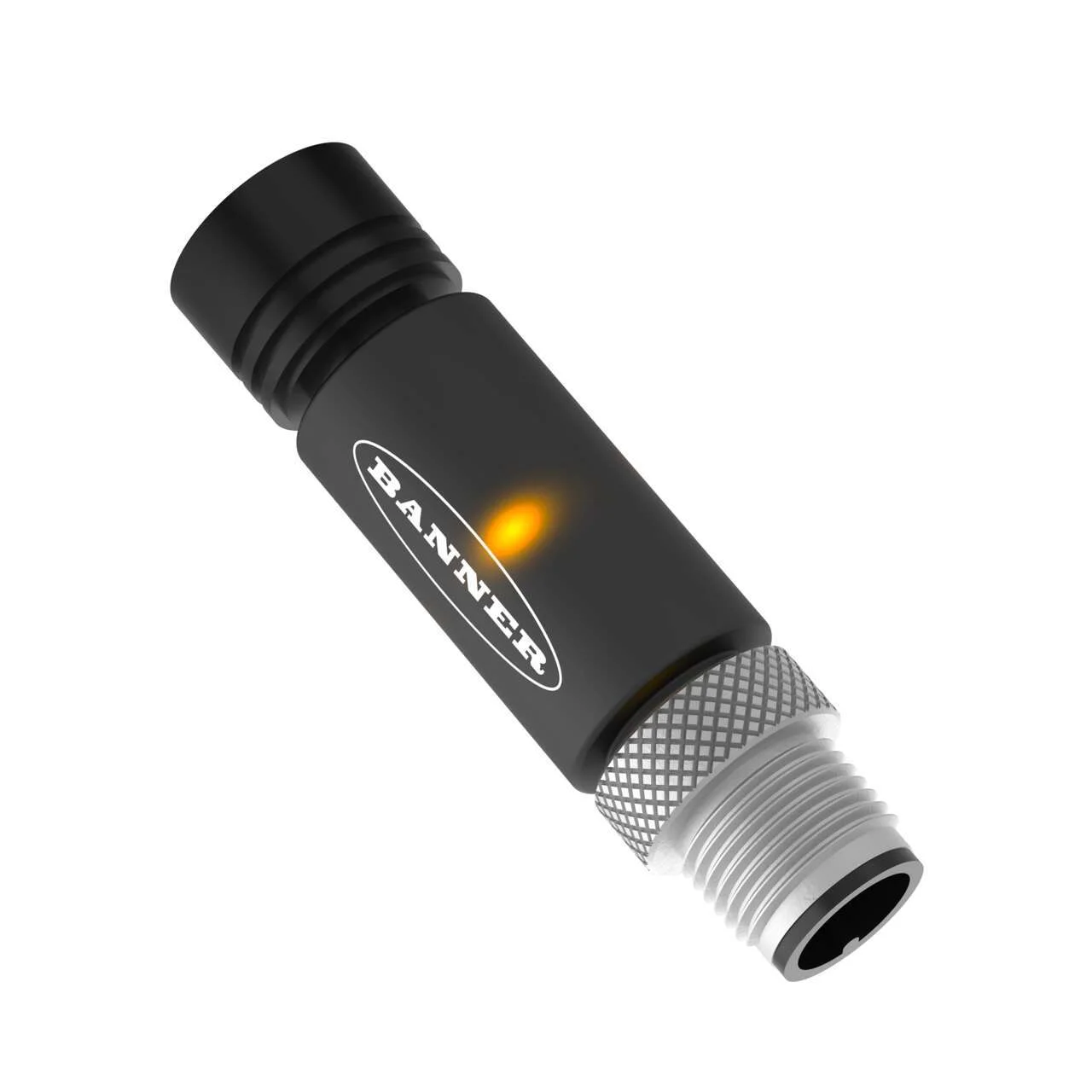

Banner Engineering TL15A2Q
TL15 Series: In-Line Audible Segment
Voltage: 12-30 V dc; Housing: PVC; IP67
Input: PNP; Audible: Pin 2
Male-Female 5-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TL15 Series: In-Line Audible Segment
Voltage: 12-30 V dc; Housing: PVC; IP67
Input: PNP; Audible: Pin 2
Male-Female 5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP60 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Barrel – Straight |
| Primary Housing Material | PVC |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | No Thread |
| Product Size (Mm) | 15 |
| Number Of Tower Light Segments | 1 |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Number Of Input Pins/Conductors | 5 |
| Audible Alarm Type | Continuous |
| Input Type | Bimodal (PNP/NPN) |
| Max Audible Intensity (Db At 1M) | 79 |
| Min Audible Intensity (Db At 1M) | 79 |
| I/O Block Compatible | No |
| Audible Operating Frequency (Khz) | 2.9 |
| Max Current Audible Alarm (Ma) | 55 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 15.0 X 58.0 |
| Environmental Rating | IP60 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Feature: Washdown Rated | No |
| Feature: Audible | Audible Only |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
