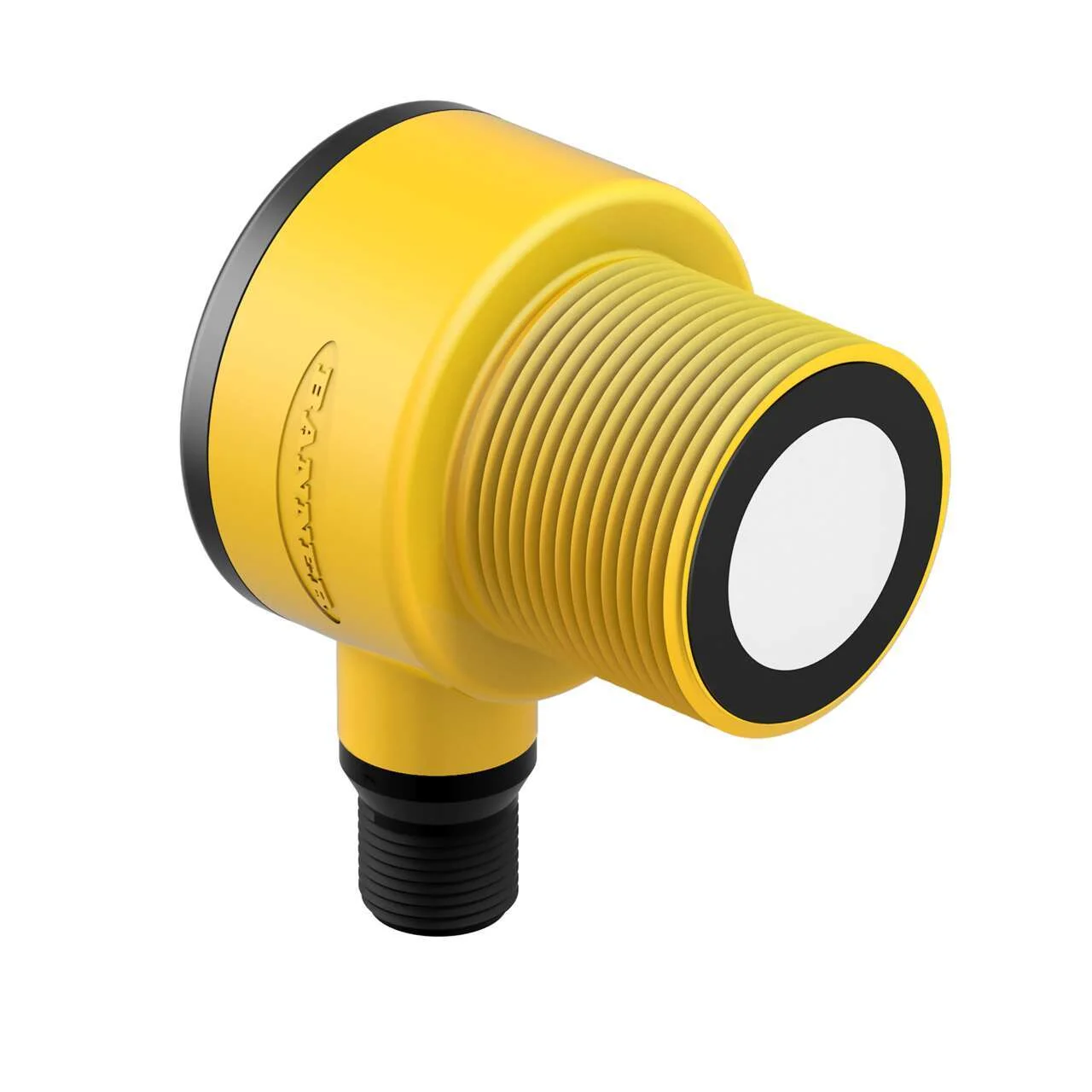

Banner Engineering T30UDNBQ
Dual-Discrete T30U Series: Proximity Mode
Range: 300 mm – 2 m; Input: 12-24 V dc
Outputs: Dual Discrete NPN
M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Dual-Discrete T30U Series: Proximity Mode
Range: 300 mm – 2 m; Input: 12-24 V dc
Outputs: Dual Discrete NPN
M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Output | No |
| Sensing Beam | Ultrasonic |
| Jam Detection | No |
| Pc Configurable | No |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-24 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Proximity |
| Sensing Mode (Detailed) | Time of Flight |
| Housing Style | Barrel |
| Device Type | Sensor |
| Primary Housing Material | PBT |
| Input/ Output | Discrete |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (Mm) | 2000 |
| Minimum Sensing Distance (Mm) | 300 |
| Adjustments | Teach Button |
| Number Of Pins | 5 |
| Discrete (Switched) Outputs | 2 NPN |
| Max Operating Temperature (C) | 70 |
| Min Operating Temperature (C) | -20 |
| Minimum Response Time (Ms) | 96 |
| Barrel Thread | M30 |
| Ultrasonic Frequency (Khz) | 128 |
| Laser Control | No |
| Feature: Remote Teach | Yes |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | No |
| Feature: Chemical Resistant | No |
| Feature: Pump In/ Pump Out | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Application: Ultrasonic | Yes |
| Common Ethernet Protocol | No |
| R S 232 | No |
| Wireless | No |
