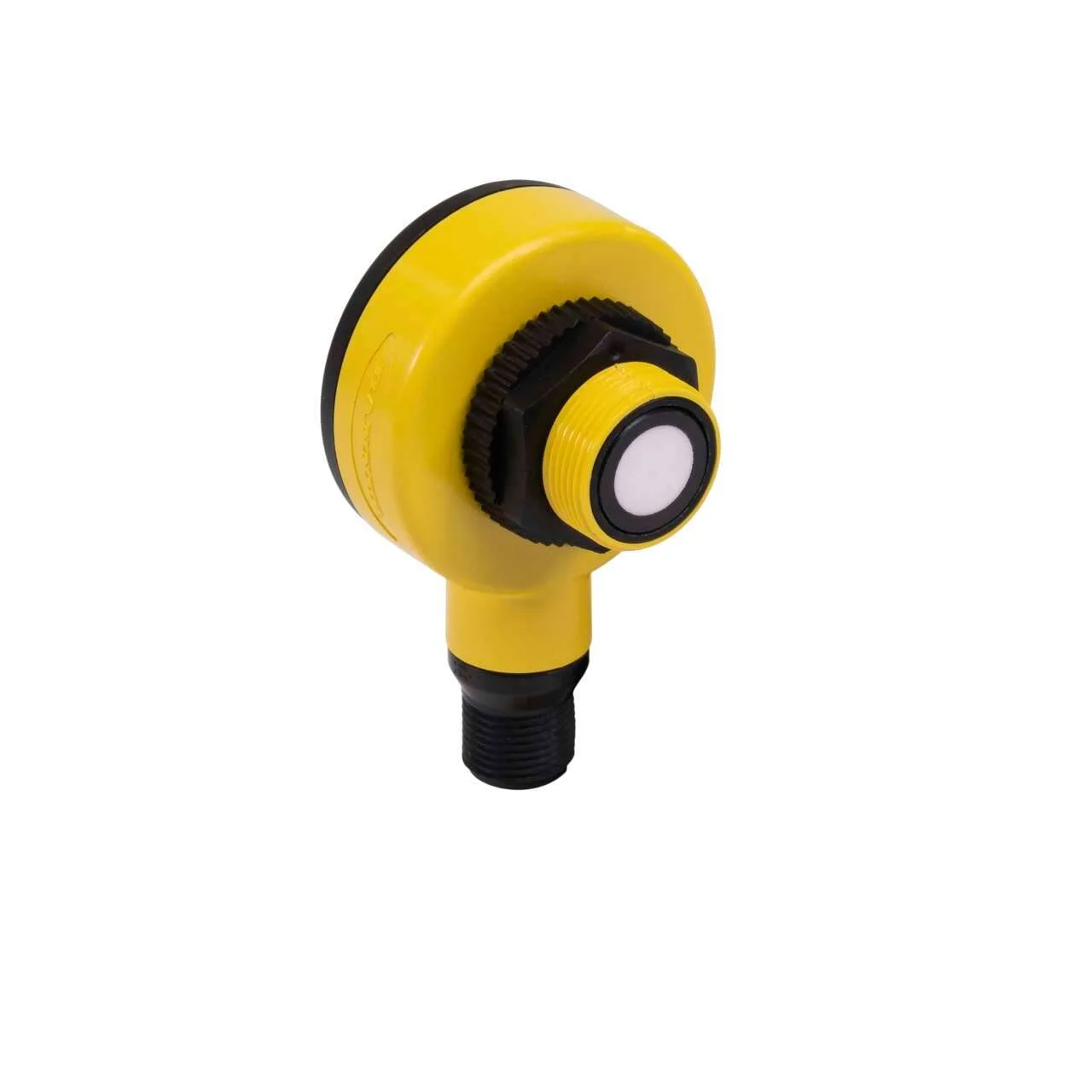

Banner Engineering T18VP6URQ
T18U Series: Receiver
Range: 300-600 mm; Input: 12-30 V dc
Output: Complementary PNP
M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
T18U Series: Receiver
Range: 300-600 mm; Input: 12-30 V dc
Output: Complementary PNP
M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Output | No |
| Sensing Beam | Ultrasonic |
| Jam Detection | No |
| Pc Configurable | No |
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Receiver |
| Housing Style | Rectangular w/ Threaded Mount |
| Device Type | Sensor |
| Primary Housing Material | PBT |
| Input/ Output | Discrete |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Sensing Distance (Mm) | 600 |
| Minimum Sensing Distance (Mm) | 300 |
| Number Of Pins | 4 |
| Mechanical Shock (Additional Comments) | MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation). |
| Discrete (Switched) Outputs | PNP Complementary |
| Max Operating Temperature (C) | 70 |
| Min Operating Temperature (C) | -40 |
| Minimum Response Time (Ms) | 1 |
| Barrel Thread | M18 |
| Ultrasonic Frequency (Khz) | 230 |
| Laser Control | No |
| Feature: Remote Teach | No |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | Yes |
| Feature: Timing (Hold/Delay) | No |
| Feature: Chemical Resistant | No |
| Feature: Pump In/ Pump Out | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Application: Ultrasonic | Yes |
| Common Ethernet Protocol | No |
| R S 232 | No |
| Wireless | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 06/20/2022 |
