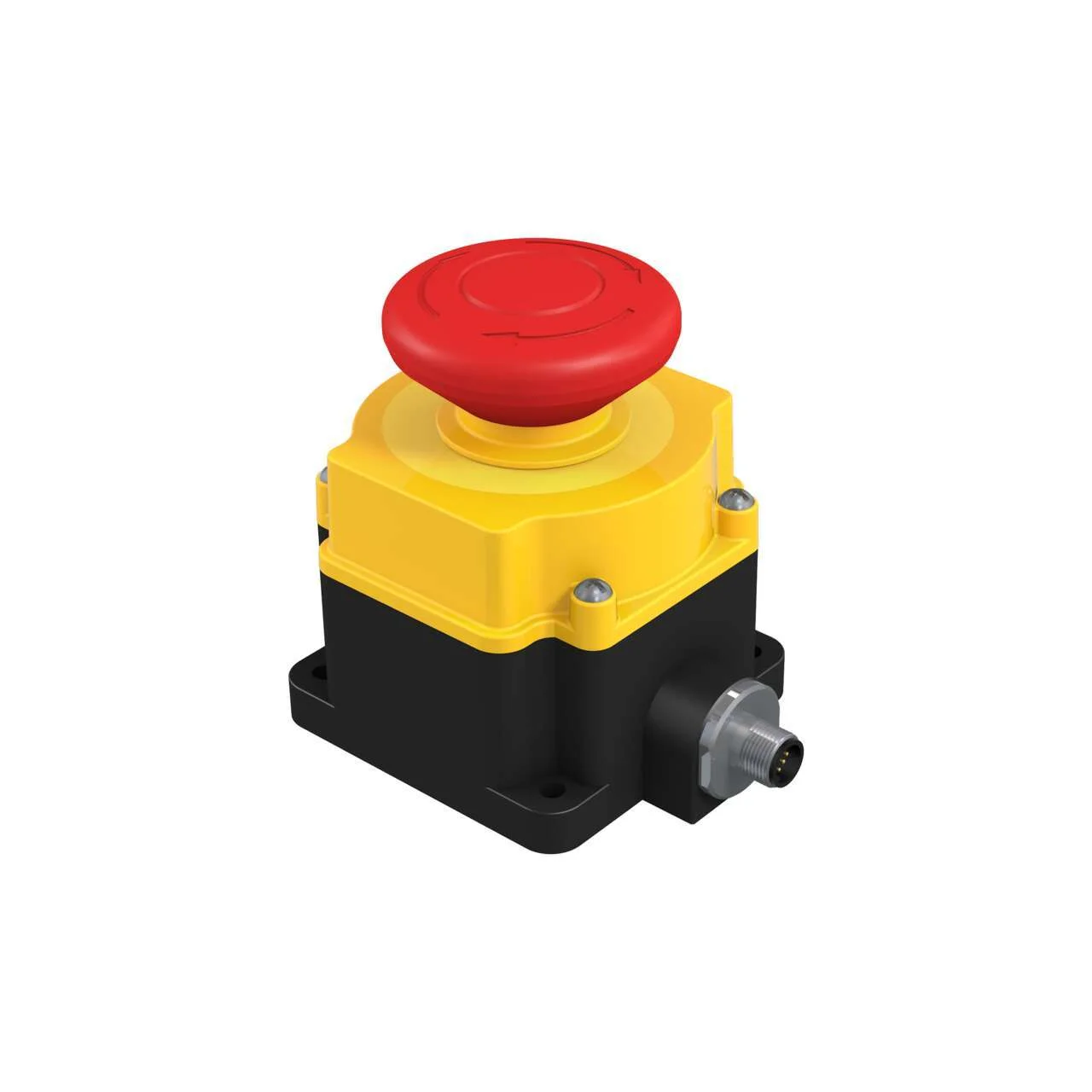

Banner Engineering SSA-EB2P-02ED1Q5B
SSA-EB1 Flush-mount Emergency Stop Push Button
60 mm Actuator
IP65; Contacts: 2NC; 5-pin M12 QD
Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5
Safet…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SSA-EB1 Flush-mount Emergency Stop Push Button
60 mm Actuator
IP65; Contacts: 2NC; 5-pin M12 QD
Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5
Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5
Specification
| Connection Type | M12 |
|---|---|
| Min Operating Temperature (C) | -25 |
| Max Operating Temperature (C) | 55 |
| Button Shroud | No |
| Ip Rating | IP65 |
| Item Status | RELEASED |
| Housing Style | Base |
| Device Type | Push Button |
| Primary Housing Material | Polycarbonate |
| In Series Diagnostics | No |
| Actuation | Twist/Pull-to-Release |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Feature: Washdown Rated | No |
| Feature: Illuminated | No |
| Feature: Lockable | No |
| Feature: Quick Disconnect | Yes |
| Mounting Thread/Style | Flat |
| Contact Quantity | 2 NC |
| Contact Rating | 2 A @ 24 V dc |
| Button Diameter (Mm) | 60 |
| Actuator/Button Material | Thermoplastic |
| Dimensions (Hxwxd Mm ) | 103 x 110 x 81 |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
