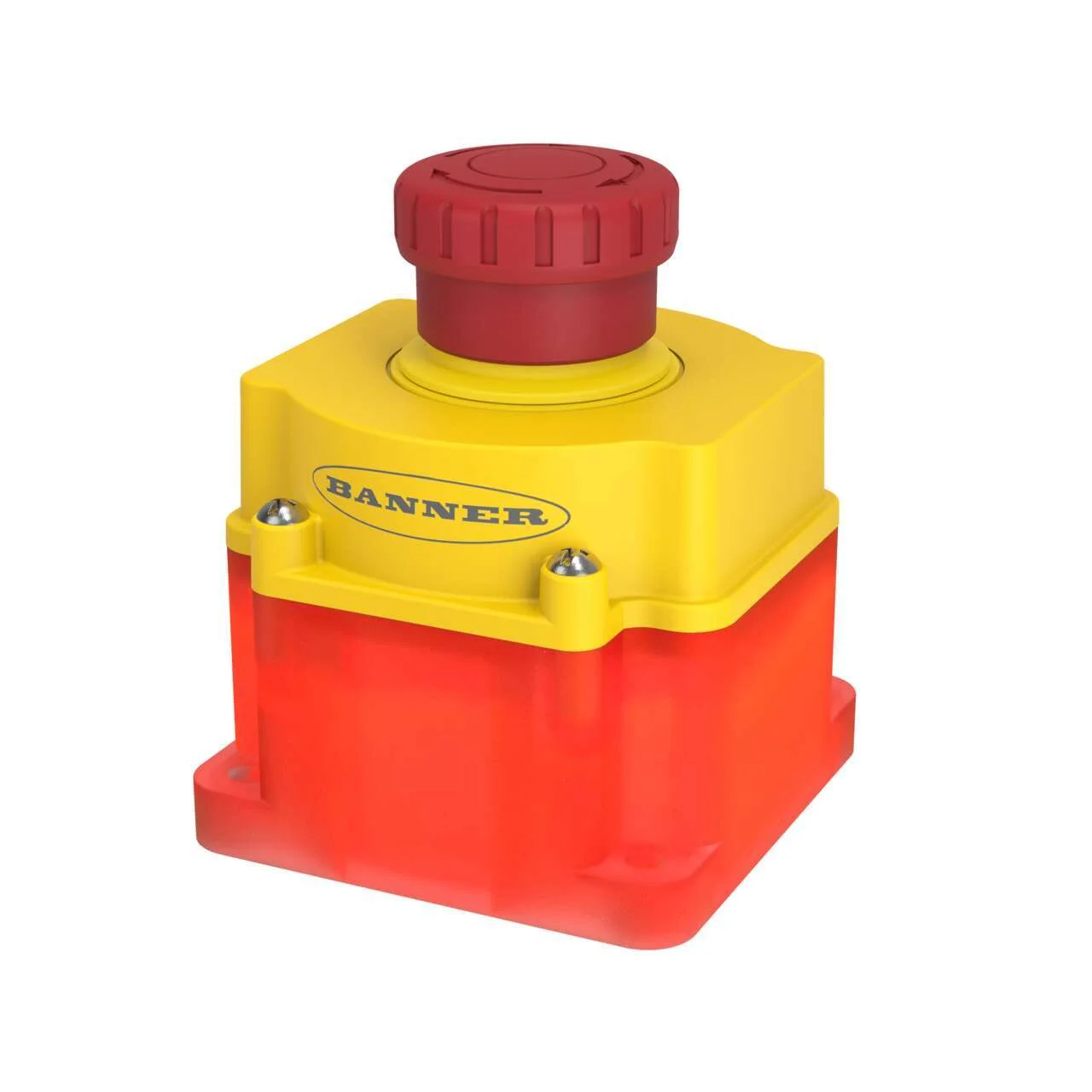

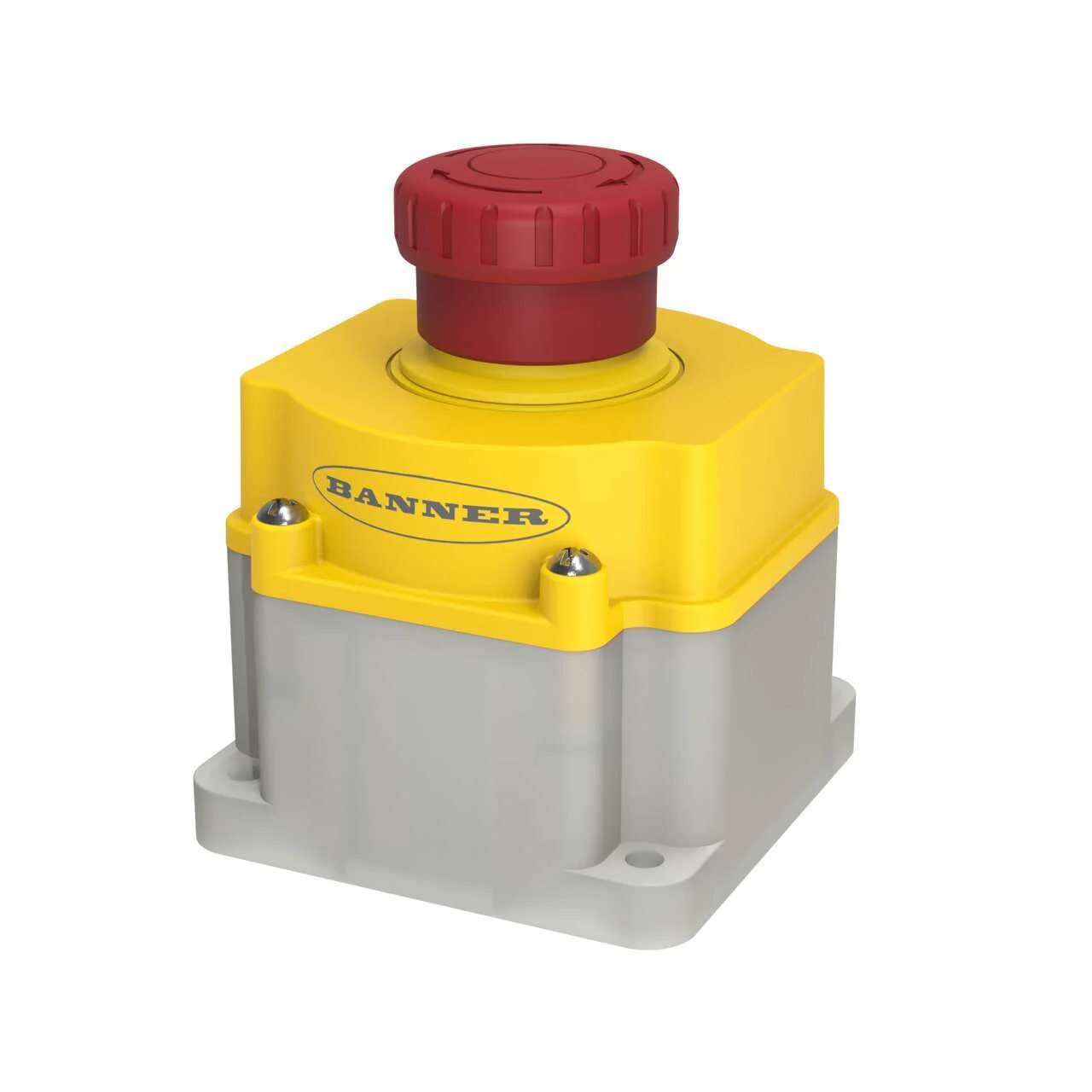

Banner Engineering SSA-EB1PLXR-0DED1Q8R
Emergency Stop with ISD: Flush Mount 40 mm Push Button
Illuminated Color: Off/Red Flashing
2 N.C. OSSD Safety Contacts, IP65

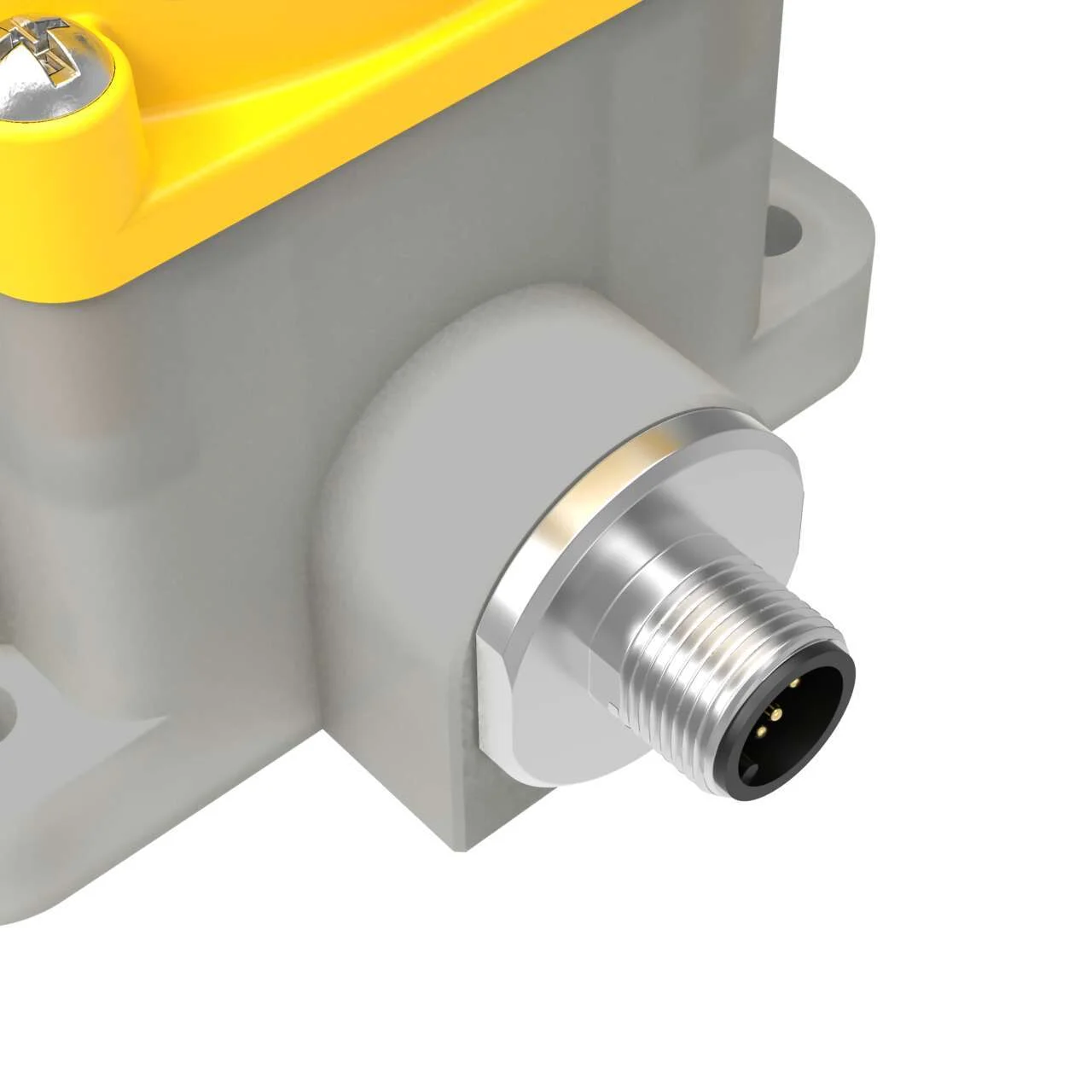

8-pin M12 QD
Local Reset Input
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Emergency Stop with ISD: Flush Mount 40 mm Push Button
Illuminated Color: Off/Red Flashing
2 N.C. OSSD Safety Contacts, IP65
8-pin M12 QD
Local Reset Input
Specification
| Connection Type | M12 |
|---|---|
| Armed Color (Solid) | OFF |
| Actuated Color | Red – Flash |
| Min Operating Temperature (C) | -25 |
| Max Operating Temperature (C) | 50 |
| Illumination Type | Base |
| Button Shroud | No |
| Isd Connect Compatible | Yes |
| Ip Rating | IP65 |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Housing Style | Base |
| Device Type | Push Button |
| Primary Housing Material | Polycarbonate |
| In Series Diagnostics | Yes |
| Actuation | Twist-to-Release |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Feature: Washdown Rated | No |
| Feature: Illuminated | Yes |
| Feature: Lockable | No |
| Feature: Quick Disconnect | Yes |
| Mounting Thread/Style | Flat |
| Contact Quantity | 2 NC OSSD |
| Contact Rating | 24 V dc @ 0.1 A each |
| Button Diameter (Mm) | 40 |
| Actuator/Button Material | Thermoplastic |
| Dimensions (Hxwxd Mm ) | 103 x 110 x 81 |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/18/2024 |
