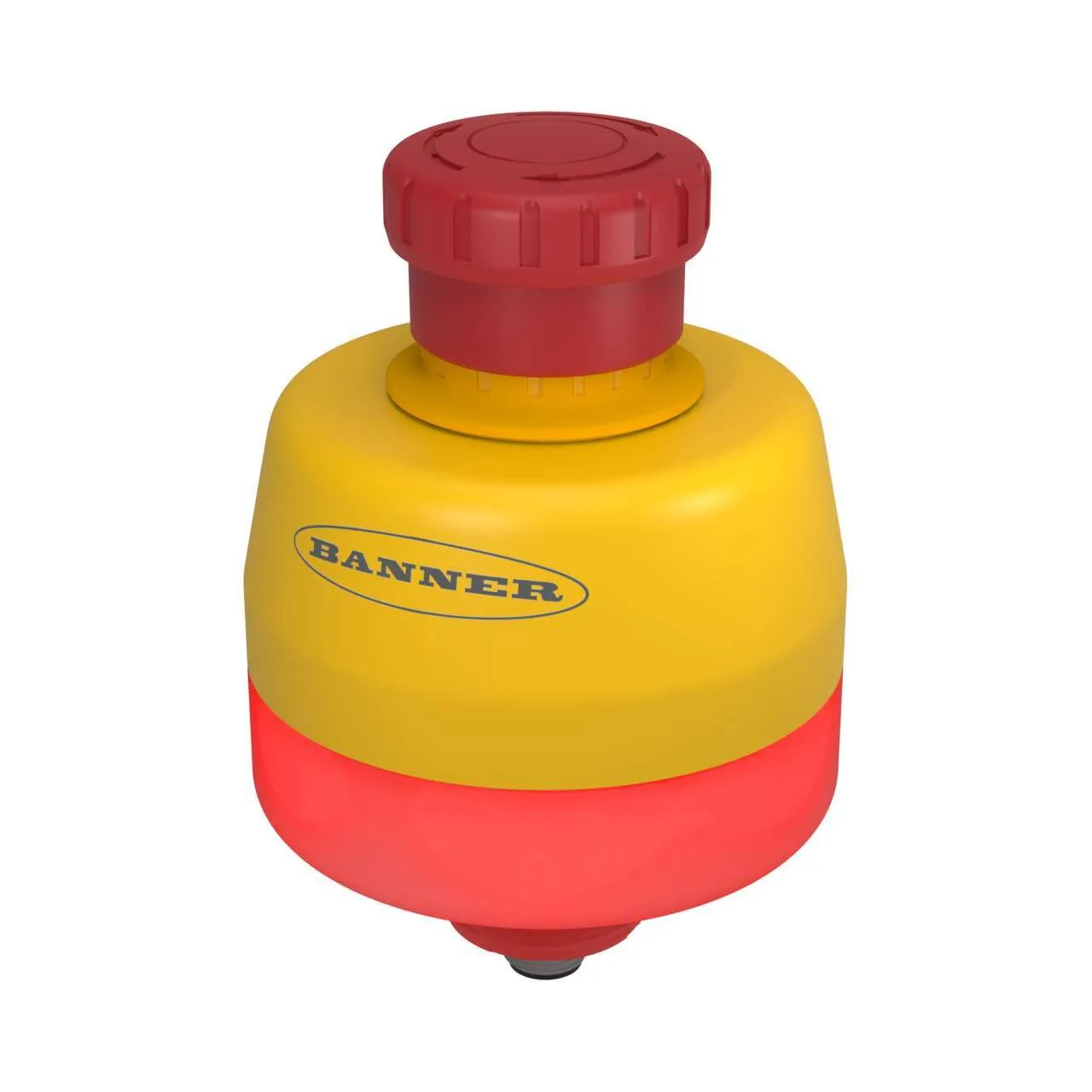

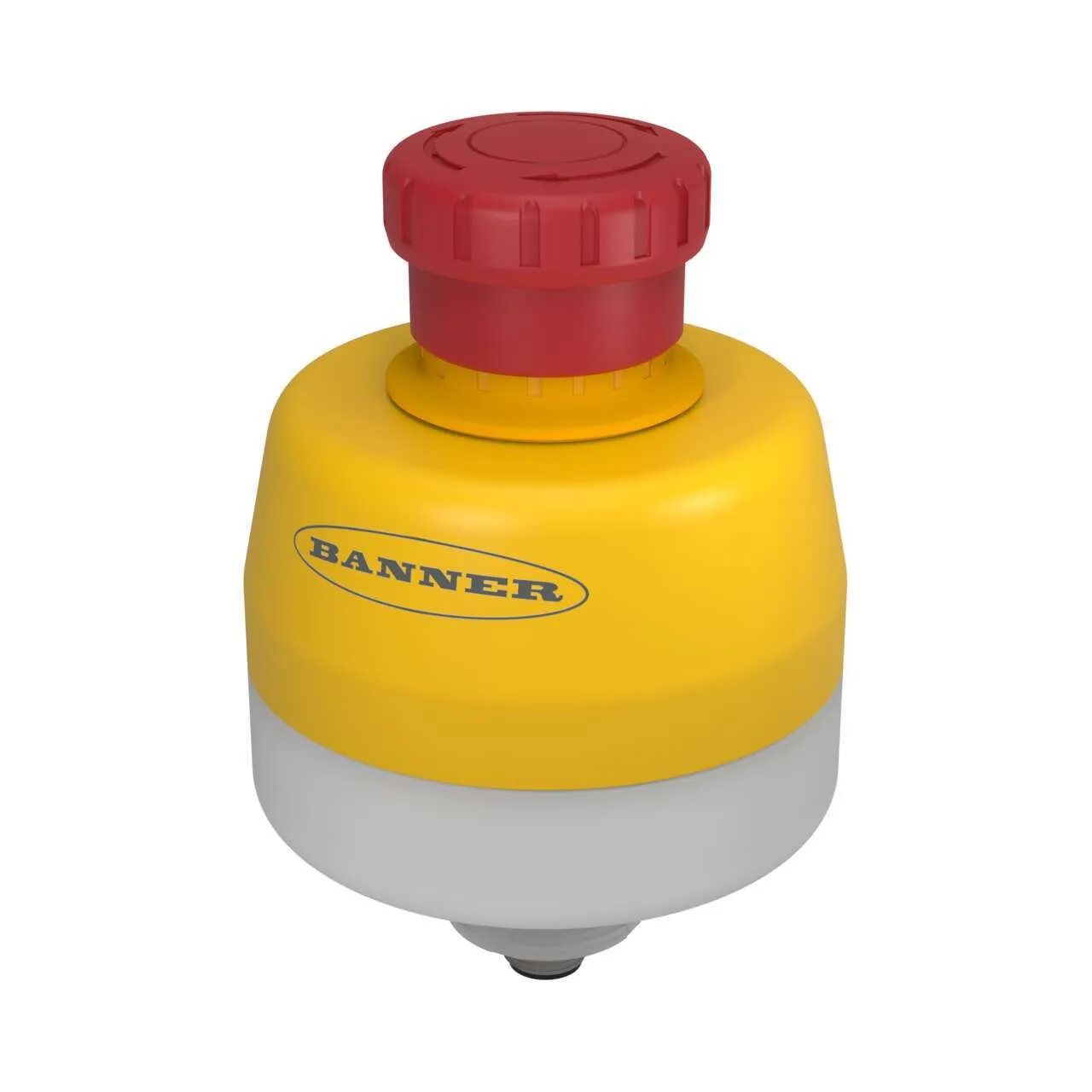

Banner Engineering SSA-EB1PLXR-02ECQ5B

SSA-EB1 30 mm Mount Emergency Stop Push Button. Part number: 26263. model: SSA-EB1PLXR-02ECQ5B. part_number: 26263. list_price: 254 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_InSeriesDiagnostics: No. BAN_Illuminated: Yes. BAN_Safety_ES_RP_IlluminType: Base. BAN_Safety_ES_RP_Armed_Color: OFF. BAN_Safety_ES_RP_Actuated_Colo: Red – Flash. BAN_Washdown_Rated: No. BAN_Actuation: Twist/Pull-to-Release. BAN_Safety_ES_RP_Button_Dia: 40. BAN_Safety_ES_RP_ButtonShroud: No. Connection Type: M12. Armed Color (Solid): OFF. Actuated Color: Red – Flash. Min Operating Temperature (C): -25. Max Operating Temperature (C): 55. Illumination Type: Base. Button Shroud: No. IP Rating: IP65. Supply Voltage: 12-30 V dc. Item Status: RELEASED. Housing Style: Base. Device Type: Push Button. Primary Housing Material: Polycarbonate. In-Series Diagnostics: No. Actuation: Twist/Pull-to-Release. Connection: Integral QD. Feature: Washdown Rated: No. Feature: Illuminated: Yes. Feature: Lockable: No. Feature: Quick Disconnect: Yes. Mounting Thread/Style: 30 mm. Contact Quantity: 2 NC. Contact Rating: 2 A @ 24 V dc. Button Diameter (mm): 40. Actuator/Button Material: Thermoplastic. Dimensions (HxWxD mm ): 120 x 80. EPLAN Status: Published. EPLAN Original Sent Date: 04/21/2022
