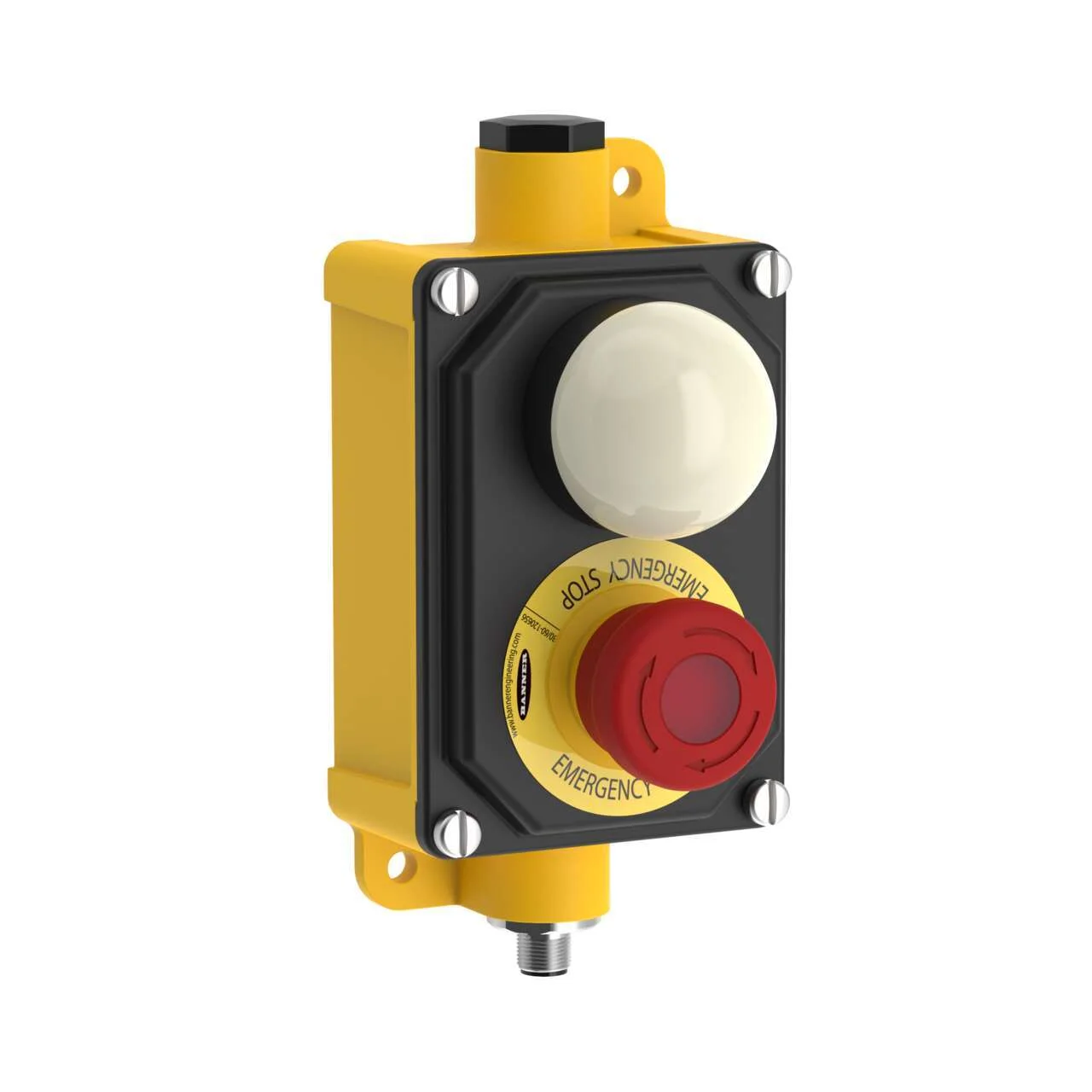

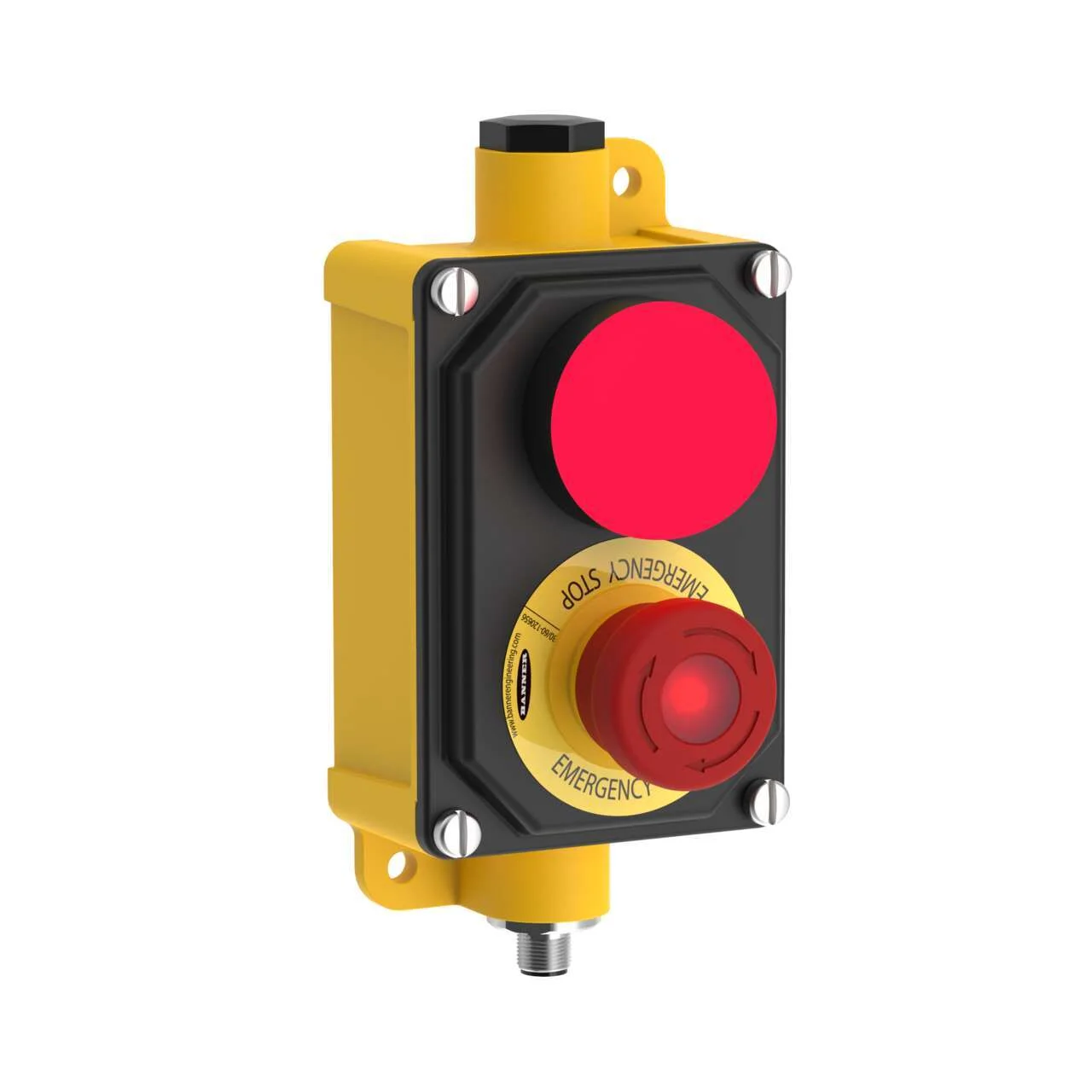

Banner Engineering SSA-EB1PL2-12EB1Q12K50
Illuminated E-Stop Button (Push On): 2 NC/1 NO
E-Stop Legend
3 Color K50 Touch, BENC Enclosure
12-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Illuminated E-Stop Button (Push On): 2 NC/1 NO
E-Stop Legend
3 Color K50 Touch, BENC Enclosure
12-pin M12 Integral QD
Specification
| Connection Type | M12 |
|---|---|
| Armed Color (Solid) | OFF |
| Actuated Color | Red |
| Min Operating Temperature (C) | -25 |
| Max Operating Temperature (C) | 50 |
| Illumination Type | Button |
| Button Shroud | No |
| Ip Rating | IP65 |
| Supply Voltage | 21.6-26.4 V dc |
| Item Status | RELEASED |
| Housing Style | Flat |
| Device Type | Push Button |
| Primary Housing Material | Polycarbonate |
| In Series Diagnostics | No |
| Actuation | Twist/Pull-to-Release |
| Connection | Integral QD |
| Feature: Washdown Rated | No |
| Feature: Illuminated | Yes |
| Feature: Lockable | No |
| Feature: Quick Disconnect | Yes |
| Mounting Thread/Style | Flat |
| Contact Quantity | 2 NC, 1 NO |
| Contact Rating | 2 A @ 30 V dc |
| Button Diameter (Mm) | 40 |
| Actuator/Button Material | Thermoplastic |
