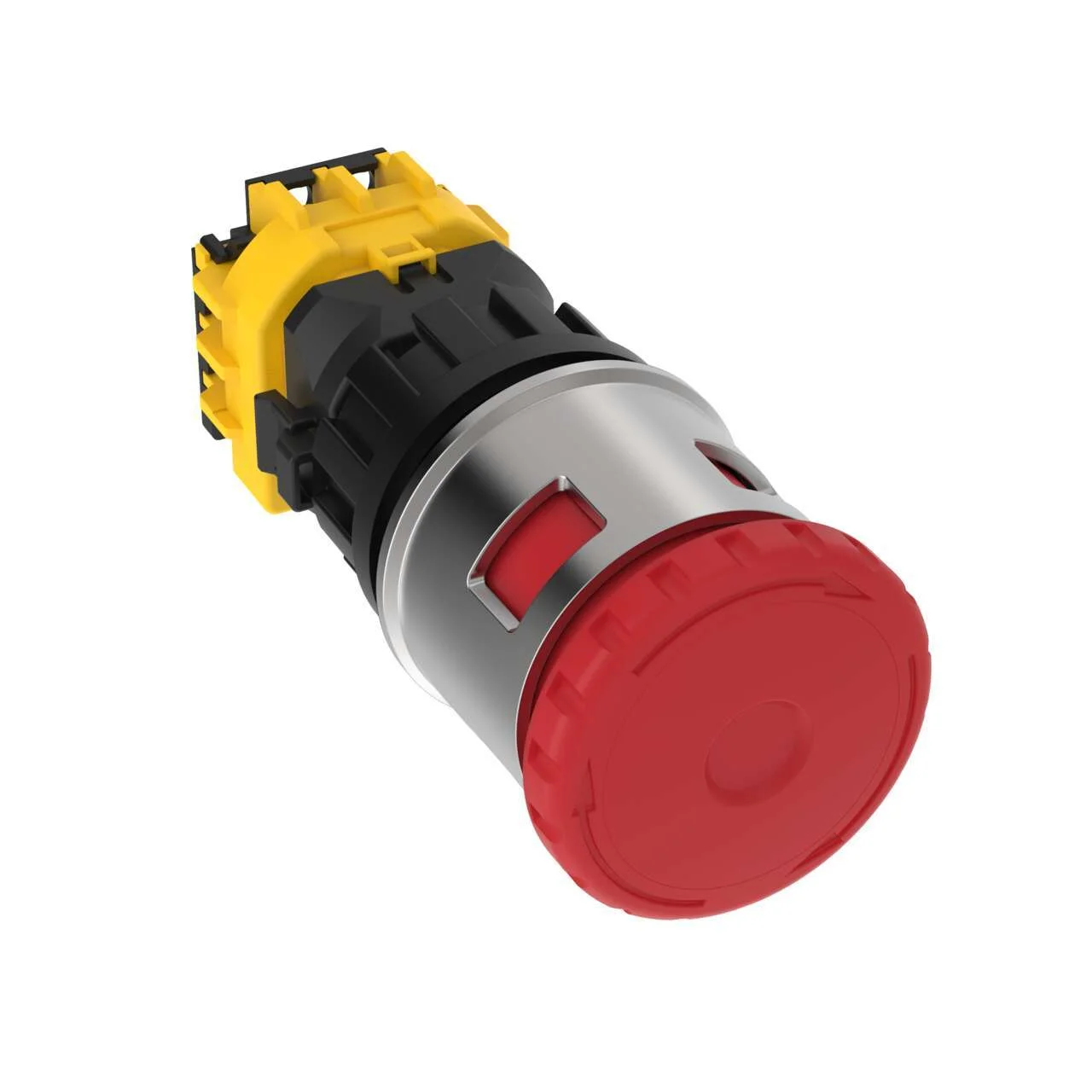

Banner Engineering SSA-EB1MP-22
SSA-EB1 Panel-mount Emergency Stop Push Button
Lockable 44 mm Actuator
Contacts: 2NC/2NO
Screw Terminals; 30 mm mounting hole
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SSA-EB1 Panel-mount Emergency Stop Push Button
Lockable 44 mm Actuator
Contacts: 2NC/2NO
Screw Terminals; 30 mm mounting hole
Specification
| Connection Type | Screw Terminal |
|---|---|
| Min Operating Temperature (C) | -25 |
| Max Operating Temperature (C) | 60 |
| Button Shroud | No |
| Ip Rating | IP65 |
| Item Status | RELEASED |
| Housing Style | Base |
| Device Type | Push Button |
| Primary Housing Material | Polycarbonate |
| Actuation | Twist-to-Release |
| Feature: Washdown Rated | No |
| Feature: Illuminated | No |
| Feature: Lockable | Yes |
| Feature: Quick Disconnect | No |
| Mounting Thread/Style | Panel |
| Contact Quantity | 2 NC, 2 NO |
| Contact Rating | 2 A @ 30 V dc |
| Button Diameter (Mm) | 44 |
| Actuator/Button Material | Thermoplastic |
| Dimensions (Hxwxd Mm ) | 105 x 37 x 44 |
| Eplan Status | Published |
| Eplan Original Sent Date | 06/08/2023 |
