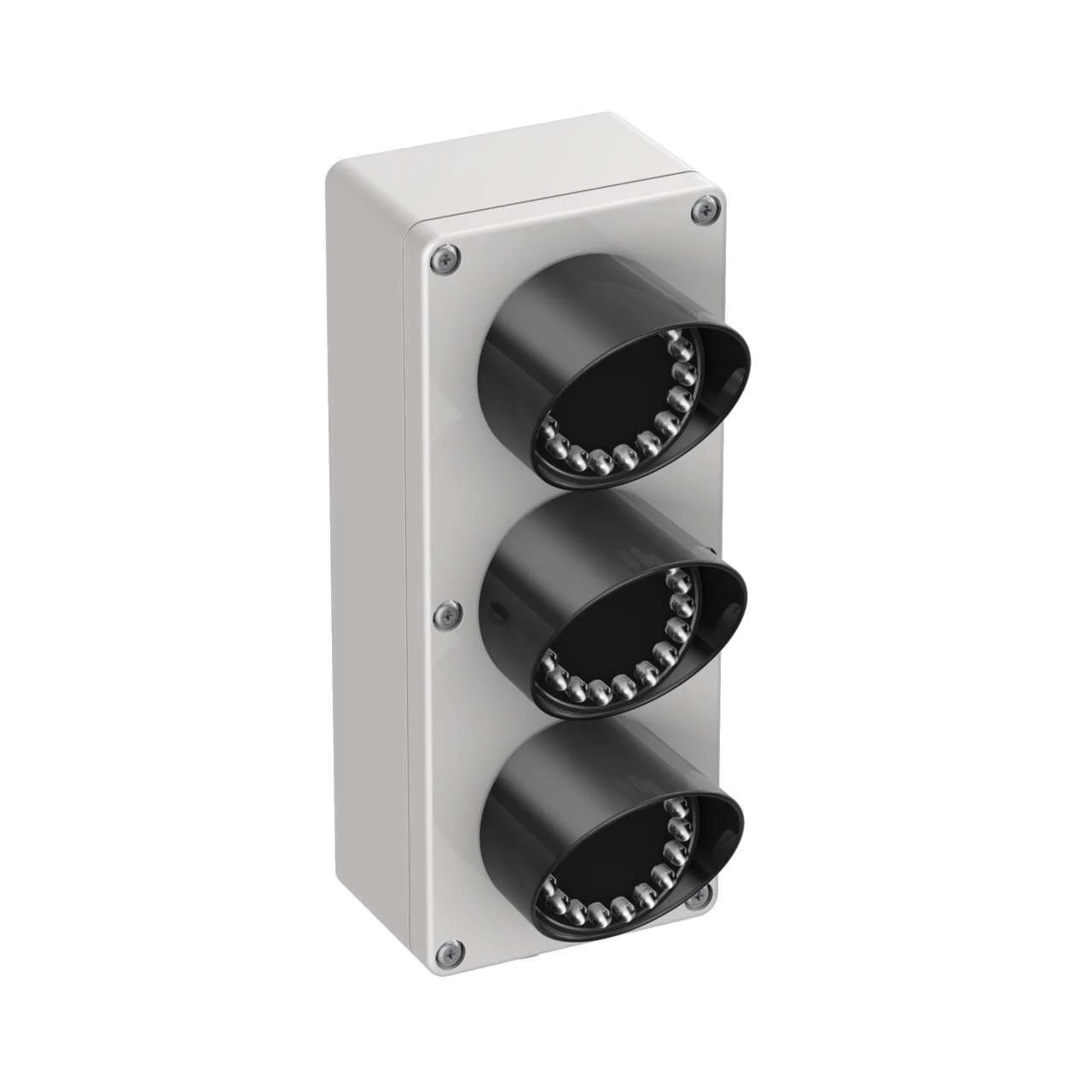

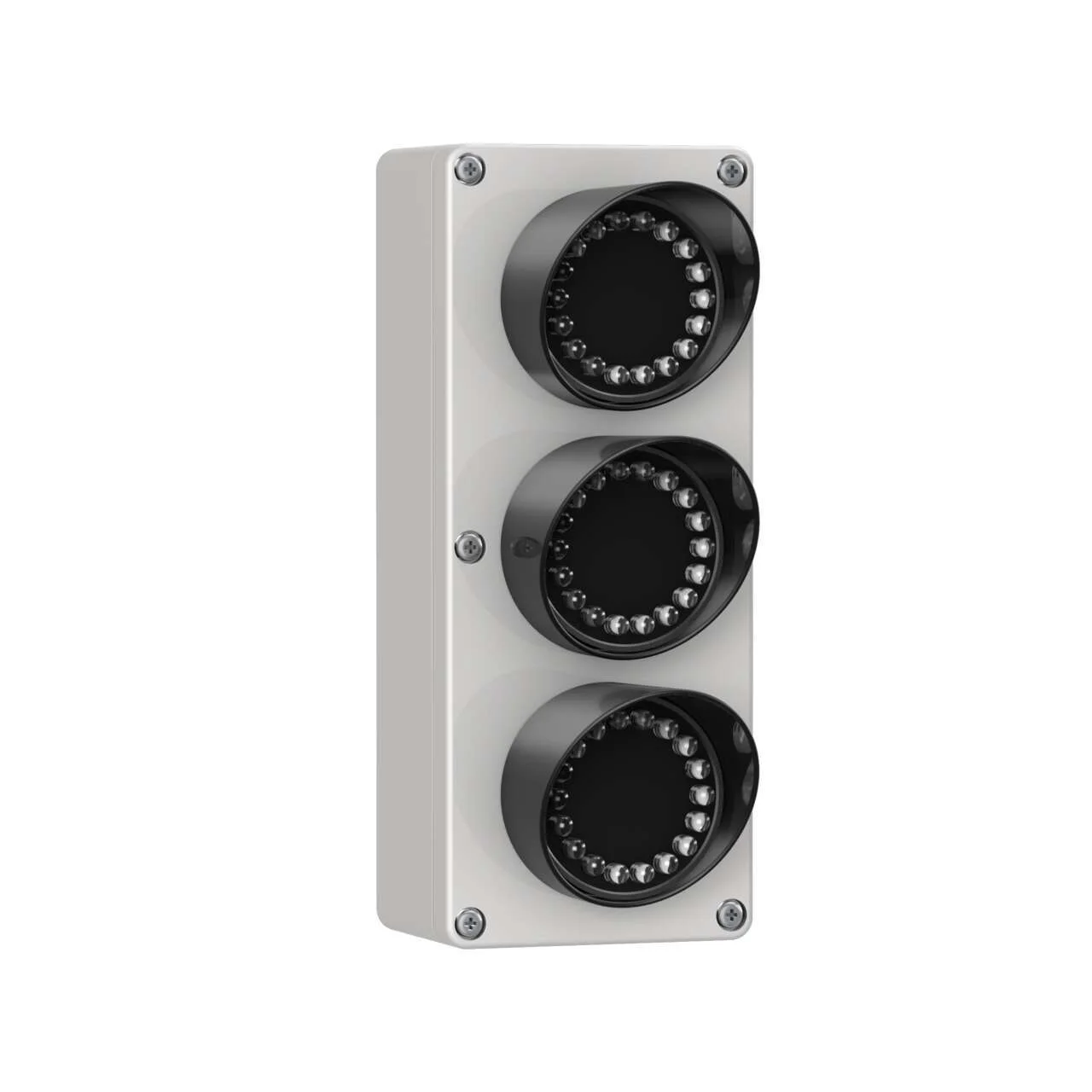

Banner Engineering SP350GYRP
EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible
Voltage: 15-30 V dc; Housing: Polycarbonate; IP65
Input: PNP; Colors: Green Yellow Red
Field Wireable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible
Voltage: 15-30 V dc; Housing: Polycarbonate; IP65
Input: PNP; Colors: Green Yellow Red
Field Wireable
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Display | No |
| Supply Voltage | 15-30 V dc |
| Item Status | RELEASED |
| Housing Style | Flat Mount – Signal Light |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | Other |
| Color Technology | Standard LED |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Terminal |
| Lumens Color 1 | 57.0 |
| Color 1 Wavelength/Color Temp/Coordinates | 528 nm |
| Color Option 2 | Yellow |
| Lumens Color 2 | 14.0 |
| Color 2 Wavelength/Color Temp/Coordinates | 590 nm |
| Color Option 3 | Red |
| Lumens Color 3 | 20.0 |
| Color 3 Wavelength/Color Temp/Coordinates | 625 nm |
| Max Current Color (Ma) | 120 |
| Number Of Input Pins/Conductors | 4 |
| Input Type | PNP |
| I/O Block Compatible | No |
| Max Input Response Time (Ms) | 10 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 195.0 x 80.0 x 105.2 |
| Environmental Rating | IP65 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Feature: Illuminated | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | Yes |
| Feature: Quick Disconnect | No |
| Wireless | No |
| U S B | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 09/27/2025 |
