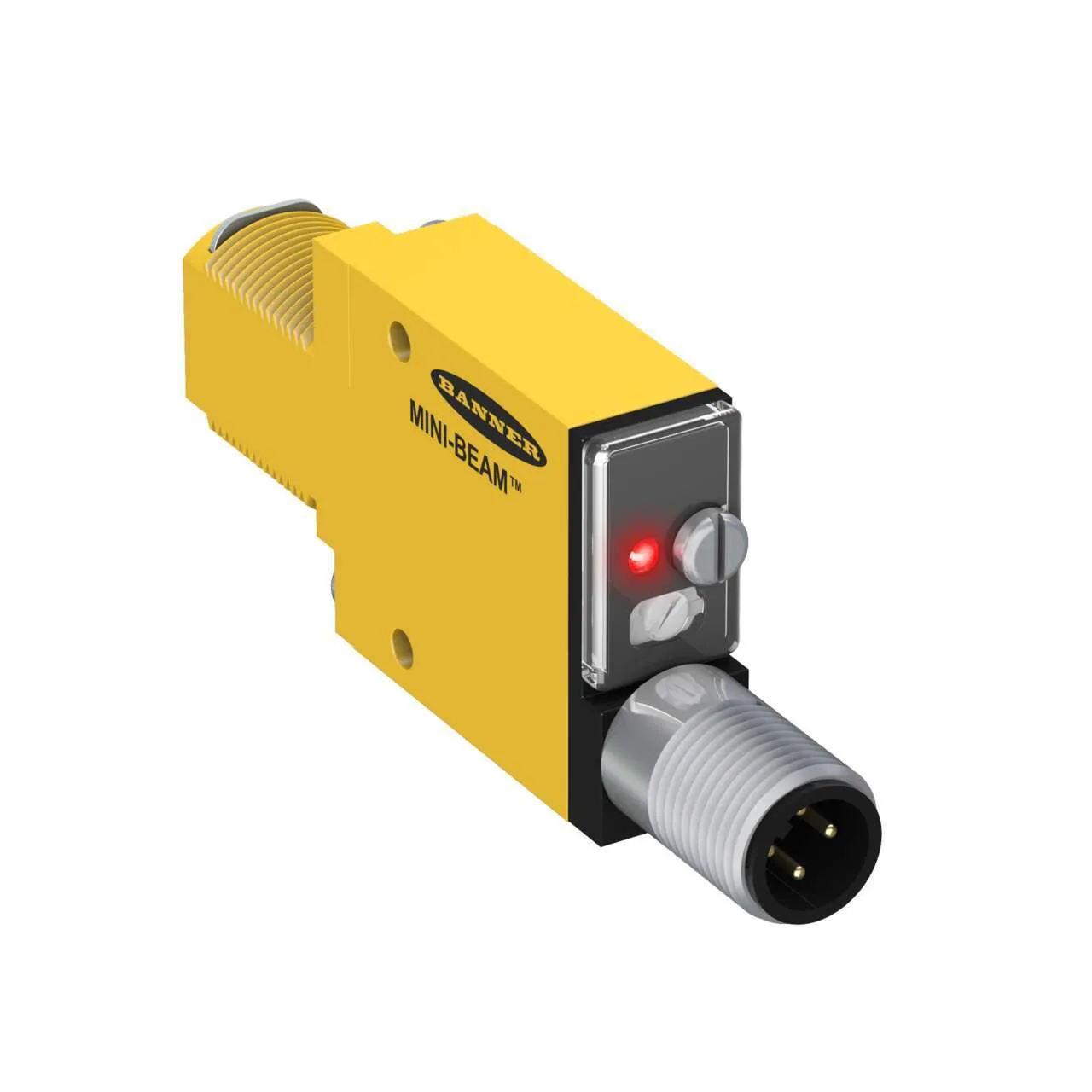

Banner Engineering SM312FVQD

MINI-BEAM: Visible Red 650 nm Glass Fiber Optic. Part number: 26990. model: SM312FVQD. part_number: 26990. list_price: 159 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/69943.pdf. BAN_Housing_Style: Rectangular w/M18 Mount. BANSensors_FOA_FiberType: Glass Only. BANSensors_FOA_Output: Bipolar (NPN & PNP). BANSensors_FOA_SF_Intrinsicall: No. BAN_Connection: Integral QD. BAN_QDType: M12. BAN_CableLength: —. Power: DC. IP Rating: IP67. Accepts Fiber Termination Type: Glass Fiber Termination. NEMA / UL Type Rating: NEMA 4X. Item Status: RELEASED. Housing Style: Rectangular w/M18 Mount. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Color LED – Amplifiers: Red. Fiber Type: Glass Only. Output: Bipolar (NPN & PNP). Connection: Integral QD. Quick Disconnect Type: M12. Output Type (Specific): Single Discrete. Repeatability (µs): 300. Number of Pins: 4. Max Op. Temperature (C): 70. Min Op. Temperature (C): -20. Max Op. Relative Humidity (%): 90% @ 50°C. Special Feature: Remote Teach: No. Intrinsically Safe: No. Adjustments: Potentiometer. Power Supply/Supply Voltage: 10-30 V dc. Delay at Power-up (ms): 100. Indicator Display Type: Indicator LEDs. Minimum response time (ms): 1. Special Feature: Bussable Power: No. Feature: Washdown Rated: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. Housing Material: Thermoplastic. EPLAN Status: Published. EPLAN Original Sent Date: 10/27/2022
