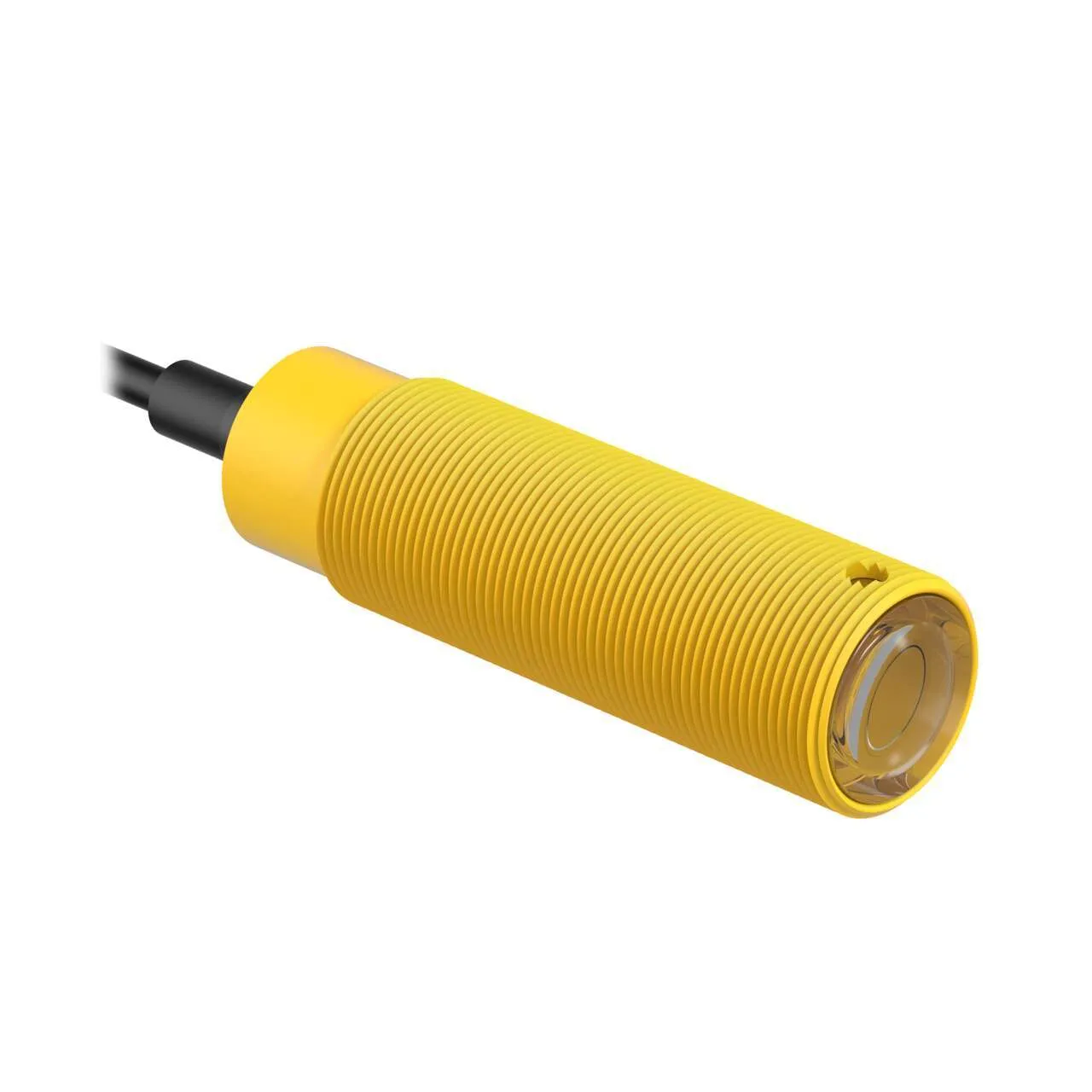

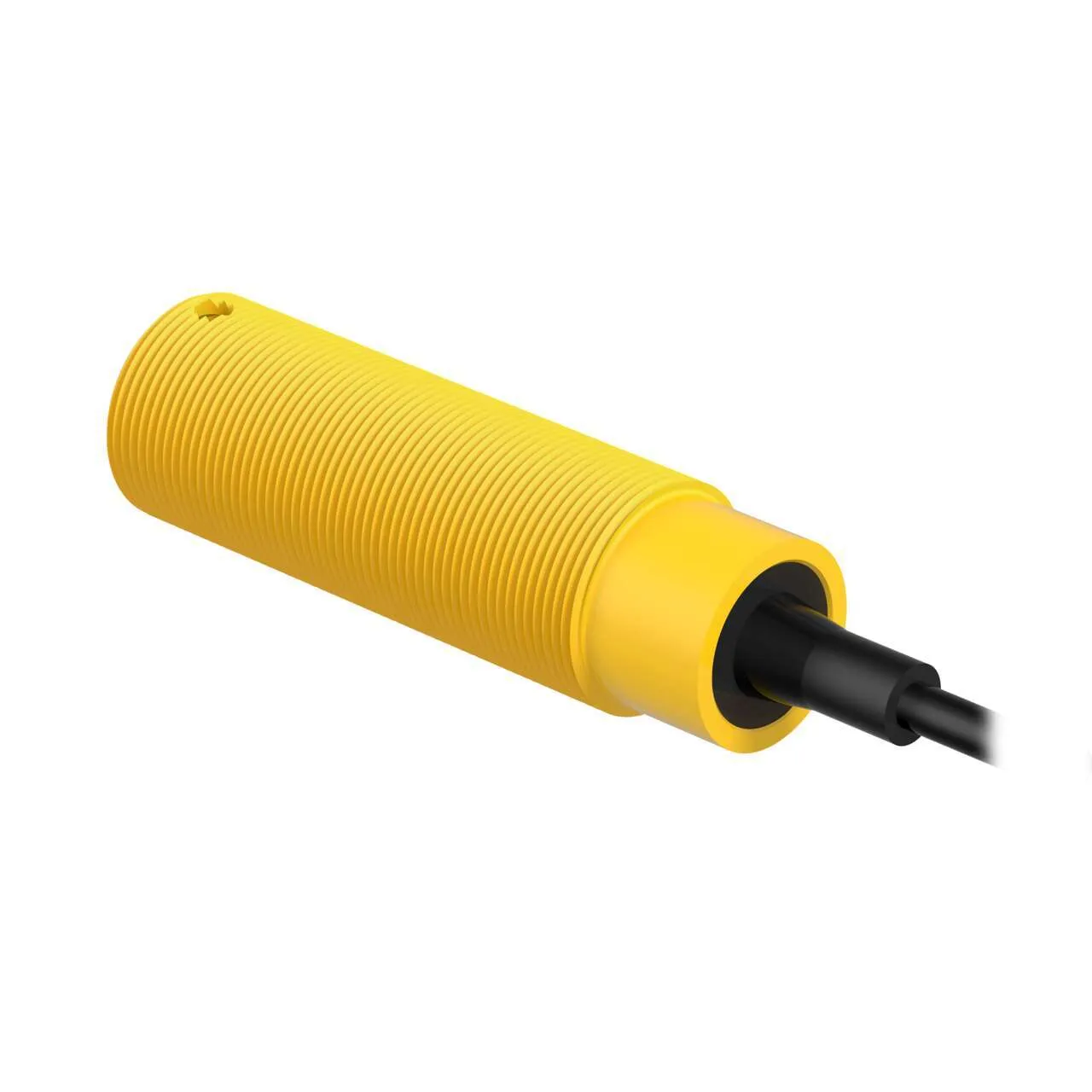

Banner Engineering SM30RW3R W/30

EZ-BEAM SM30 Series: Receiver. Part number: 34169. model: SM30RW3R W/30. part_number: 34169. list_price: 213 USD. is_new: 0. is_in_stock: 0. product_manual: —. BAN_Sensing_Mode_Detailed: Receiver. BAN_IO_General: Solid-State AC Switch. BANSensors_Output: Solid-State AC Switch. BANSensors_Operation: Dark Operate. BAN_Supply_Voltage: 20-250 V ac. BAN_Primary_Housing_Material: Thermoplastic. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 9. BANSensors_ResponseTime: 16 ON/8 OFF. Custom_Group_1839_1839: Feature: Encapsulated. Power: AC. Sensing Beam: Infrared LED. Cable Length (m): 9. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 20-250 V ac. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Receiver. Housing Style: Barrel. Primary Housing Material: Thermoplastic. Input/Output: Solid-State AC Switch. Max Sensing Distance (mm): 150000. Outputs: Solid-State AC Switch. Connection: Cable. Operation: Dark Operate. Min Op. Temperature (C): -40. Max Op. Temp. (C): 70. Output response time (ms): 16 ON/8 OFF. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 880. Delay at Power-up (ms): 100. Repeatability (µs): 2000. Number of Pins: 3. Max Op. Relative Humidity [%]: 90% @ 50°C. Lens Material: Acrylic. Adjustments: N/A. Barrel Diameter (mm): 30. Indicator: LEDs. Opposed Mode Emitter/Receiver: Receiver. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. DeviceNet: No
