Banner Engineering SM30PRLEQD

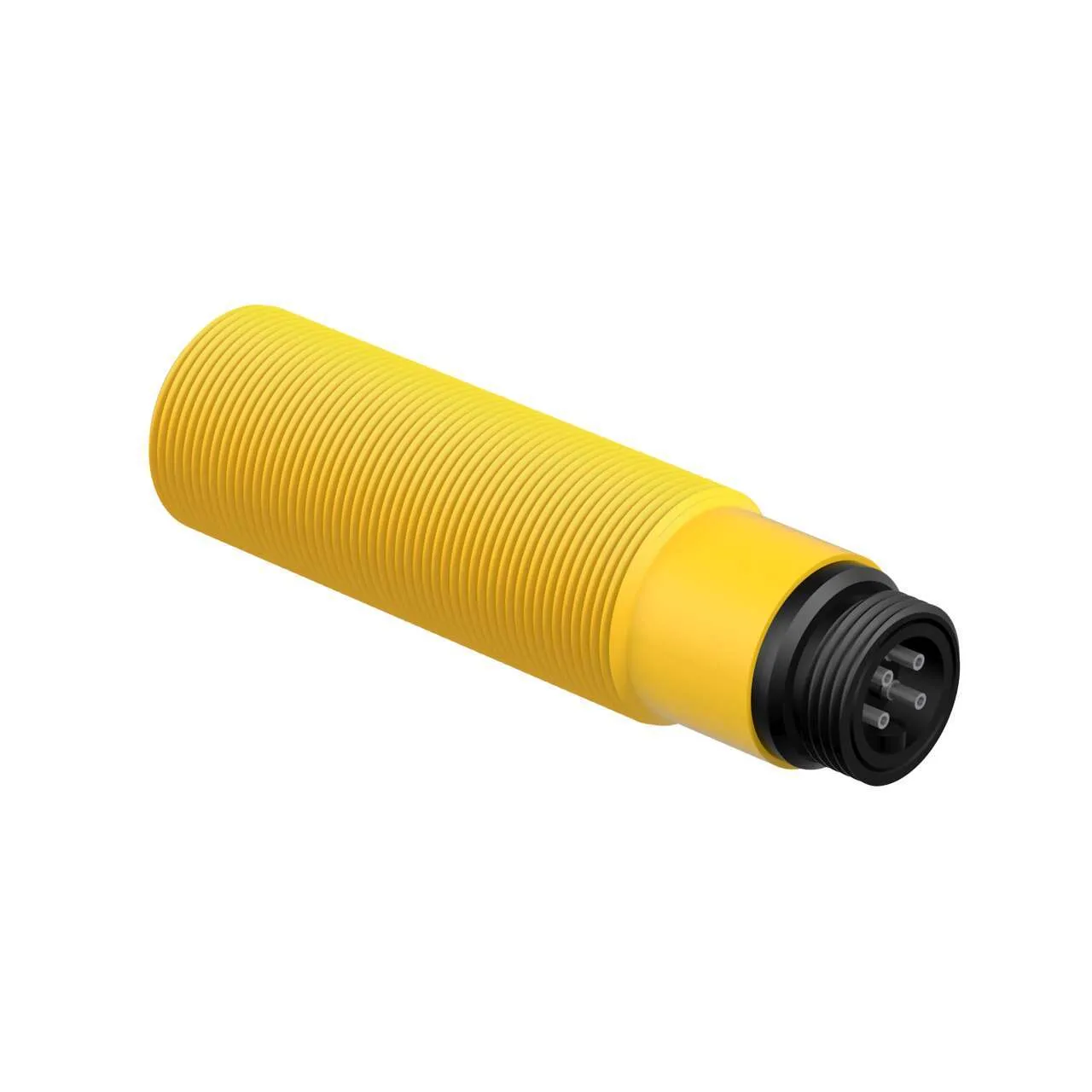

SM30 Series: Plastic Barrel Receiver/Emitter. Part number: 37146. model: SM30PRLEQD. part_number: 37146. list_price: 495 USD. is_new: 0. is_in_stock: 1. product_manual: —. BAN_Sensing_Mode_Detailed: Emitter/Receiver Pair. BAN_IO_General: Discrete. BANSensors_Output: Bipolar (NPN & PNP). BANSensors_Operation: Light/Dark Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_Primary_Housing_Material: Thermoplastic. BAN_Connection: Integral QD. BAN_QDType: 7/8 in. (Mini). BAN_CableLength: —. BANSensors_ResponseTime: 10. Custom_Group_1839_1839: Feature: Encapsulated. Power: DC. Sensing Beam: Infrared LED. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Emitter/Receiver Pair. Housing Style: Barrel. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Max Sensing Distance (mm): 150000. Outputs: Bipolar (NPN & PNP). Connection: Integral QD. Quick Disconnect Type: 7/8 in. (Mini). Operation: Light/Dark Operate. Min Op. Temperature (C): -40. Max Op. Temp. (C): 70. Output response time (ms): 10. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Delay at Power-up (ms): N/A. Repeatability (µs): 1000. Number of Pins: 4. Max Op. Relative Humidity [%]: 90% @ 50°C. Lens Material: Acrylic. Adjustments: N/A. Barrel Diameter (mm): 30. Indicator: LEDs. Opposed Mode Emitter/Receiver: Pair. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No
