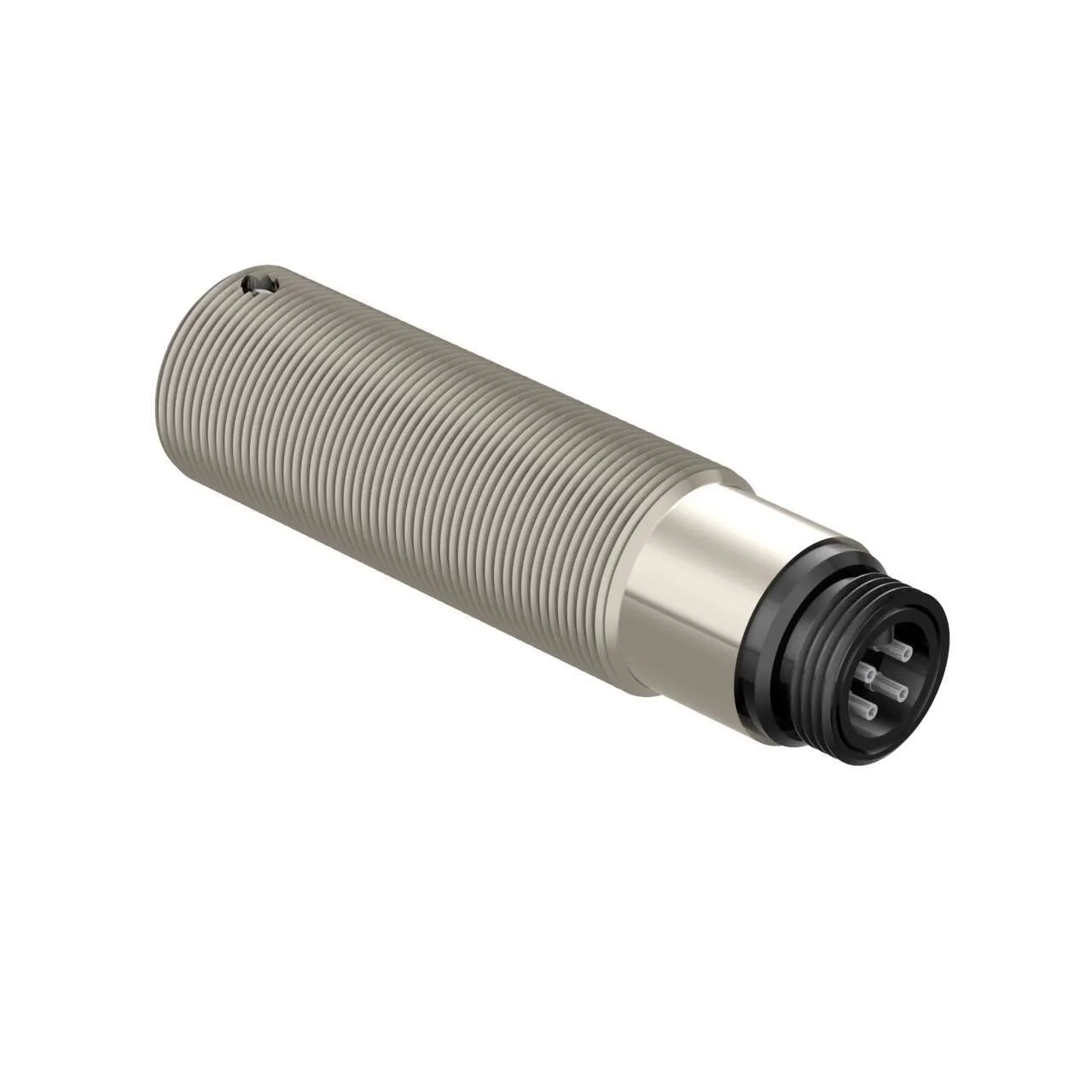

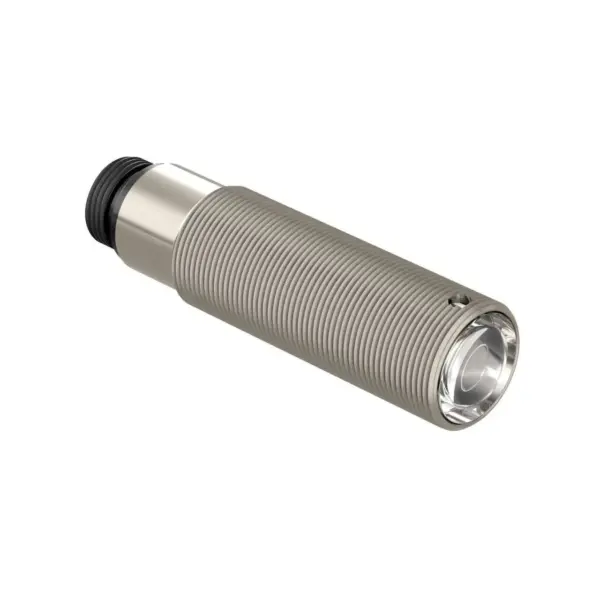

Banner Engineering SM2A30SRLNCQDC

SM30 Series: Receiver – Frequency C Stainless Stl. Part number: 35913. model: SM2A30SRLNCQDC. part_number: 35913. list_price: 383 USD. is_new: 0. is_in_stock: 0. product_manual: —. BAN_Sensing_Mode_Detailed: Receiver. BAN_IO_General: Solid-State AC Switch. BANSensors_Output: Solid-State AC Switch. BANSensors_Operation: Dark Operate. BAN_Supply_Voltage: 24-240 V ac. BAN_Primary_Housing_Material: Stainless Steel. BAN_Connection: Integral QD. BAN_QDType: 7/8 in. (Mini). BAN_CableLength: —. BANSensors_ResponseTime: 10. Custom_Group_1839_1839: Feature: EncapsulatedFeature: Chemical Resistant. Power: AC. Sensing Beam: Infrared LED. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 24-240 V ac. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Receiver. Housing Style: Barrel. Primary Housing Material: Stainless Steel. Input/Output: Solid-State AC Switch. Max Sensing Distance (mm): 150000. Outputs: Solid-State AC Switch. Connection: Integral QD. Quick Disconnect Type: 7/8 in. (Mini). Operation: Dark Operate. Min Op. Temperature (C): -40. Max Op. Temp. (C): 70. Output response time (ms): 10. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Delay at Power-up (ms): N/A. Repeatability (µs): 2300. Number of Pins: 3. Max Op. Relative Humidity [%]: 90% @ 50°C. Lens Material: Acrylic. Adjustments: N/A. Barrel Diameter (mm): 30. Indicator: LEDs. Opposed Mode Emitter/Receiver: Receiver. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: Yes. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No
