Banner Engineering SLPCP25-410AP88

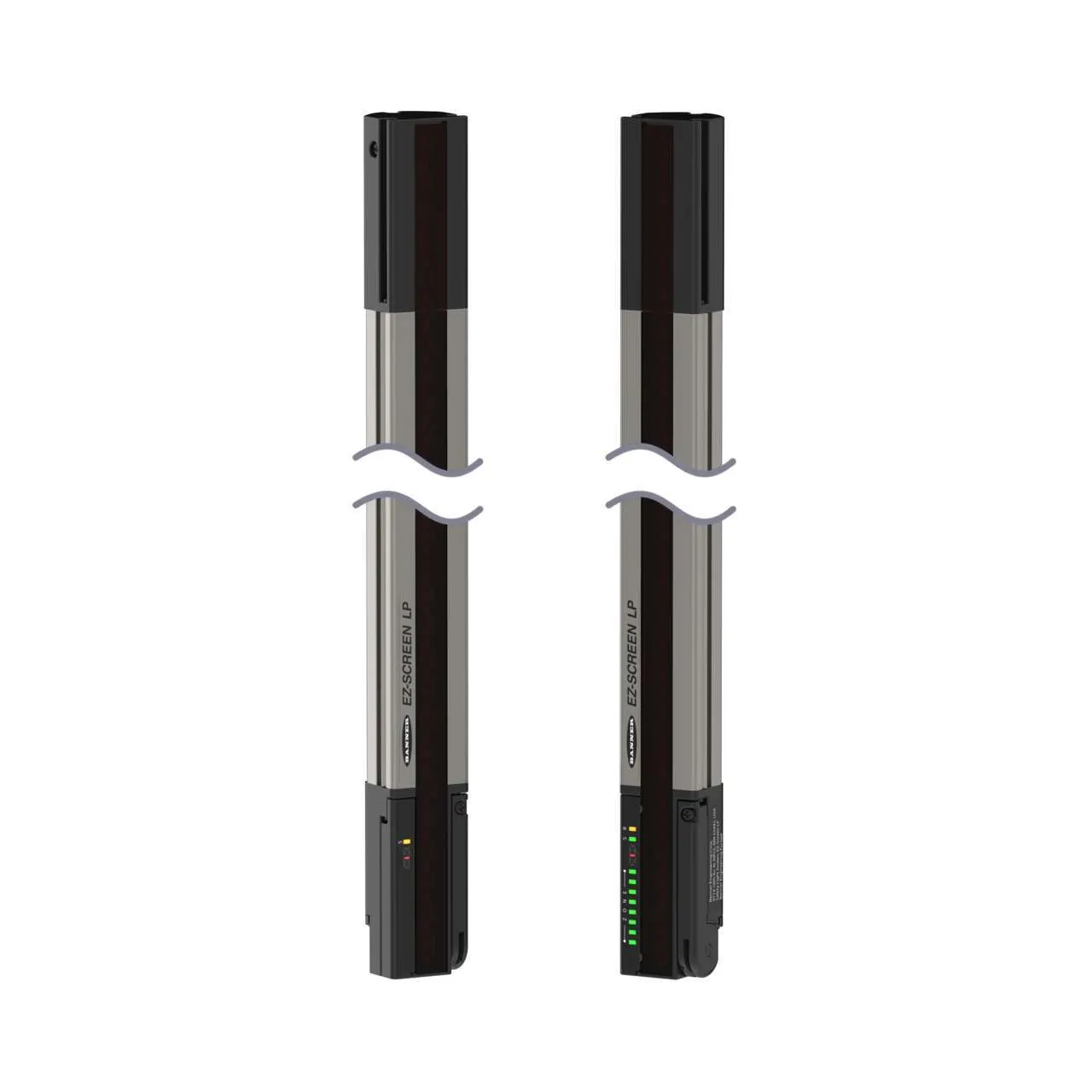

SLPCP25-410 AP88 EZS LP PAIR 25 mm x 410 mm CASCADE PIGTAIL. Part number: 84092. model: SLPCP25-410AP88. part_number: 84092. list_price: 1998 USD. is_new: 0. is_in_stock: 0. product_manual: https://in…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SLPCP25-410 AP88 EZS LP PAIR 25 mm x 410 mm CASCADE PIGTAIL. Part number: 84092. model: SLPCP25-410AP88. part_number: 84092. list_price: 1998 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/140044.pdf. BAN_Safety_LC_Resolution: 25. BAN_Safety_DefinedArea: 410. BAN_Cascade: Yes. BAN_Safety_LC_Conn_Type: M12 Pigtail (Yellow). BAN_Integrated_Muting: No. BAN_ESD_Safe: No. Low Profile: Yes. Max Operating Range (m): >4 – 350 –
Specification
| Model | SLPCP25-410AP88 |
|---|---|
| Part_number | 84092, https://www.bannerengineering.com/us/en/products/part.84092.html |
| List_price | 1998 USD |
| Is_new | |
| Is_in_stock | |
| Product_manual | https://info.bannerengineering.com/cs/groups/public/documents/literature/140044.pdf |
| BAN_Safety_LC_Resolution | 25 |
| BAN_Safety_DefinedArea | 410 |
| BAN_Cascade | Yes |
| BAN_Safety_LC_Conn_Type | M12 Pigtail (Yellow) |
| BAN_Integrated_Muting | No |
| BAN_ESD_Safe | No |
| Low Profile | Yes |
| Max Operating Range (m) | >4 – <=8 |
| Defined Area Height Range (mm) | >350 – <=650 |
| IP Rating | IP65 |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Primary Housing Material | Aluminum |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Connector Type | M12 Pigtail (Yellow) |
| Defined Area Height (mm) | 410 |
| Dimensions WxD (mm) | 28 x 26 |
| Overall Length (mm) | 410 |
| External Monitoring Device | 1 or 2 Channel |
| Fixed Blanking | Yes |
| Housing Finish | Clear Anodized |
| Number of Pins (Receiver/Emitter) | 8 |
| Operating Distance (m) | 0.1 – 7 |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| PL Rating | Ple |
| Recovery Time | 25-152 / 81-495 |
| Resolution (mm) | 25 |
| Reduced Resolution | Yes |
| Response Time | 9.5 |
| SIL Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| System Type | Emitter/Receiver Pair |
| Vibration | 10-55 Hz at 0.35 mm |
| Auxiliary Output | Yes |
| Fault Output | Yes |
| Housing Material | Aluminum; Zinc; Acrylic |
| OSSD Rating | 24 V dc at 0.5 A each |
| Supply Current | 210 mA max. |
| Trip/Latch Output | Selectable |
| Test Input | Yes |
| Feature: Washdown Rated | No |
| Feature: Cascade | Yes |
| Feature: End-to-End Sensing | Yes |
| Feature: ESD Safe | No |
| Feature: Integral Muting | No |
