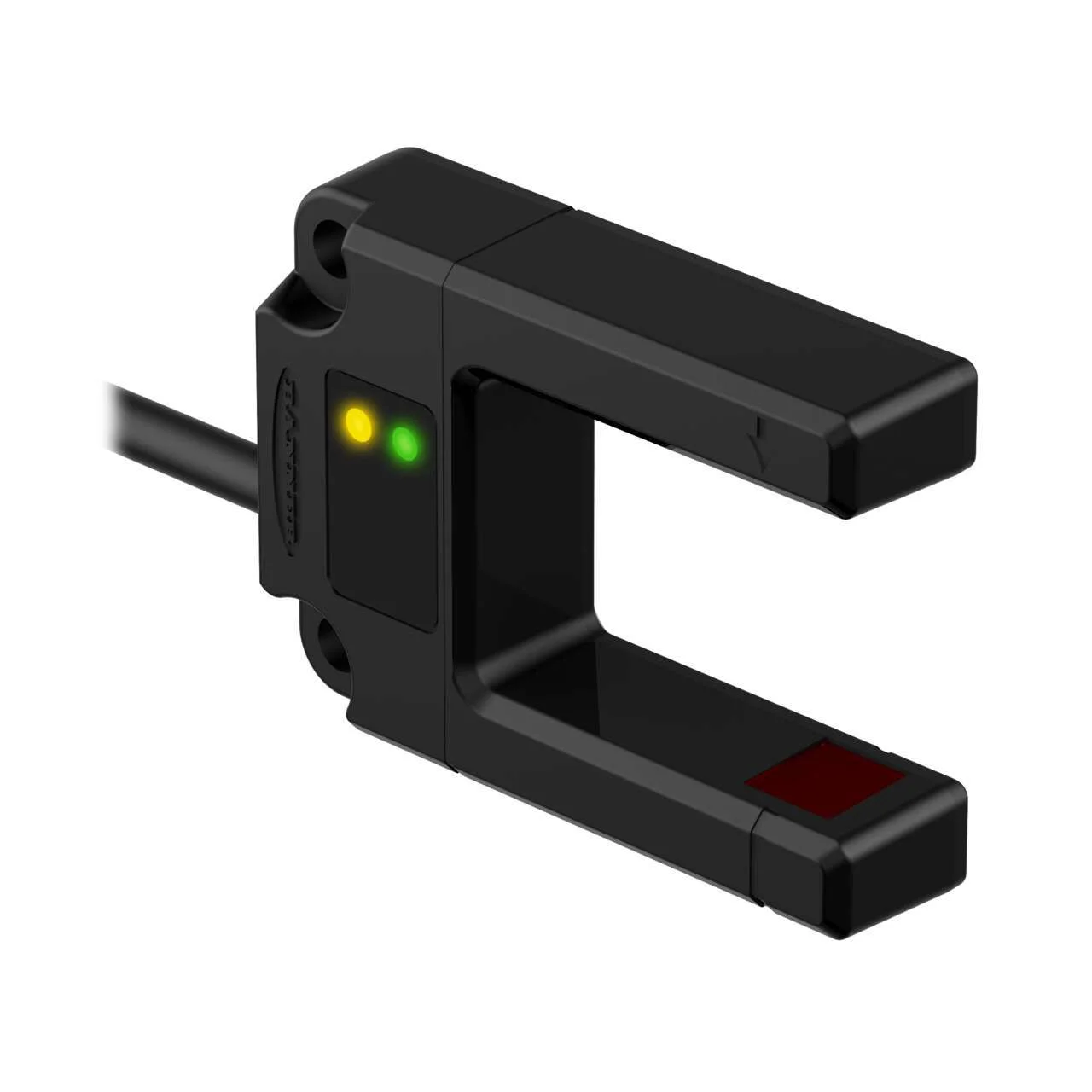

Banner Engineering SLO30VB6YQPMA13LO
SLO30 VB6YQPMA13LO 700 MA 4-PIN 6 in PUR MALE M12
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SLO30 VB6YQPMA13LO 700 MA 4-PIN 6 in PUR MALE M12
Specification
| Cable Length (M) | 0.2 |
|---|---|
| Ip Rating | IP67 |
| Nema / Ul Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Housing Style | Slot |
| Primary Housing Material | Thermoplastic |
| Max Sensing Range (Mm) | 30 |
| Slot Depth/Array Length (Mm) | 45 |
| Connection | Pigtail PUR QD |
| Minimum Object Detection [Mm] | 2 |
| Quick Disconnect Type | M12 |
| Outputs | Bipolar (NPN & PNP) |
| Slot Overall Depth (Mm) | 72 |
| Number Of Pins | 4 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Output Response Time (Ms) | 0.3 |
| Repeatability (µS) | 75 |
| Adjustments | N/A |
| Lens Material | Acrylic |
| Special Feature: Remote Teach | No |
| Operation | Light Operate |
| Indicator | LEDs |
| Max Op. Temperature (C) | 70 |
| Min Op. Temperature (C) | -40 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Feature: Quick Disconnect | Yes |
