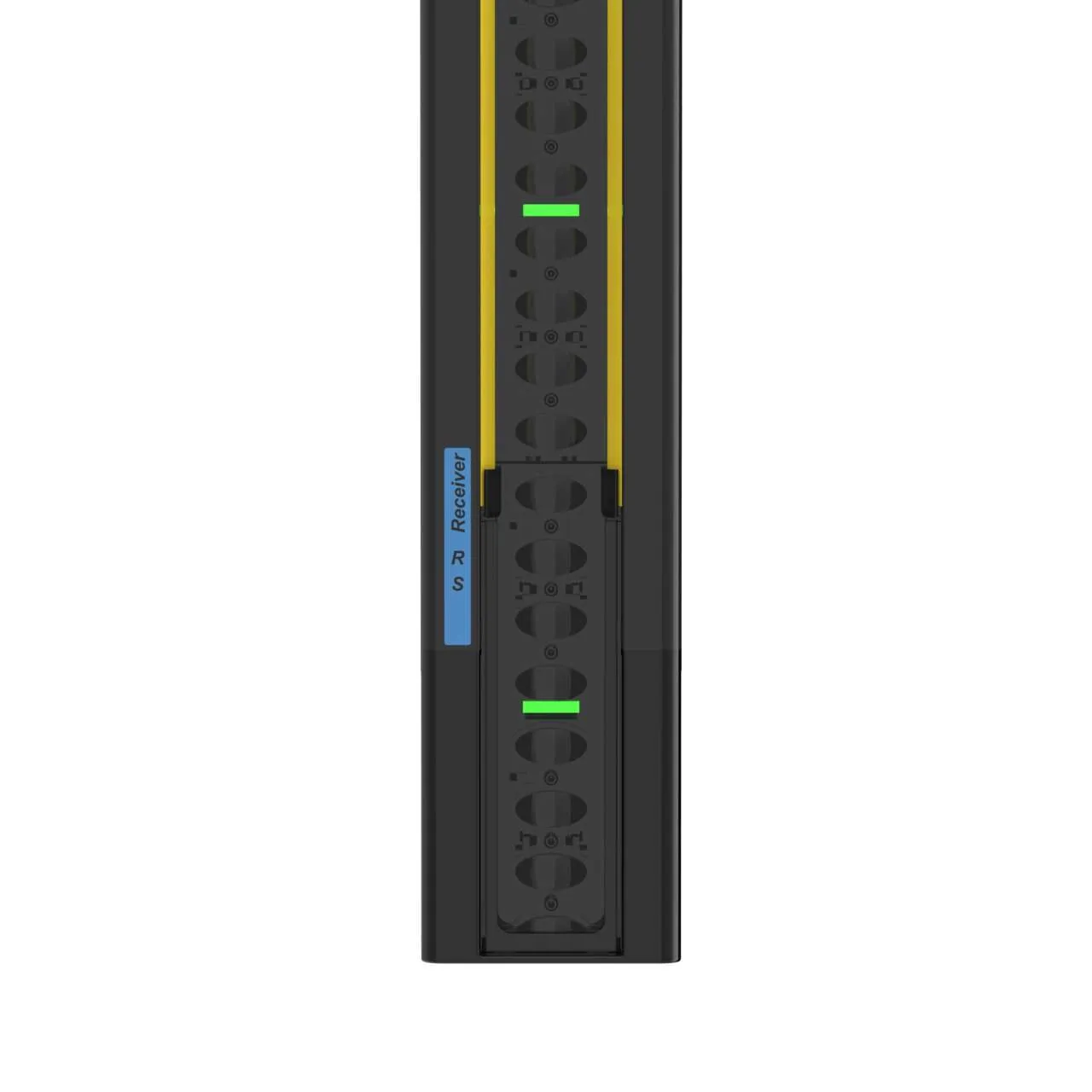

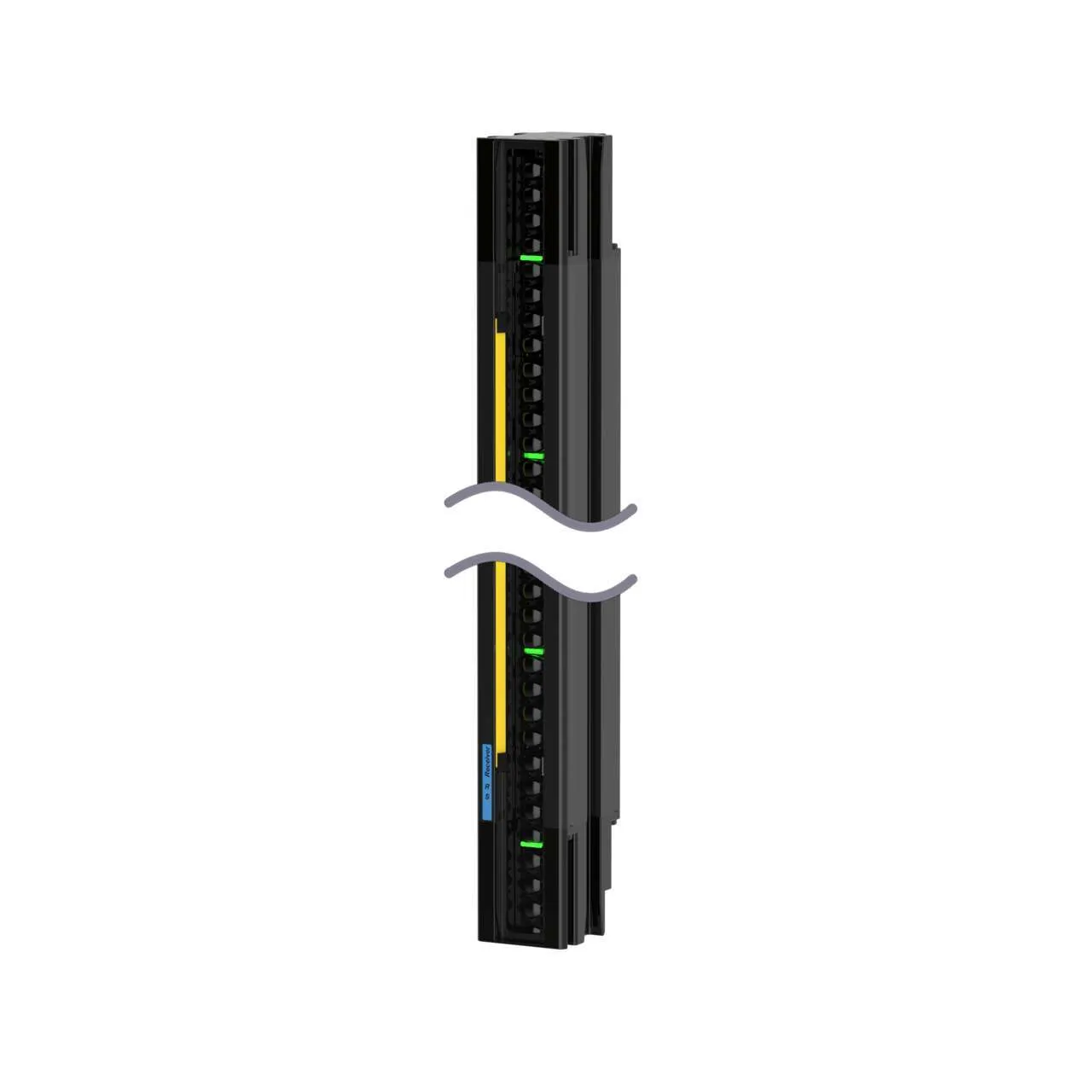

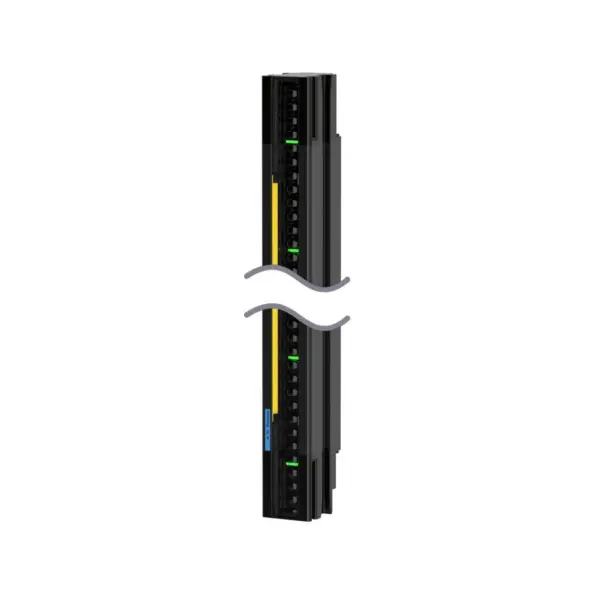

Banner Engineering SLLR40-1610-S

EZ-SCREEN LS, Receiver Resolution: 40 mm; Range: 12 m (40 ft) Defined Area: 1610 mm (63.4 in); Housing: Black Connection: Removable Disconnect (RD) Mounting Hardware and Cable/M12 Pigtail Ordered Separately. Part number: 809148. Max Operating Range (m): >8 – 1300. IP Rating: IP65, IP67. Supply Voltage: 24 V dc. Item Status: RELEASED. Primary Housing Material: Aluminum. Safety Level: Type 4. Effective Aperture Angle: Type 4 Per IEC 61496-2. Connector Type: Removable Disconnect. Defined Area Height (mm): 1610. Dimensions WxD (mm): 36 x 45. Overall Length (mm): 1612. External Monitoring Device: 1 Channel. Fixed Blanking: No. Housing Finish: Black Anodized. Operating Distance (m): 0.1 – 12. Operating Temperature: -20 to +55 deg. C; RH 95%. PL Rating: Ple. Recovery Time: 61 / 206. Resolution (mm): 40. Reduced Resolution: No. SIL Rating: SIL3; CL3. Electrical Safety Class: III. Scan Code: Selectable. Shock: 10g at 16ms (6000 cycles). Short Protection: Yes. System Type: Receiver. Vibration: 10-55 Hz at 0.35 mm. Auxiliary Output: No. Fault Output: Yes. Housing Material: Aluminum; Zinc; Acrylic. OSSD Rating: 24 V dc at 0.5 A each. Supply Current: 110 mA Typical. Trip/Latch Output: Trip. Test Input: No. Feature: Washdown Rated: No. Feature: Cascade: No. Feature: End-to-End Sensing: Yes. Feature: ESD Safe: No. Feature: Integral Muting: No
