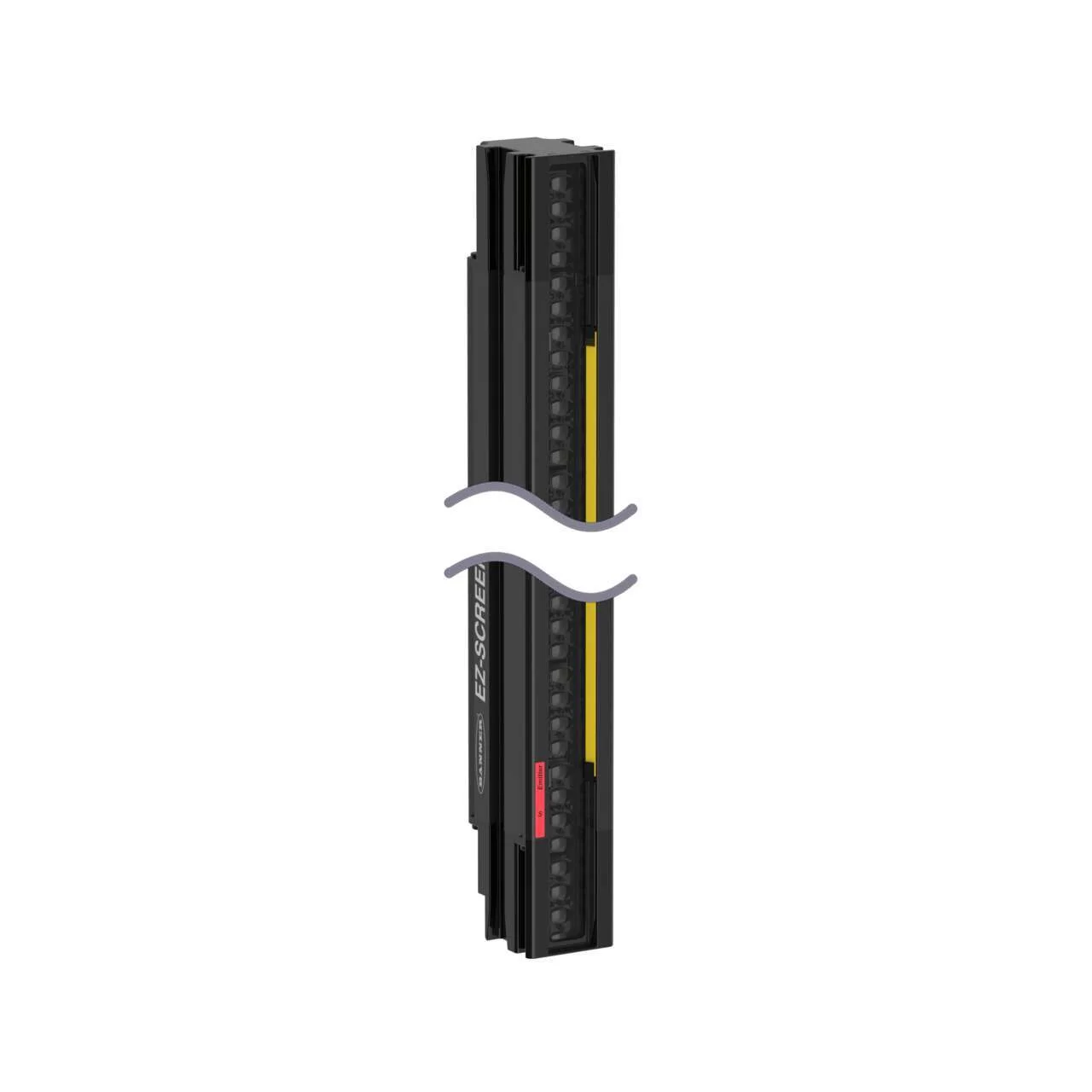

Banner Engineering SLLCE40-490-S
EZ-SCREEN LS Cascade, Emitter
Resolution: 40 mm; Range: 12 m (40 ft)
Defined Area: 490 mm (19.3 in); Housing: Black
Connection: Removable Disconnect (RD)
Mounti…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
EZ-SCREEN LS Cascade, Emitter
Resolution: 40 mm; Range: 12 m (40 ft)
Defined Area: 490 mm (19.3 in); Housing: Black
Connection: Removable Disconnect (RD)
Mounting Hardware and Cable/M12 Pigtail Ordered Separately
Specification
| Max Operating Range (M) | >8 – <=20 |
|---|---|
| Defined Area Height Range (Mm) | >350 – <=650 |
| Ip Rating | IP65, IP67 |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Primary Housing Material | Aluminum |
| Safety Level | Type 4 |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Connector Type | Removable Disconnect |
| Defined Area Height (Mm) | 490 |
| Dimensions Wxd (Mm) | 36 x 45 |
| Overall Length (Mm) | 495 |
| External Monitoring Device | No |
| Housing Finish | Black Anodized |
| Operating Distance (M) | 0.1 – 12 |
| Operating Temperature | -20 to +55 deg. C; RH 95% |
| Pl Rating | Ple |
| Recovery Time | 32 / 110 |
| Resolution (Mm) | 40 |
| Reduced Resolution | No |
| Sil Rating | SIL3; CL3 |
| Electrical Safety Class | III |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| System Type | Emitter |
| Vibration | 10-55 Hz at 0.35 mm |
| Auxiliary Output | No |
| Fault Output | Yes |
| Housing Material | Aluminum; Zinc; Acrylic |
| Ossd Rating | N/A |
| Supply Current | 25 mA Typical |
| Trip/Latch Output | N/A |
| Test Input | No |
| Feature: Washdown Rated | No |
| Feature: Cascade | Yes |
| Feature: End To End Sensing | Yes |
| Feature: Esd Safe | No |
| Feature: Integral Muting | No |
