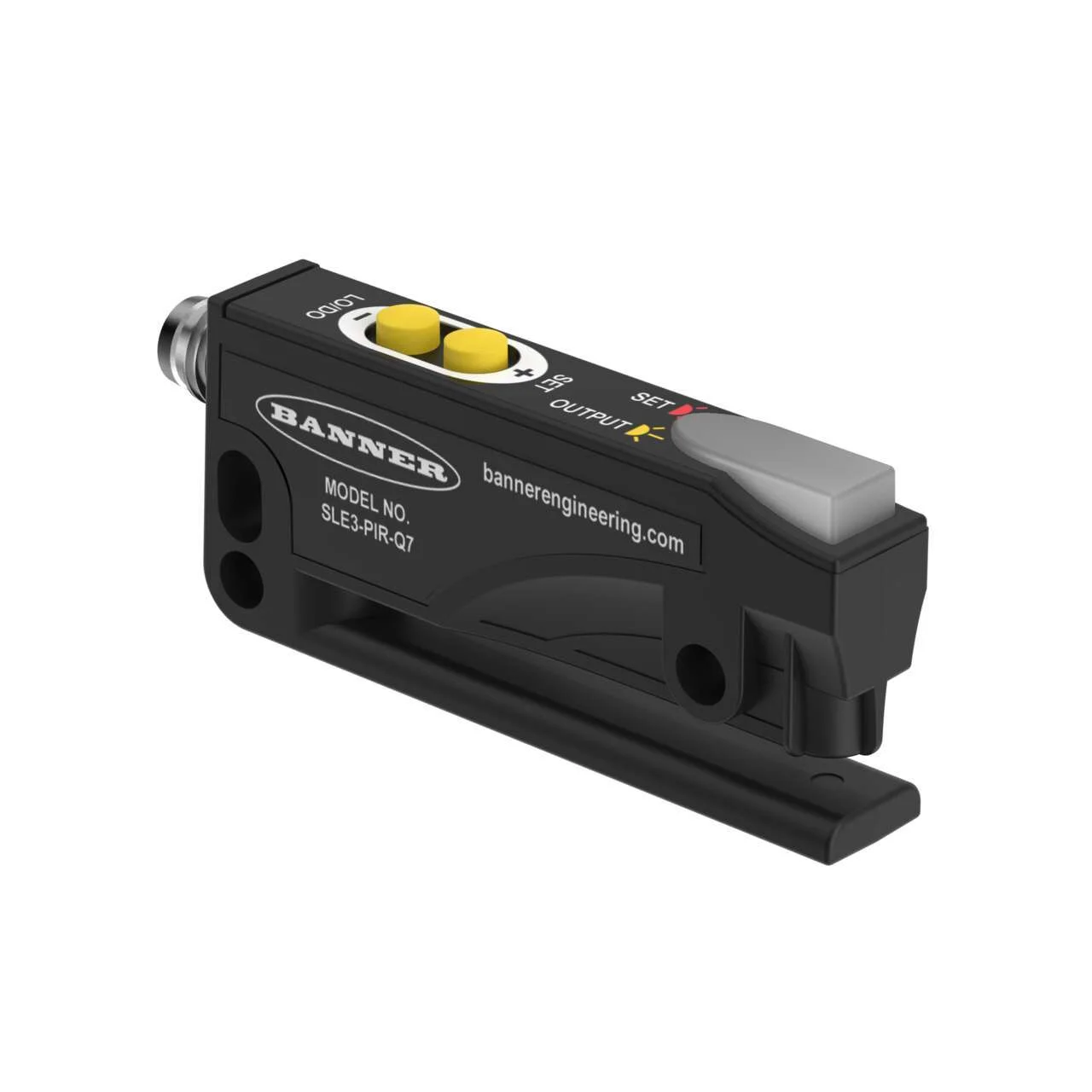

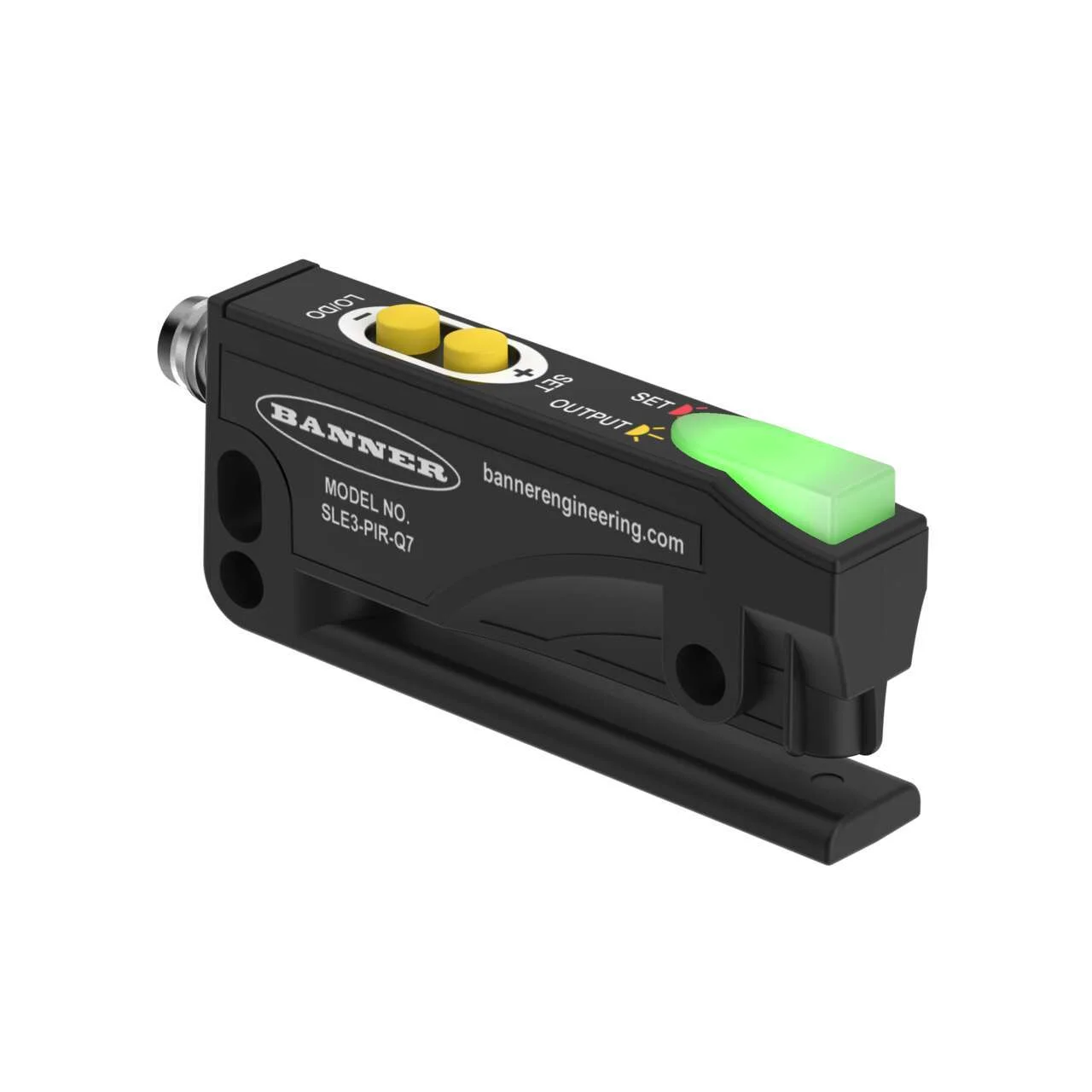

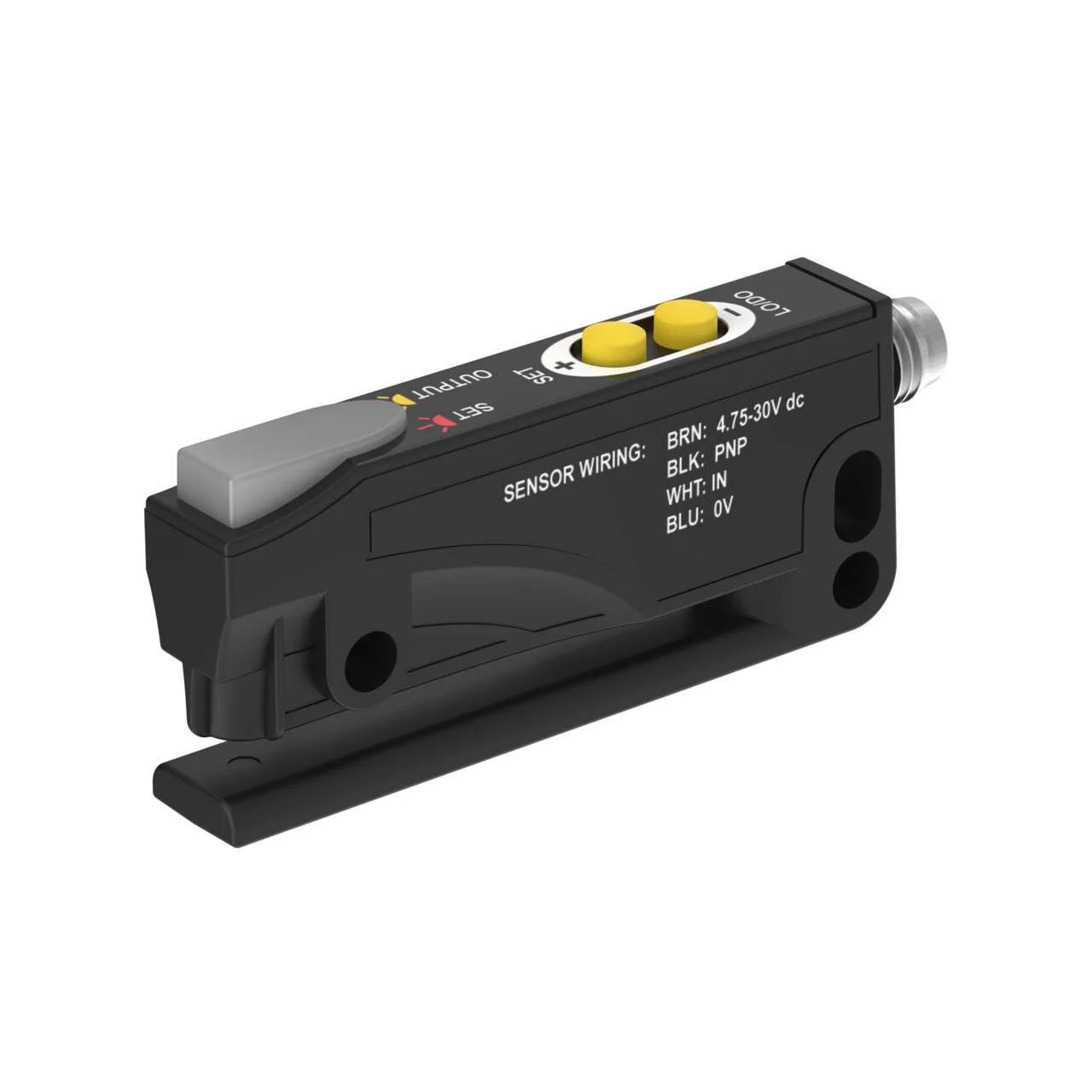

Banner Engineering SLE3-PIR-Q7
SLE3 Series: Label Sensor
Slot width: 3 mm; Input: 4.75-30 V dc
Output: PNP
4-pin M8 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SLE3 Series: Label Sensor
Slot width: 3 mm; Input: 4.75-30 V dc
Output: PNP
4-pin M8 Integral QD
Specification
| Ip Rating | IP65 |
|---|---|
| Nema / Ul Type Rating | N/A |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Emitter/Receiver Pair |
| Housing Style | Label |
| Primary Housing Material | Polycarbonate |
| Max Sensing Range (Mm) | 3 |
| Slot Depth/Array Length (Mm) | 44 |
| Connection | Integral QD |
| Quick Disconnect Type | M8 |
| Outputs | PNP |
| Slot Overall Depth (Mm) | 44 |
| Number Of Pins | 4 |
| Power Supply/Supply Voltage | 4.75-30 V dc |
| Output Response Time (Ms) | 0.04 |
| Adjustments | Teach Button |
| Lens Material | N/A |
| Special Feature: Remote Teach | Yes |
| Delay At Power Up (Ms) | N/A |
| Operation | Light/Dark Operate |
| Indicator | LEDs |
| Max Op. Temperature (C) | 70 |
| Min Op. Temperature (C) | -40 |
| Feature: Quick Disconnect | Yes |
| Number Of Beams | 1 |
