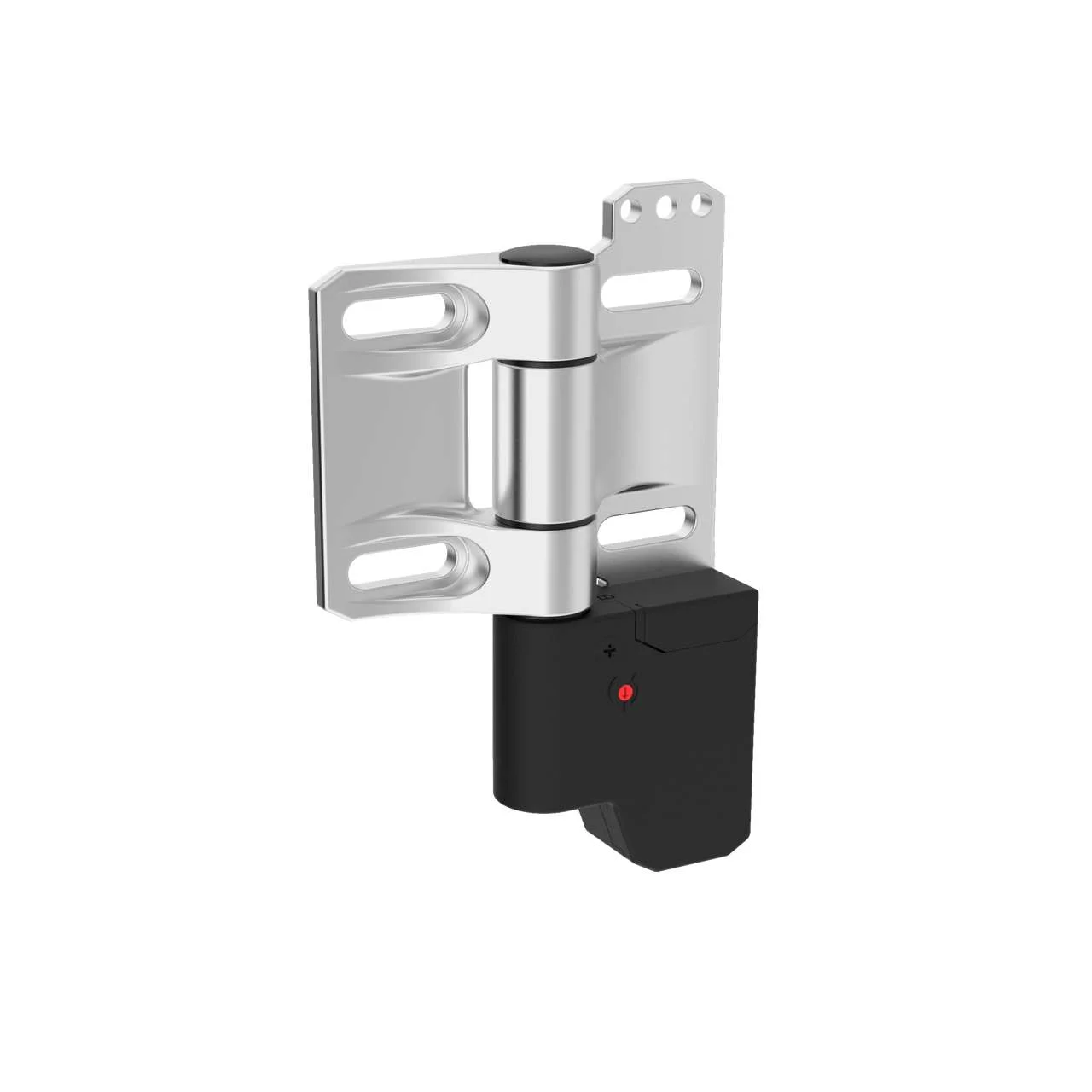

Banner Engineering SI-HGZ63FQDRR
Hinge Safety Interlock Switch
Zinc Die-Cast
Right-angle QD; Switch Mounted Right Side w/ Switch body Down
2 NC/1 NO; Micro M12 6-pin (Dual Key) QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Hinge Safety Interlock Switch
Zinc Die-Cast
Right-angle QD; Switch Mounted Right Side w/ Switch body Down
2 NC/1 NO; Micro M12 6-pin (Dual Key) QD
Specification
| Isd Connect Compatible | Yes |
|---|---|
| Ip Rating | IP67 |
| Item Status | RELEASED |
| Switch Style | Contact |
| Device Type | Hinge |
| Primary Housing Material | Zinc Alloy Die-Cast |
| In Series Diagnostics | No |
| Device Size | 128 x 82 x 20 |
| Device Shape | Hinge |
| Min Op. Temperature (C) | -25 |
| Max Op. Temperature (C) | 70 |
| Pl Rating | PL e |
| Sil Rating | SIL CL 3 |
| Safety Category | Cat 4 |
| S I S T E M A | B10d = 2 million |
| Actuator (Safety) Contacts | 2 NC/1 NO |
| Monitor (Locked) Contacts | N/A |
| Output Type | Contacts |
| Connection Type | M12 |
| Quick Disconnect Type | M12 |
| Feature: Washdown Rated | Yes |
| Feature: Cascade | No |
| Feature: Lockable | No |
| Feature: Quick Disconnect | Yes |
| Number Of Pins | 6 |
| Switch Point Positioning | Re-Positionable |
| Coding Level/Tamper Resistance | Uncoded |
| Range Of Motion | 270 |
| Mechanical Life (Operations In Millions) | 1 |
| Auxilliary Output | No |
