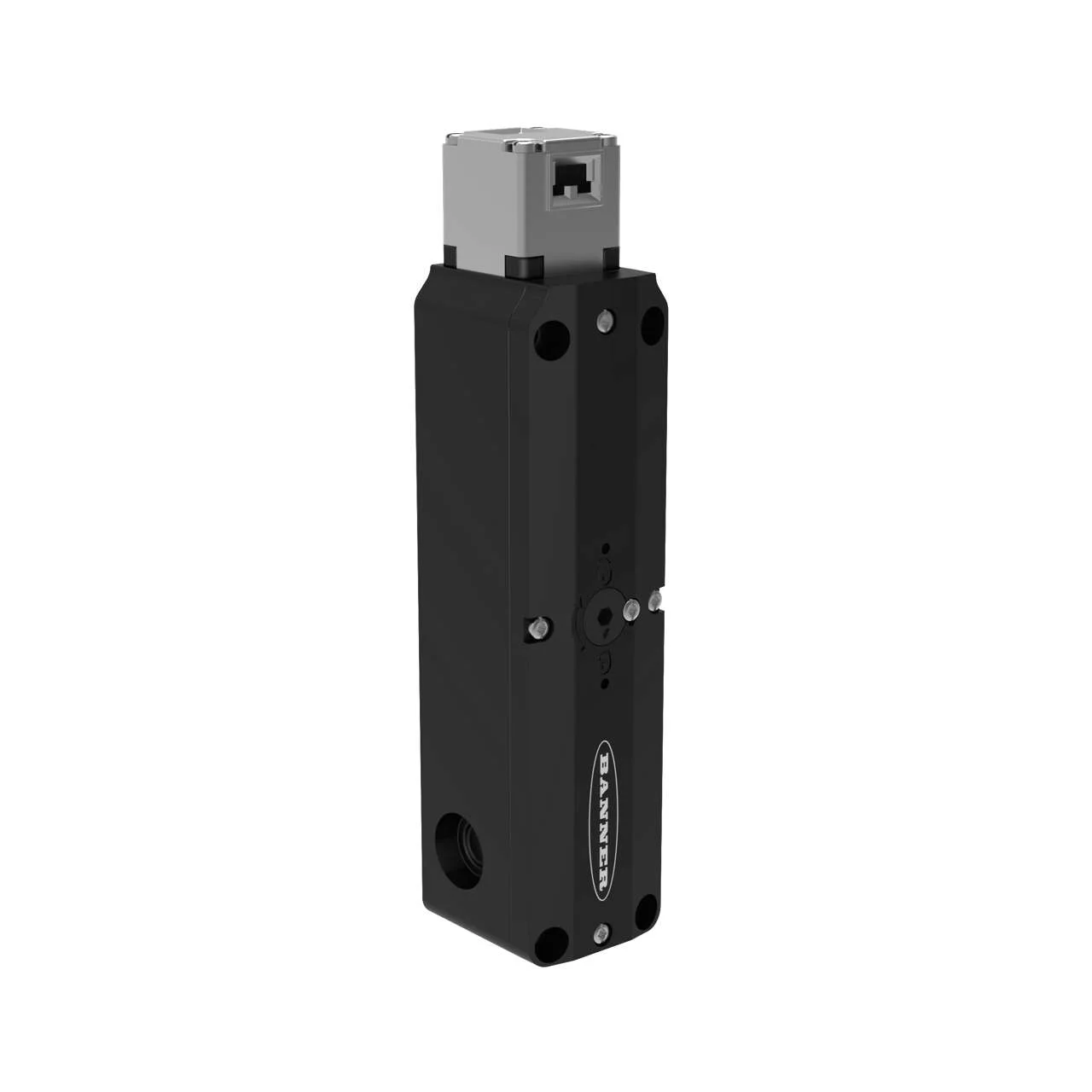

Banner Engineering SI-GL42DM11-11
SI-GL42 Series Safety Interlock Switch
Solenoid Lock/Spring Unlock; 24 V DC
Contact Configuration: Actuator: 1NC/1NO, Monitor: 1NC/1NO
Connector: None
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SI-GL42 Series Safety Interlock Switch
Solenoid Lock/Spring Unlock; 24 V DC
Contact Configuration: Actuator: 1NC/1NO, Monitor: 1NC/1NO
Connector: None
Specification
| Isd Connect Compatible | No |
|---|---|
| Ip Rating | IP67 |
| Supply Voltage | 24 V ac/dc |
| Item Status | RELEASED |
| Switch Style | Contact |
| Device Type | Mechanical – Sensor |
| Primary Housing Material | Thermoplastic body, Zinc head |
| In Series Diagnostics | No |
| Locking Mechanism | Power Lock |
| Device Size | 192 x 42 x 44 |
| Min Op. Temperature (C) | -25 |
| Max Op. Temperature (C) | 55 |
| Pl Rating | PL e |
| Sil Rating | SIL CL 3 |
| Safety Category | Cat 4 |
| S I S T E M A | B10d = 2 million |
| Actuator (Safety) Contacts | 1 NC/1 NO |
| Monitor (Locked) Contacts | 1 NC/1 NO |
| Output Type | Contacts |
| Connection Type | Wiring Chamber |
| Feature: Cascade | No |
| Feature: Lockable | Yes |
| Feature: Quick Disconnect | No |
| Rated Operating Current | 6.7 VA |
| Coding Level/Tamper Resistance | Low |
| Extraction Force (N) | 1500 |
| Power Consumption (W/Va) | 6.7 VA |
| In Rush Power Consumption (Va/S) | 6.7 VA |
| Mechanical Life (Operations In Millions) | 1 |
| Auxilliary Output | No |
