Banner Engineering SG-TL70B-Y
TL70 Basic Light Module; Color: Yellow
Voltage: 12-30 V dc; Environmental Rating: IP65
Steady On/Flashing
Black Housing; Use with B-TL70B-Q5, B-TL70B-Q8 or B-TL…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

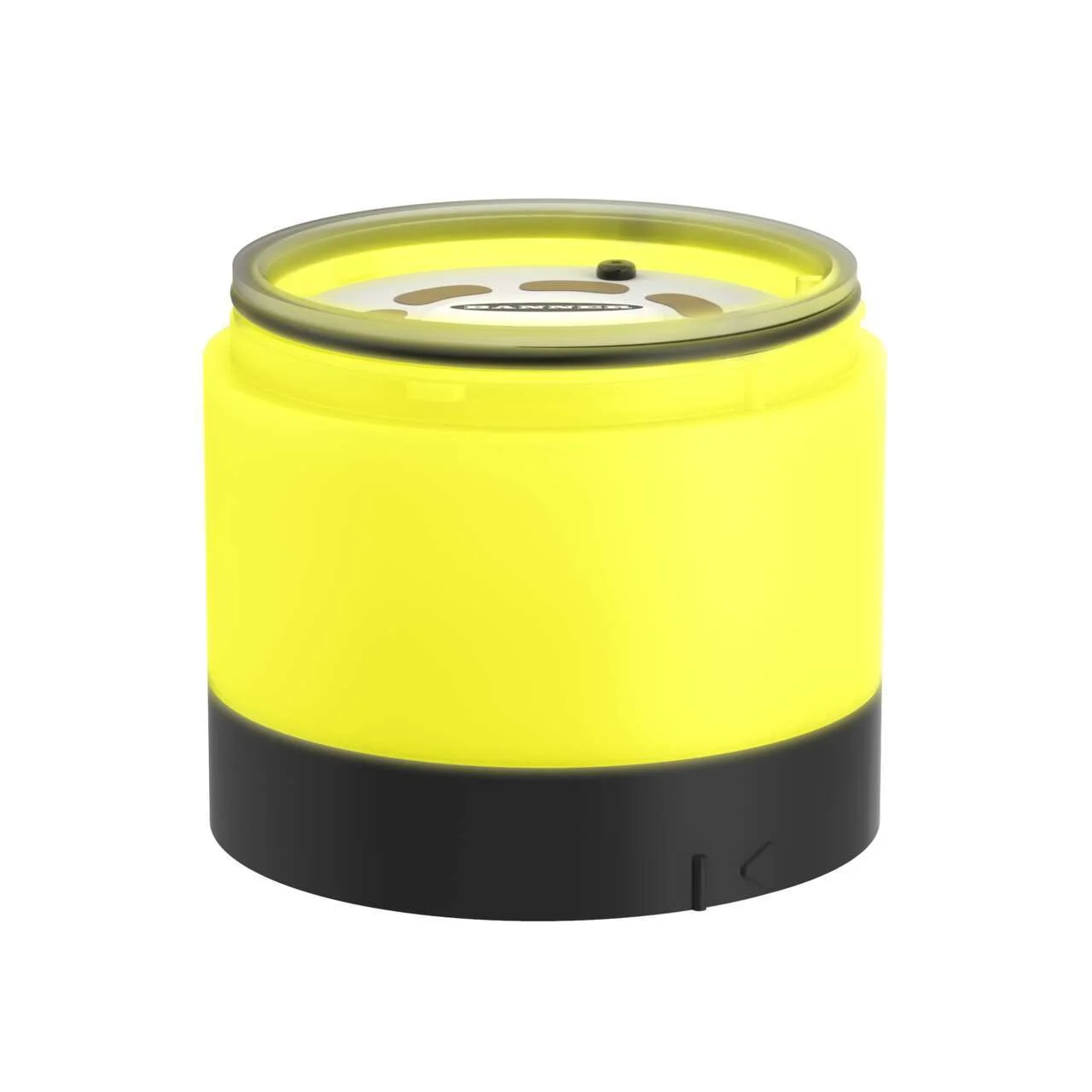

TL70 Basic Light Module; Color: Yellow
Voltage: 12-30 V dc; Environmental Rating: IP65
Steady On/Flashing
Black Housing; Use with B-TL70B-Q5, B-TL70B-Q8 or B-TL70BK-Q bases
Specification
| Power | DC |
|---|---|
| Product Type | B |
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Lighting Device Type | Light Module |
| Programmable | No |
| Item Status | RELEASED |
| Housing Style | Segment – Light |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 70 |
| Color Technology | Standard LED |
| Number Of Tower Light Segments | 1 |
| Color Option 1 | Yellow |
| Animation Option 1 | Dip-Switch Controlled |
| Lumens Color 1 | 55.0 |
| Color 1 Wavelength/Color Temp/Coordinates | 589 nm |
| Max Current Color (Ma) | 121 |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 70.0 x 50.0 |
| Environmental Rating | IP65 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Io Link | No |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
