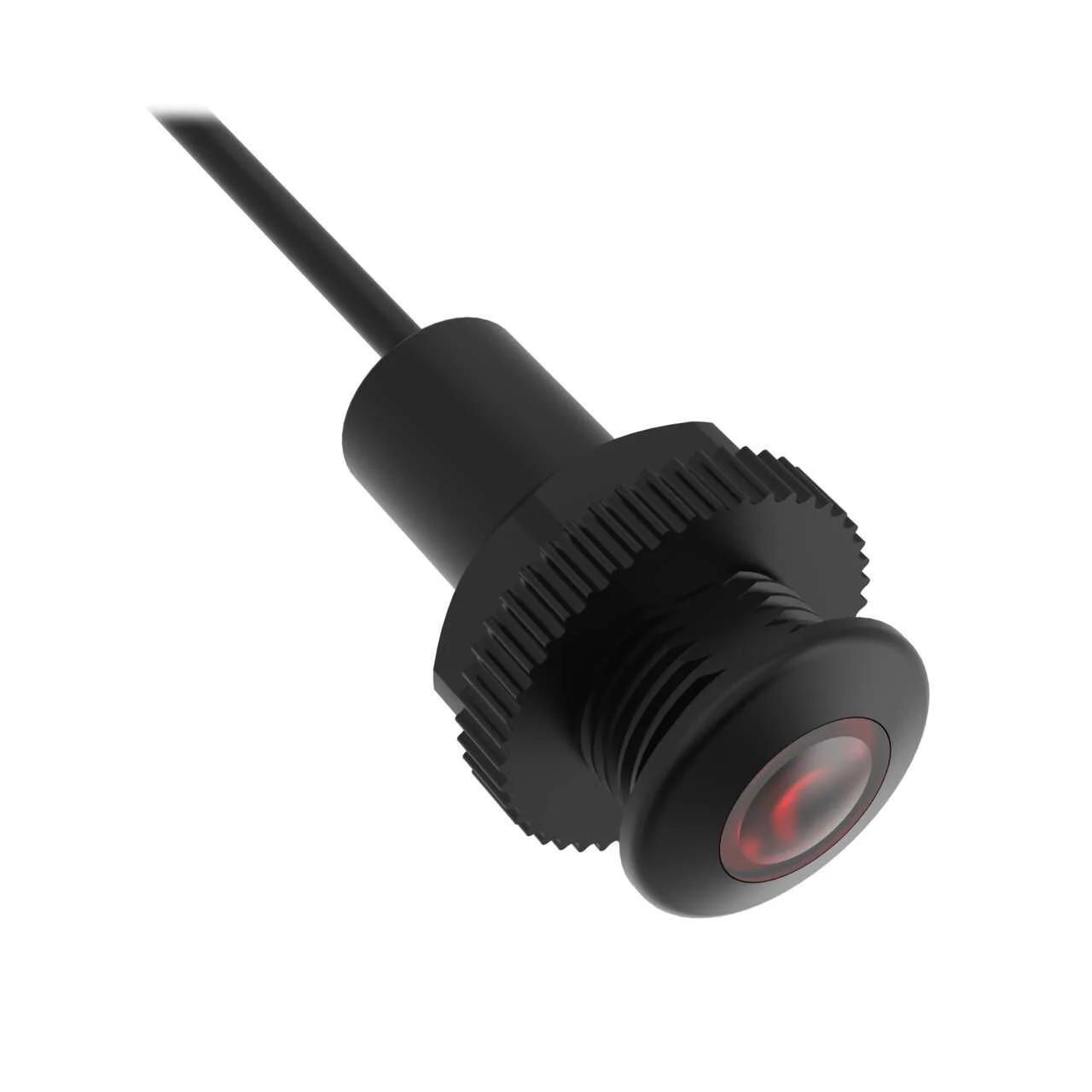

Banner Engineering SB12TE1
SB12 Threaded Series Emitter
Range: 1.5 m; Input Voltage: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) cable
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SB12 Threaded Series Emitter
Range: 1.5 m; Input Voltage: 10-30 V dc
Output: Not Applicable
2 m (6.5 ft) cable
Specification
| Power | DC |
|---|---|
| Sensing Beam | Infrared LED |
| Cable Length (M) | 2 |
| Ip Rating | IP67 |
| Supply Voltage | 10-30 V dc |
| Item Status | RELEASED |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Emitter |
| Housing Style | Barrel |
| Primary Housing Material | Thermoplastic |
| Max Sensing Distance (Mm) | 1500 |
| Connection | Cable |
| Operation | N/A |
| Min Op. Temperature (C) | -20 |
| Max Op. Temp. (C) | 50 |
| Output Response Time (Ms) | 2.5 ON/1.75 OFF |
| Special Feature: Intrinsically Safe | No |
| Special Feature: Remote Teach | No |
| Special Feature: Water Detection | No |
| Delay At Power Up (Ms) | 1000 |
| Repeatability (µS) | 350 |
| Number Of Pins | 3 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Polycarbonate |
| Adjustments | N/A |
| Barrel Diameter (Mm) | 12 |
| Indicator | LEDs |
| Opposed Mode Emitter/Receiver | Emitter |
| Feature: Washdown Rated | No |
| Feature: Clear Object Detection | No |
| Feature: Timing (Hold/Delay) | No |
| Feature: Audible | No |
| Feature: Chemical Resistant | No |
| Feature: Quick Disconnect | No |
| Feature: Health/Marginal Signal Output | No |
| Device Net | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 01/11/2023 |
