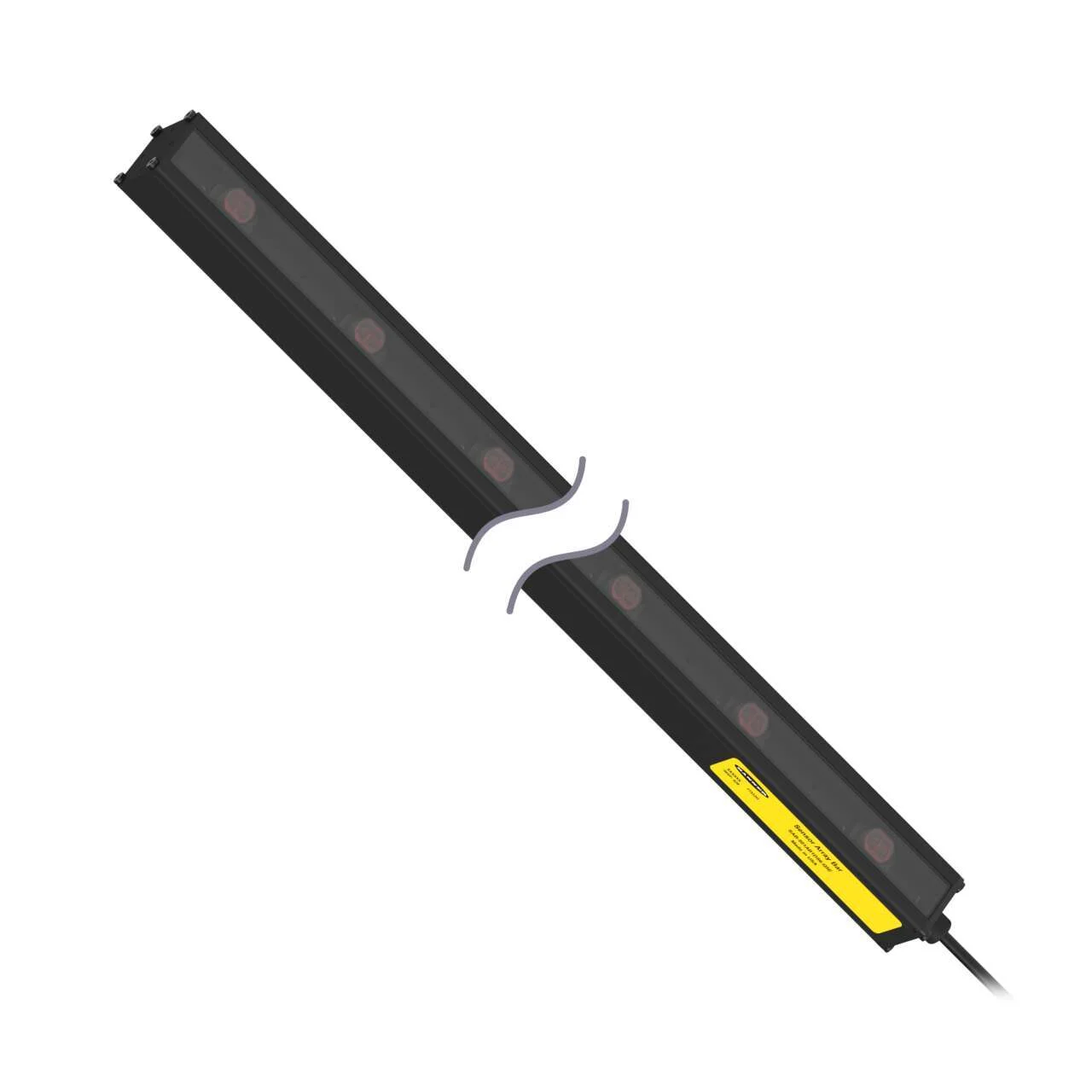

Banner Engineering SAB-497AB1LP6-Q5E
WORLD-BEAM QS18 Series: 6 Beam Sensor Array
Polarized Retro
Range: 1 m; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) 4-pin M12 Pig…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WORLD-BEAM QS18 Series: 6 Beam Sensor Array
Polarized Retro
Range: 1 m; Input: 10-30 V dc
Outputs: Bipolar NPN and PNP Light Operate
150 mm (6 in) 4-pin M12 Pigtail QD
Specification
| Cable Length (M) | 0.2 |
|---|---|
| Ip Rating | IP50 |
| Nema / Ul Type Rating | N/A |
| Item Status | RELEASED |
| Housing Style | Sensing Array Bar |
| Primary Housing Material | Black Anodized Aluminum |
| Max Sensing Range (Mm) | 1000 |
| Slot Depth/Array Length (Mm) | 497 |
| Connection | Pigtail QD |
| Quick Disconnect Type | M12 |
| Outputs | Bipolar (NPN & PNP) |
| Slot Overall Depth (Mm) | 38 |
| Number Of Pins | 4 |
| Power Supply/Supply Voltage | 10-30 V dc |
| Output Response Time (Ms) | 1.5 |
| Adjustments | N/A |
| Lens Material | Acrylic |
| Delay At Power Up (Ms) | N/A |
| Operation | Light Operate |
| Indicator | Indicator LEDs |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -20 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Feature: Quick Disconnect | Yes |
| Number Of Beams | 6 |
| Beam To Beam Spacing [Mm] | 82.55 |
| Distance To First Beam [Mm] | 42.0 |
