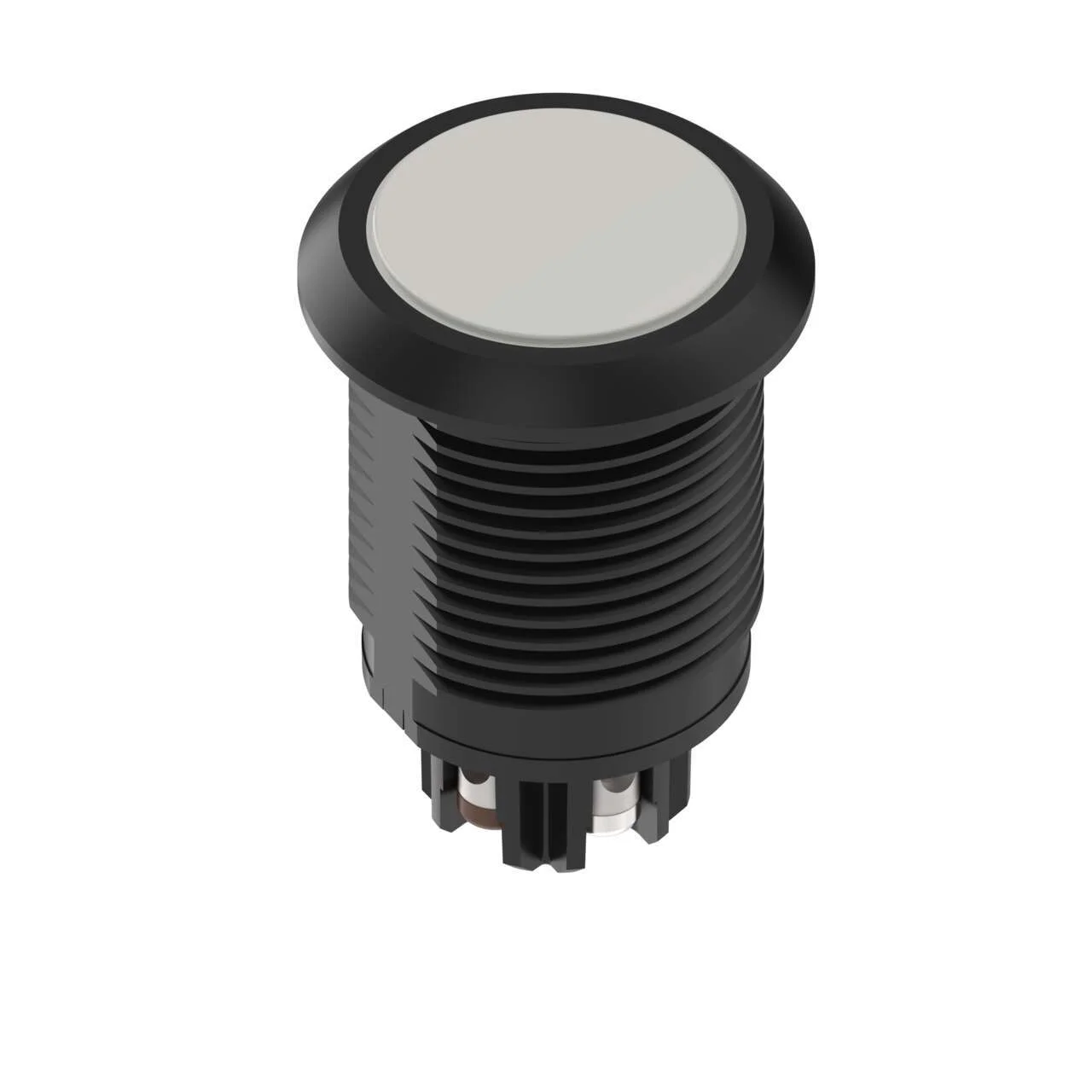

Banner Engineering S22L2SRGB14T

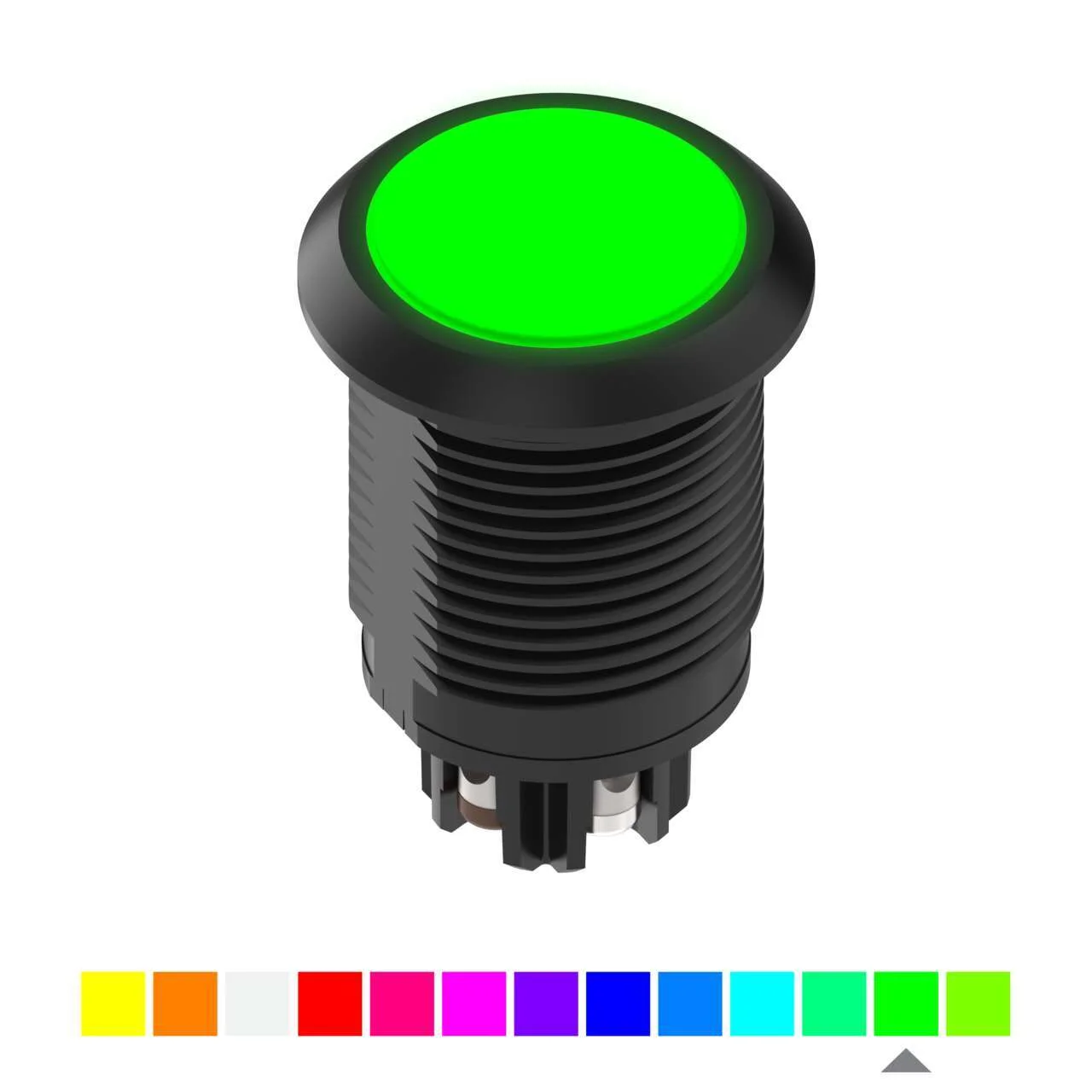

S22 Pro Series: 14-color RGB Indicator
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: Bimodal; Colors: Multicolor

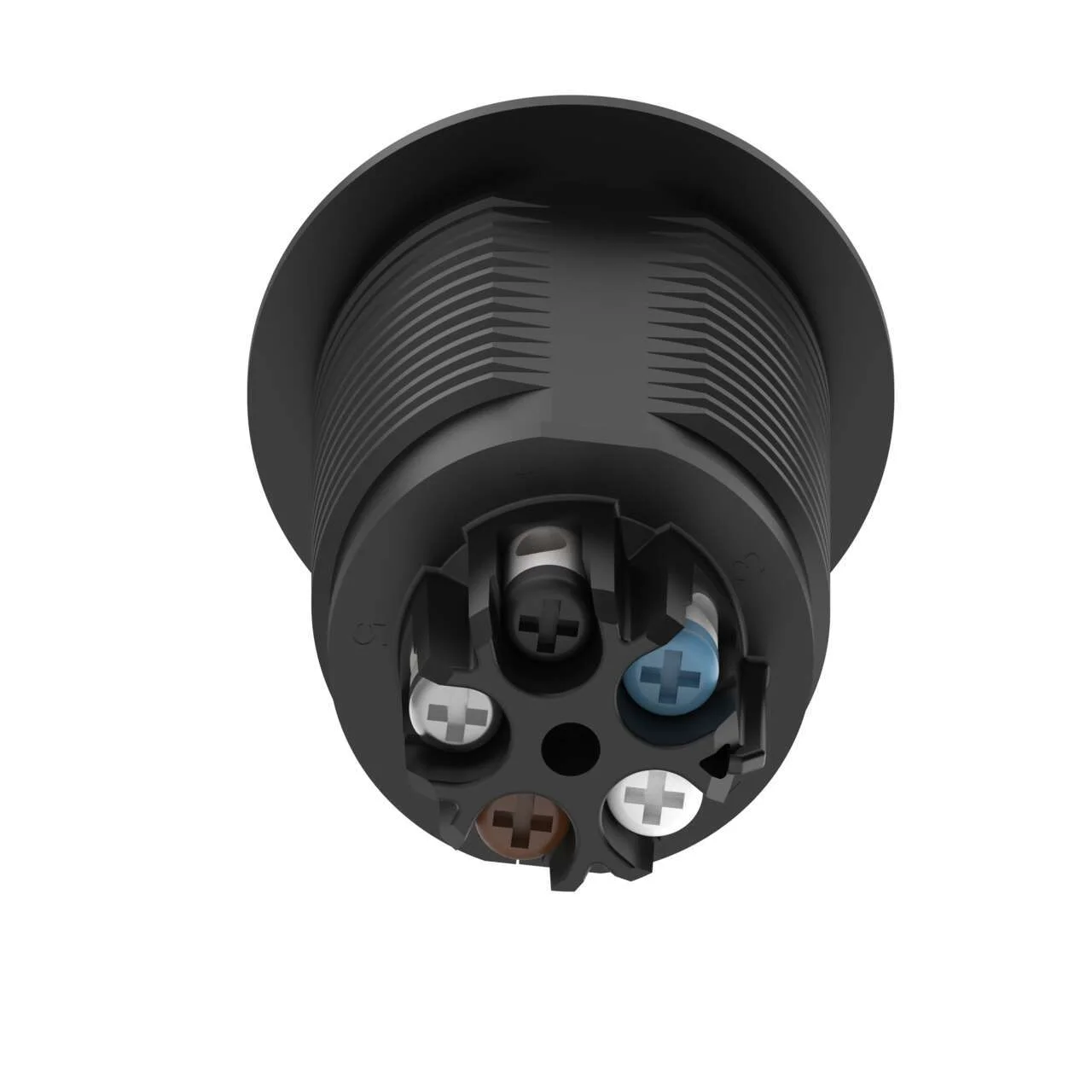

5-screw Terminal Wiring
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
S22 Pro Series: 14-color RGB Indicator
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Input: Bimodal; Colors: Multicolor
5-screw Terminal Wiring
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP66, IP67, IP69K |
| Display | No |
| Supply Voltage | 10-30 V dc |
| Programmable | Yes |
| Item Status | RELEASED |
| Housing Style | Barrel Mount – Flat Window |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Actuation | No |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 14 |
| Product Size (Mm) | 22 |
| Color Technology | RGB Configurable |
| Color Option 1 | Red |
| Connection | Terminal |
| Lumens Color 1 | 0.80 |
| Color 1 Wavelength/Color Temp/Coordinates | 625 nm |
| Color Option 2 | Green |
| Lumens Color 2 | 1.9 |
| Color 2 Wavelength/Color Temp/Coordinates | 527 nm |
| Color Option 3 | Blue |
| Lumens Color 3 | 0.30 |
| Color 3 Wavelength/Color Temp/Coordinates | 465 nm |
| Color Option 4 | Yellow |
| Lumens Color 4 | 2.5 |
| Color 4 Wavelength/Color Temp/Coordinates | 571 nm |
| Color Option 5 | White |
| Lumens Color 5 | 2.5 |
| Color 5 Wavelength/Color Temp/Coordinates | 5700K |
| Color Option 6 | Magenta |
| Lumens Color 6 | 1.2 |
| Color 6 Wavelength/Color Temp/Coordinates | 0.345, 0.161 |
| Color Option 7 | Cyan |
| Lumens Color 7 | 2.0 |
| Color 7 Wavelength/Color Temp/Coordinates | 492 nm |
| Max Current Color (Ma) | 70 |
| Number Of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | Yes |
| Max Input Response Time (Ms) | 250 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 27.3 x 39.1 |
| Environmental Rating | IP66; IP67; IP69K |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Application: Pick To Light | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | Yes |
| Eplan Status | Published |
| Eplan Original Sent Date | 04/05/2024 |
