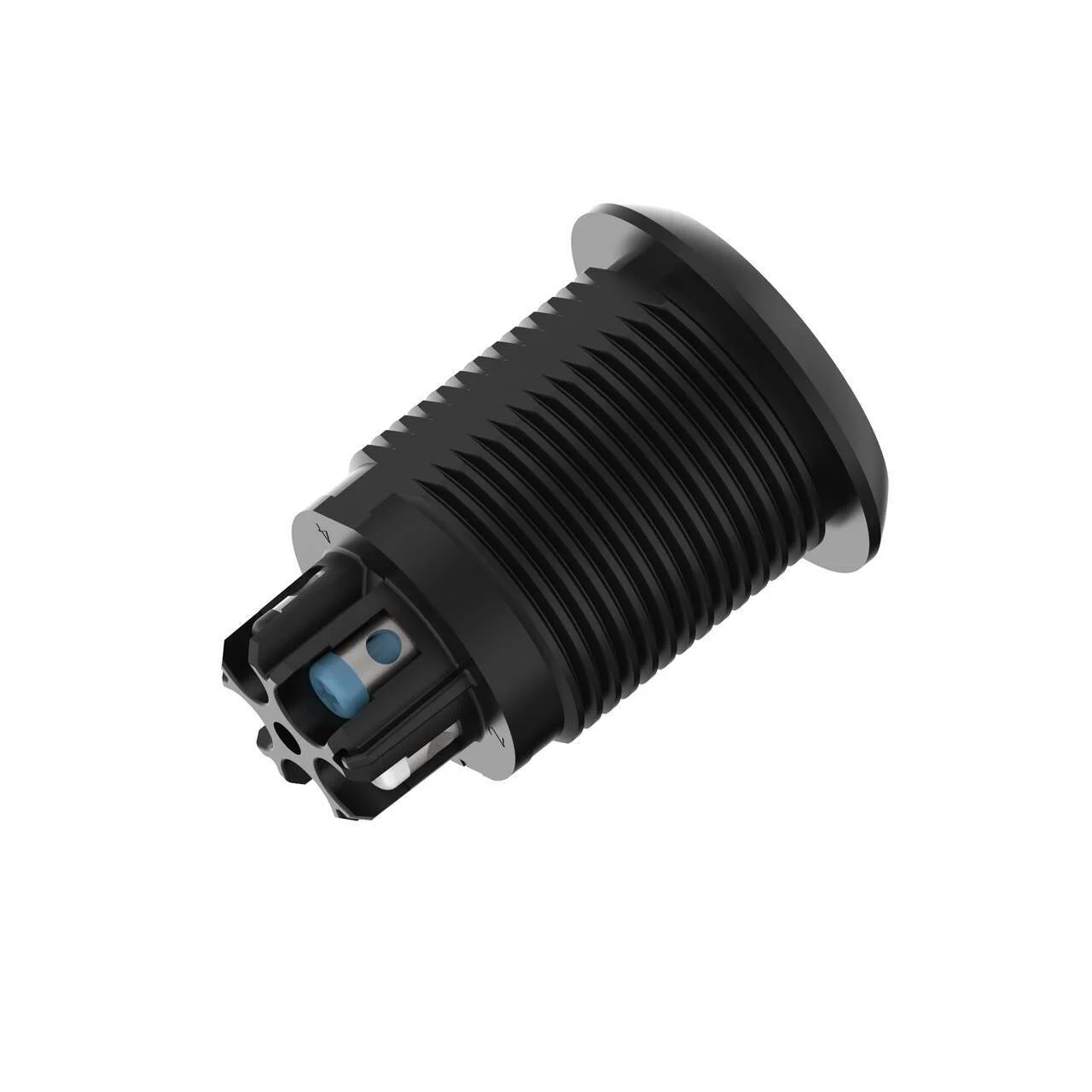

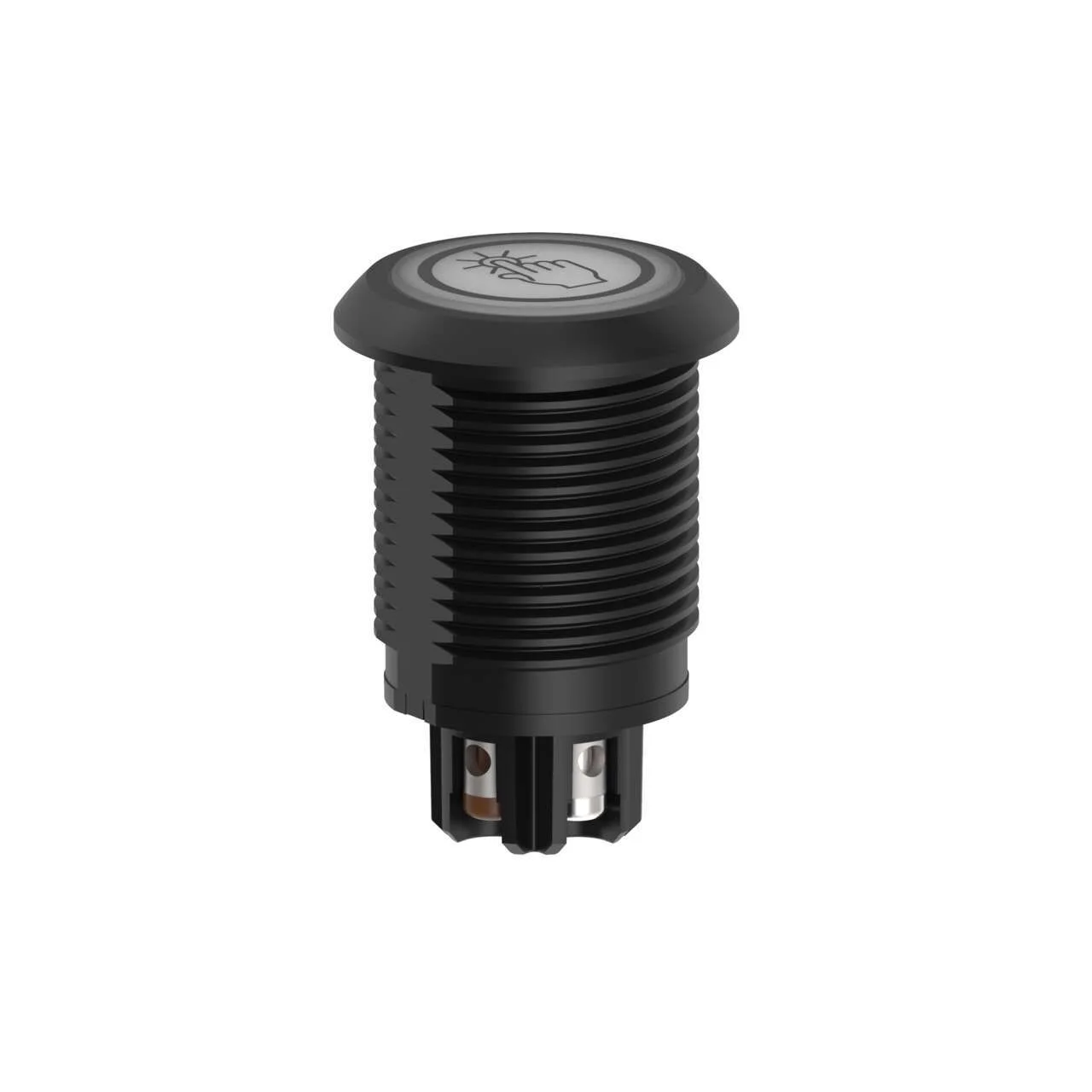

Banner Engineering S22AMTSWGHT
S22 Pro Touch Series: 2-color RGB Touch Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar, NO, Momentary; Colors: White Green
5-scr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
S22 Pro Touch Series: 2-color RGB Touch Sensor
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K
Output: Bipolar, NO, Momentary; Colors: White Green
5-screw Terminal Wiring
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP66, IP67, IP69K |
| Display | No |
| Supply Voltage | 10-30 V dc |
| Programmable | Yes |
| Item Status | RELEASED |
| Housing Style | Barrel Mount – Flat Window |
| Primary Housing Material | Polycarbonate |
| Indication | No |
| Illumination | No |
| Actuation | Yes |
| Activation Function | Capacitive Touch |
| Mounting Thread | M22 x 1.5 |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 2 |
| Product Size (Mm) | 22 |
| Color Technology | RGB Configurable |
| Color Option 1 | Cool White |
| Connection | Terminal |
| Lumens Color 1 | 0.24 |
| Color 1 Wavelength/Color Temp/Coordinates | 5700K |
| Color Option 2 | Green |
| Lumens Color 2 | 0.18 |
| Color 2 Wavelength/Color Temp/Coordinates | 527 nm |
| Max Current Color (Ma) | 80 |
| Acknowledge (Sense) Light | Green |
| Pick To Light Function | H |
| Number Of Input Pins/Conductors | 5 |
| Operation | Normally Open |
| Output Type | Bipolar (NPN & PNP) |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | Yes |
| Max Input Response Time (Ms) | 20 |
| Max Output Response Time (Ms) | 300 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 27.3 x 39.1 |
| Environmental Rating | IP66; IP67; IP69K |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Button Operation | Momentary |
| Primary Window Material | Polycarbonate Diffused |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Feature: Illuminated | No |
| Multi Color Device | Single Color On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | No |
| Application: Pick To Light | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | Yes |
| Job Light | White |
