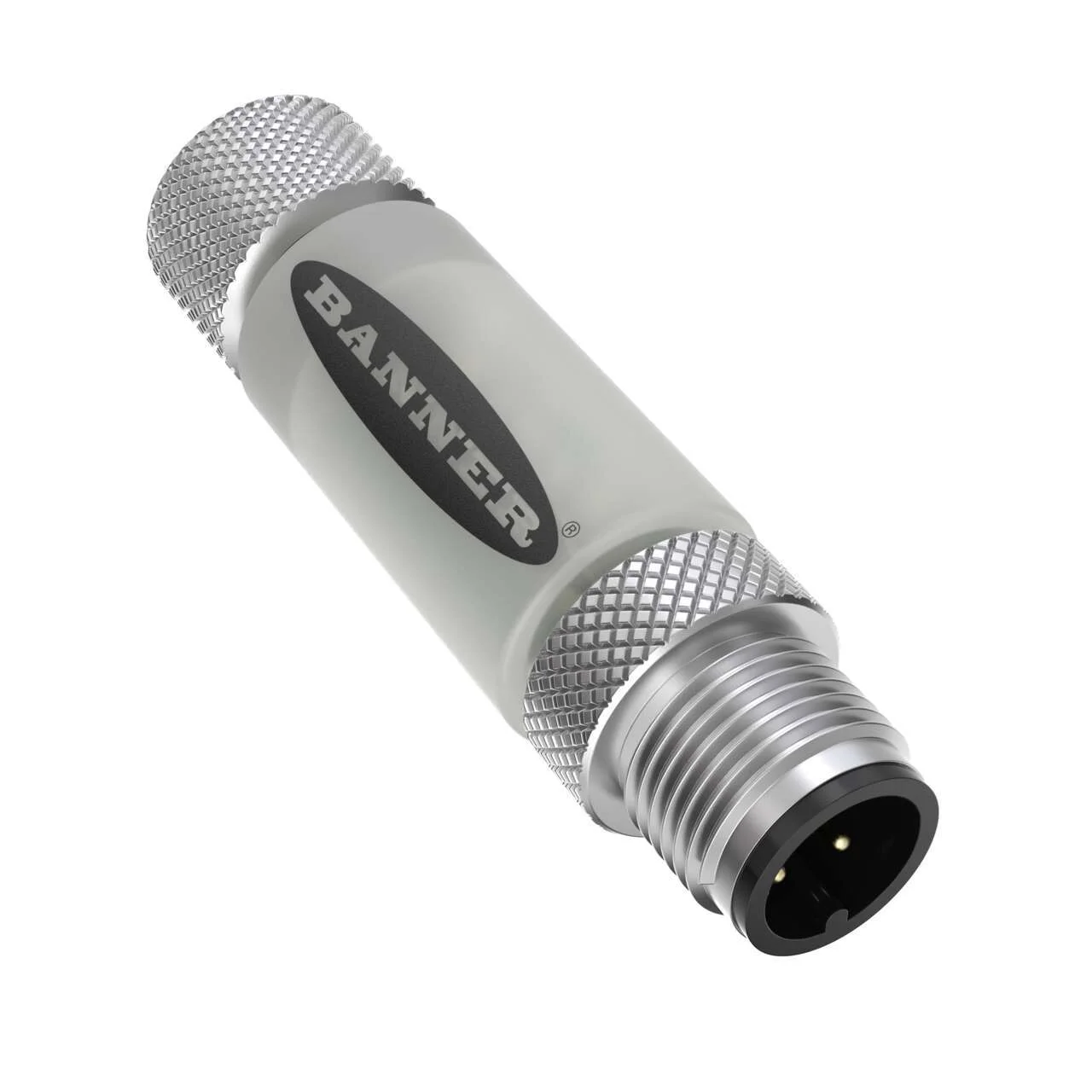

Banner Engineering S15LPRGB7Q
S15L Pro Series: RGB Status Indicator
Voltage: 12-30 V dc; Housing: PVC; IP65, IP67, IP68
Colors: Multicolor
Male-Female 5-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
S15L Pro Series: RGB Status Indicator
Voltage: 12-30 V dc; Housing: PVC; IP65, IP67, IP68
Colors: Multicolor
Male-Female 5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65, IP67, IP68 |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Barrel – Straight |
| Primary Housing Material | PVC |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | No Thread |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Number Of Colors | 14 |
| Product Size (Mm) | 15 |

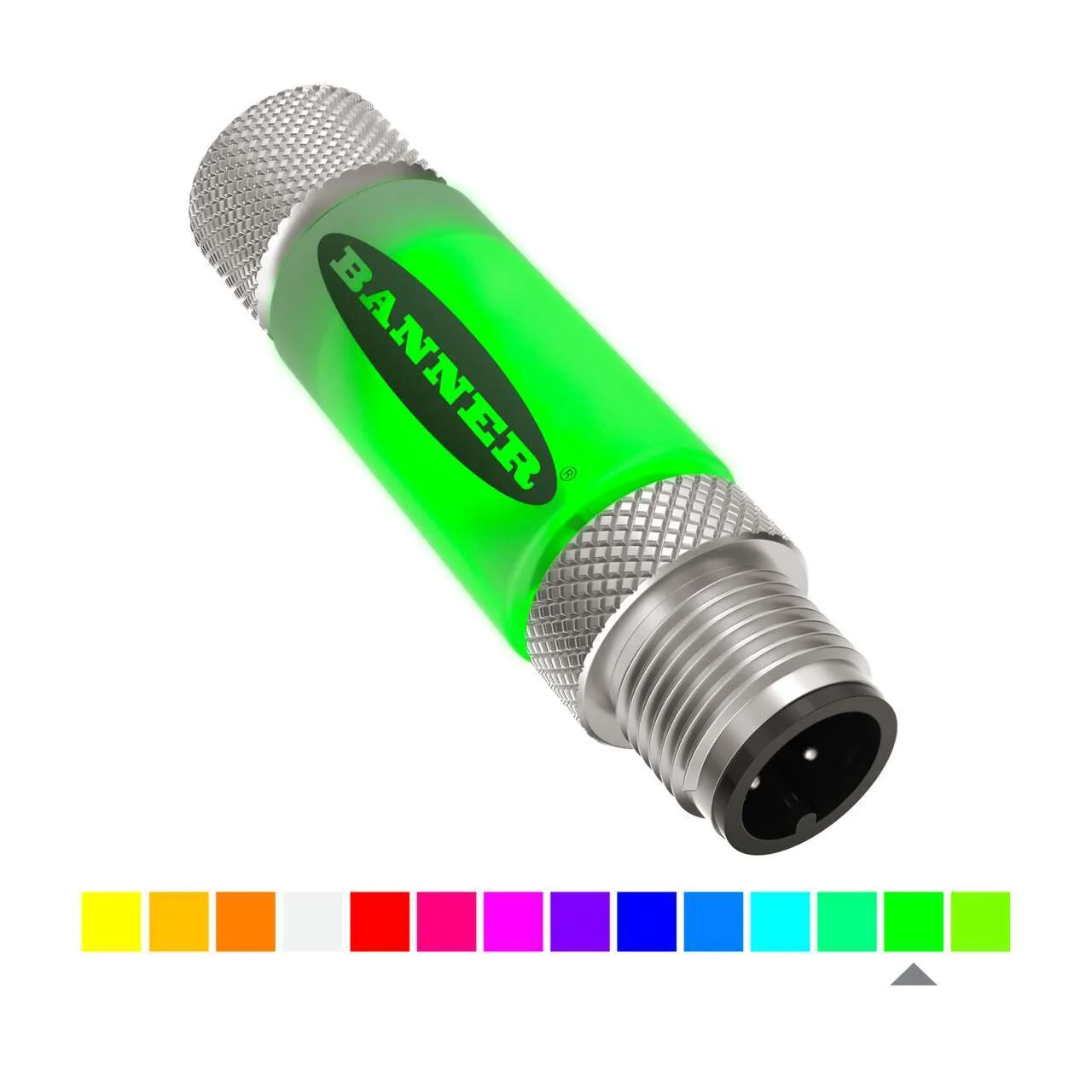

| Color Technology | RGB Configurable |
| Color Option 1 | RGB |
| Animation Option 1 | Programmable |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Max Current Color (Ma) | 60 |
| Dimming Option | Programmable |
| Number Of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | Yes |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 15.0 X 58.0 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 45 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | Yes |
| Feature: Chemical Resistant | No |
| Multi Color Device | Single Color On – Alternating |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | No |
| Modbus Rtu | No |
| Wireless | No |
| U S B | No |
| Pro Editor Compatible (Discrete) | Yes |
| Eplan Status | Published |
| Eplan Original Sent Date | 12/07/2024 |
