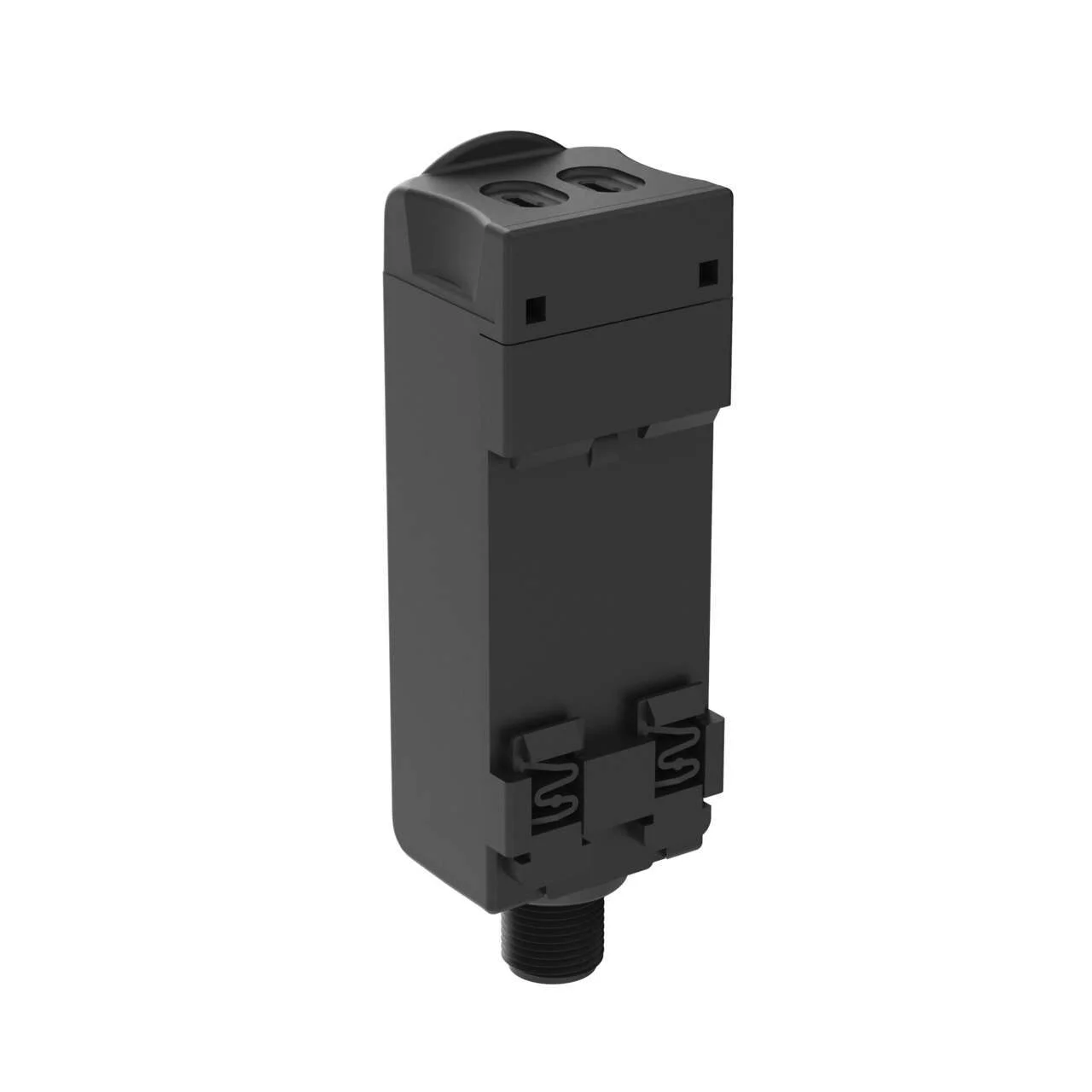

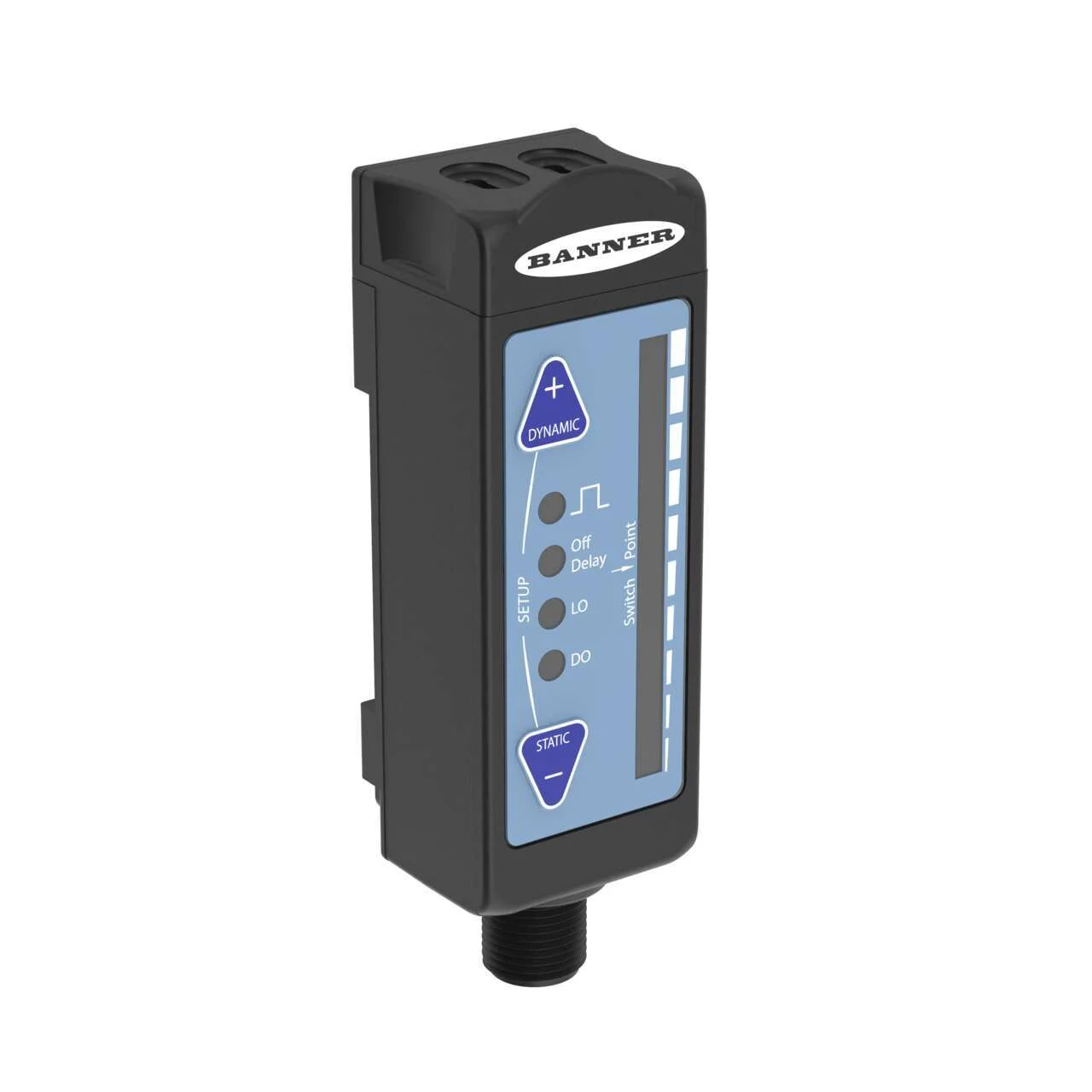

Banner Engineering R55FPBQ
R55 Color Mark: Plastic Fiber w/ Blue LED
Range: Depends on Fiber; Input: 10-30 V dc
Outputs: Bipolar NPN/PNP
5-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
R55 Color Mark: Plastic Fiber w/ Blue LED
Range: Depends on Fiber; Input: 10-30 V dc
Outputs: Bipolar NPN/PNP
5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Ip Rating | IP67 |
| Accepts Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Nema / Ul Type Rating | NEMA 4X |
| Item Status | RELEASED |
| Housing Style | DIN Rail |
| Primary Housing Material | Thermoplastic |
| Input/ Output | Discrete |
| Color Led Amplifiers | Blue |
| Fiber Type | Plastic and Glass |
| Output | Bipolar (NPN & PNP) |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Output Type (Specific) | Single Discrete |
| Repeatability (µS) | 50 |
| Number Of Pins | 5 |
| Max Op. Temperature (C) | 55 |
| Min Op. Temperature (C) | -10 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Special Feature: Remote Teach | Yes |
| Intrinsically Safe | No |
| Adjustments | Teach Button |
| Power Supply/Supply Voltage | 10-30 V dc |
| Delay At Power Up (Ms) | 100 |
| Indicator Display Type | Bargraph |
| Minimum Response Time (Ms) | .05 |
| Special Feature: Bussable Power | No |
| Feature: Washdown Rated | No |
| Feature: Timing (Hold/Delay) | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
| Feature: Health/Marginal Signal Output | No |
| Application: Registration Mark | Yes |
| Housing Material | Thermoplastic |
