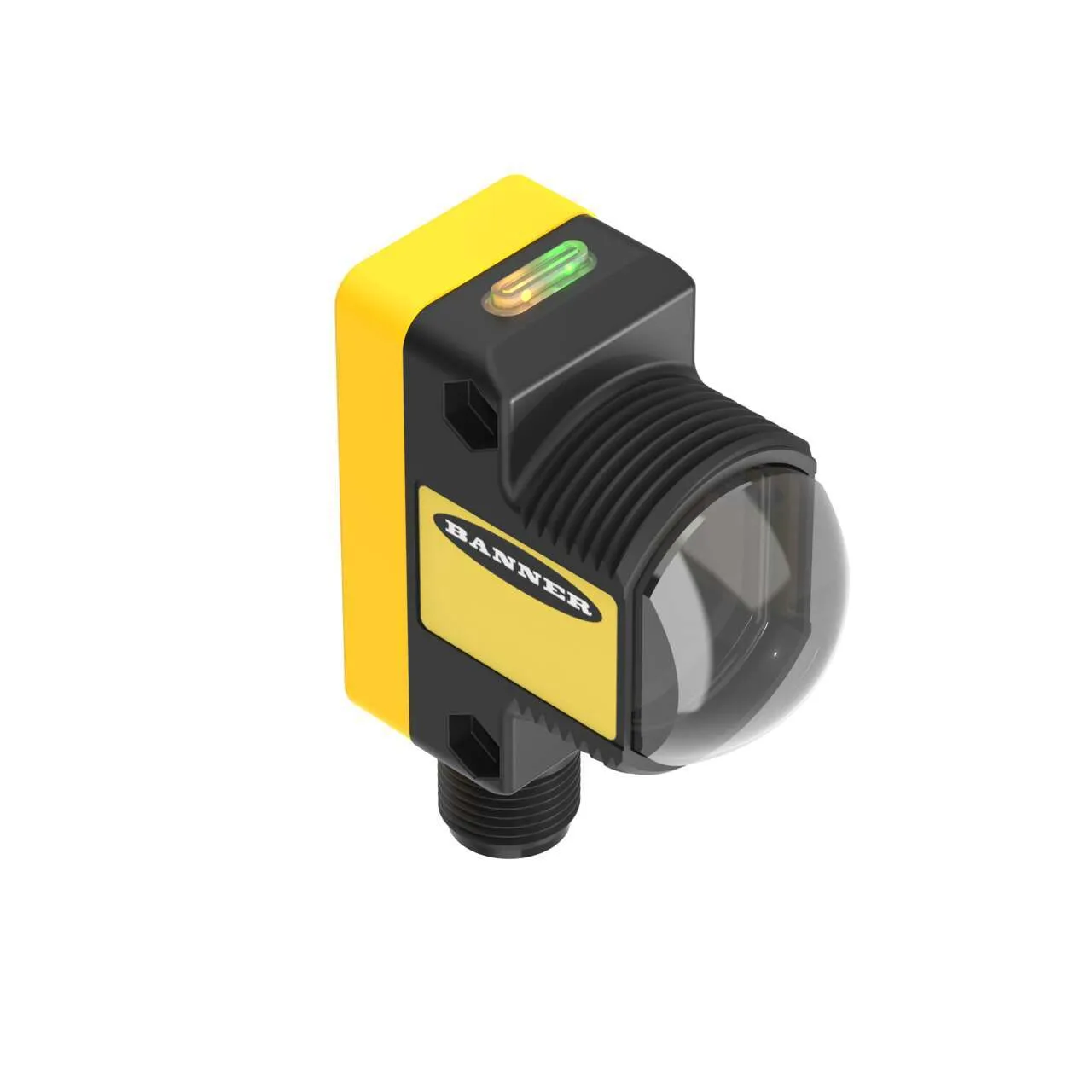

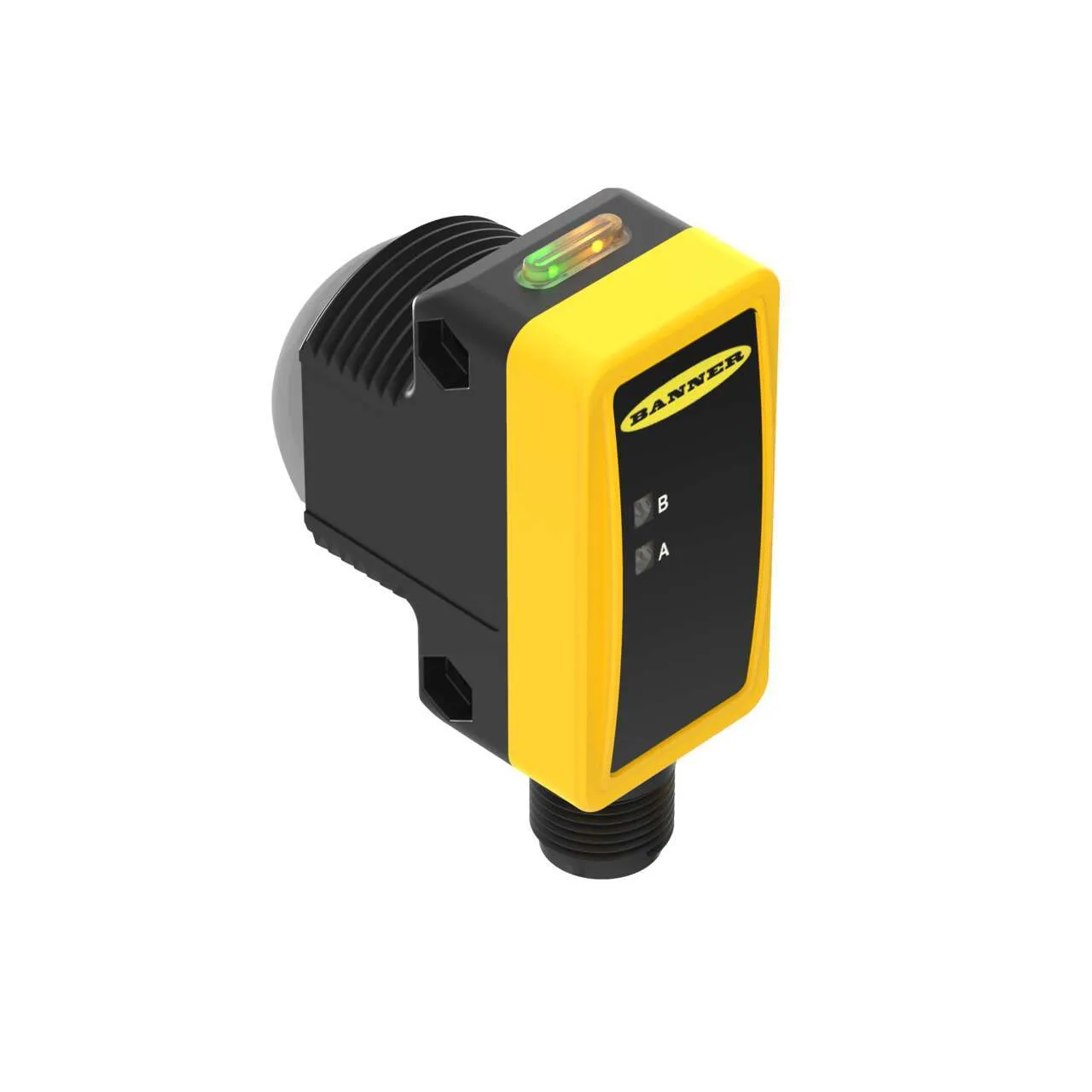

Banner Engineering QS30EXQ

WORLD-BEAM QS30 Series: High-Powered Emitter. Part number: 71561. model: QS30EXQ. part_number: 71561. list_price: 185 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/115011.pdf. BAN_Sensing_Mode_General: Opposed. BAN_Sensing_Mode_Detailed: Emitter. Custom_Group_1883_1883: Feature: Washdown RatedFeature: Encapsulated. BANSensors_SensRange: 213000. BAN_IO_General: —. BANSensors_Output: —. BANSensors_Operation: N/A. BAN_Supply_Voltage: 10-30 V dc. BAN_Connection: Integral QD. BAN_QDType: M12. BAN_CableLength: —. BAN_SensingBeam: Infrared LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -20. BANSensors_MaxOpTemp: 60. BANSensors_Adjustment: N/A. BANSensors_ResponseTime: 30. BAN_Small_Spot: —. Power: DC. Sensing Beam: Infrared LED. IP Rating: IP69K. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Opposed. Sensing Mode (Detailed): Emitter. Housing Style: Rectangular w/M30 Mount. Primary Housing Material: Thermoplastic. Max Sensing Distance (mm): 213000. Connection: Integral QD. Quick Disconnect Type: M12. Operation: N/A. Min Op. Temperature (C): -20. Max Op. Temp. (C): 60. Output response time (ms): 30. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Sensing Beam Wavelength: 875. Delay at Power-up (ms): 100. Repeatability (µs): 5000. Number of Pins: 5. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Zeonex. Adjustments: N/A. Barrel Diameter (mm): 30. Indicator: LEDs. Opposed Mode Emitter/Receiver: Emitter. Feature: Washdown Rated: Yes. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Encapsulated: Yes. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 12/08/2021
