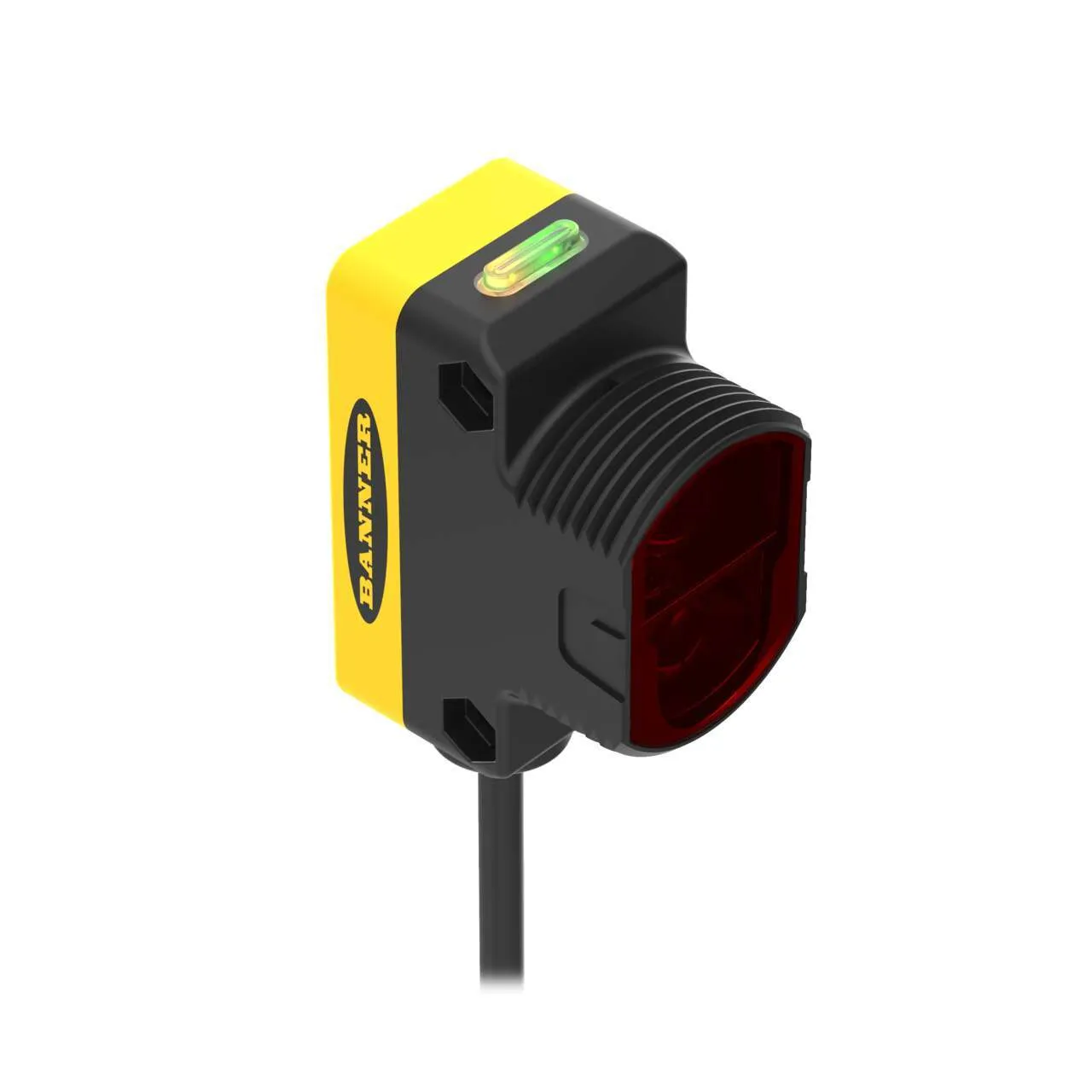

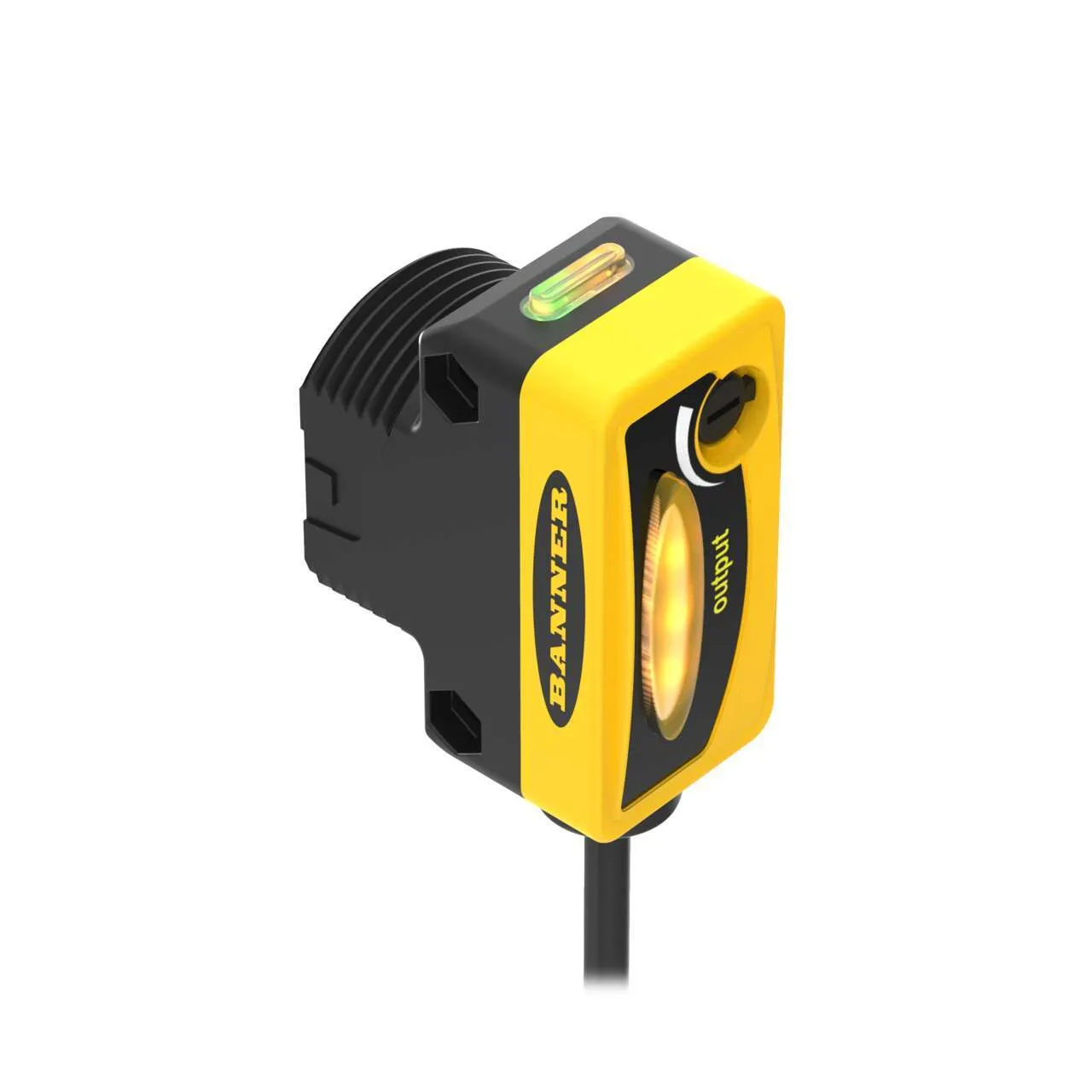

Banner Engineering QS30D

WORLD-BEAM QS30 Series: Diffuse. Part number: 72604. model: QS30D. part_number: 72604. list_price: 118 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/119165.pdf. BAN_Sensing_Mode_General: Proximity. BAN_Sensing_Mode_Detailed: Diffuse. Custom_Group_1883_1883: —. BANSensors_SensRange: 1000. BAN_IO_General: Discrete. BANSensors_Output: Bipolar (NPN & PNP). BANSensors_Operation: Light/Dark Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 2. BAN_SensingBeam: Infrared LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -20. BANSensors_MaxOpTemp: 70. BANSensors_Adjustment: Potentiometer. BANSensors_ResponseTime: 2. BAN_Small_Spot: —. Power: DC. Sensing Beam: Infrared LED. Cable Length (m): 2. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Diffuse. Housing Style: Rectangular w/M30 Mount. Primary Housing Material: Thermoplastic. Input/Output: Discrete. Max Sensing Distance (mm): 1000. Outputs: Bipolar (NPN & PNP). Connection: Cable. Operation: Light/Dark Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 70. Output response time (ms): 2. Special Feature: Intrinsically Safe: No. Special Feature: Remote Teach: No. Special Feature: Water Detection: No. Delay at Power-up (ms): 100. Repeatability (µs): 500. Number of Pins: 5. Max Op. Relative Humidity [%]: 95% @ 55°C. Lens Material: Acrylic. Adjustments: Potentiometer. Barrel Diameter (mm): 30. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. DeviceNet: No. EPLAN Status: Published. EPLAN Original Sent Date: 07/03/2024
