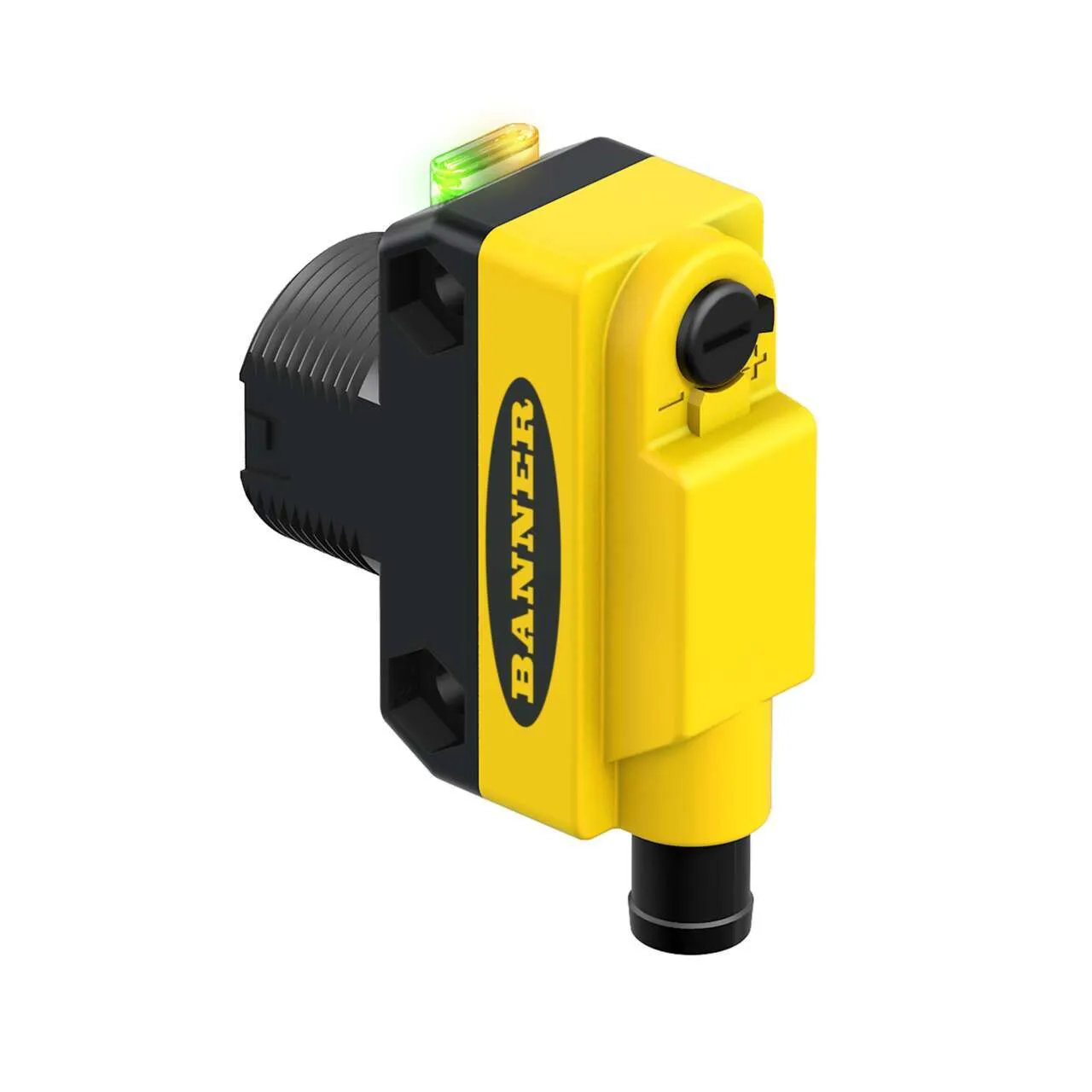

Banner Engineering QS18VP6LPQ9

WORLD-BEAM QS18 Series: Polarized Retro. Part number: 76207. model: QS18VP6LPQ9. part_number: 76207. list_price: 101 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/197052.pdf. BAN_Sensing_Mode_General: Retroreflective. BAN_Sensing_Mode_Detailed: Polarized. BANSensors_SensRange: 3500. Custom_Group_1896_1896: —. BANSensors_Output: PNP. BANSensors_Operation: Light/Dark Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_CommProtocols_IOLink: No. BAN_Housing_Style: Rectangular w/M18 Mount. BAN_Connection: Integral QD. BAN_QDType: M8. BAN_CableLength: —. BAN_SensingBeam: Visible Red LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -20. BANSensors_MaxOpTemp: 70. BANSensors_Adjustment: Potentiometer. BANSensors_ResponseTime: 0.6. BAN_Small_Spot: —. Power: DC. Sensing Beam: Visible Red LED. IP Rating: IP67. NEMA / UL Type Rating: NEMA 4X. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Retroreflective. Sensing Mode (Detailed): Polarized. Housing Style: Rectangular w/M18 Mount. Primary Housing Material: ABS. Input/Output: Discrete. Max Sensing Distance (mm): 3500. Outputs: PNP. Connection: Integral QD. Quick Disconnect Type: M8. Operation: Light/Dark Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 70. Output response time (ms): 0.6. Sensing Beam Wavelength: 630. Delay at Power-up (ms): 100. Repeatability (µs): 150. Number of Pins: 4. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Potentiometer. Barrel Diameter (mm): 18. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: Yes. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: No. EPLAN Status: Published. EPLAN Original Sent Date: 01/29/2024
