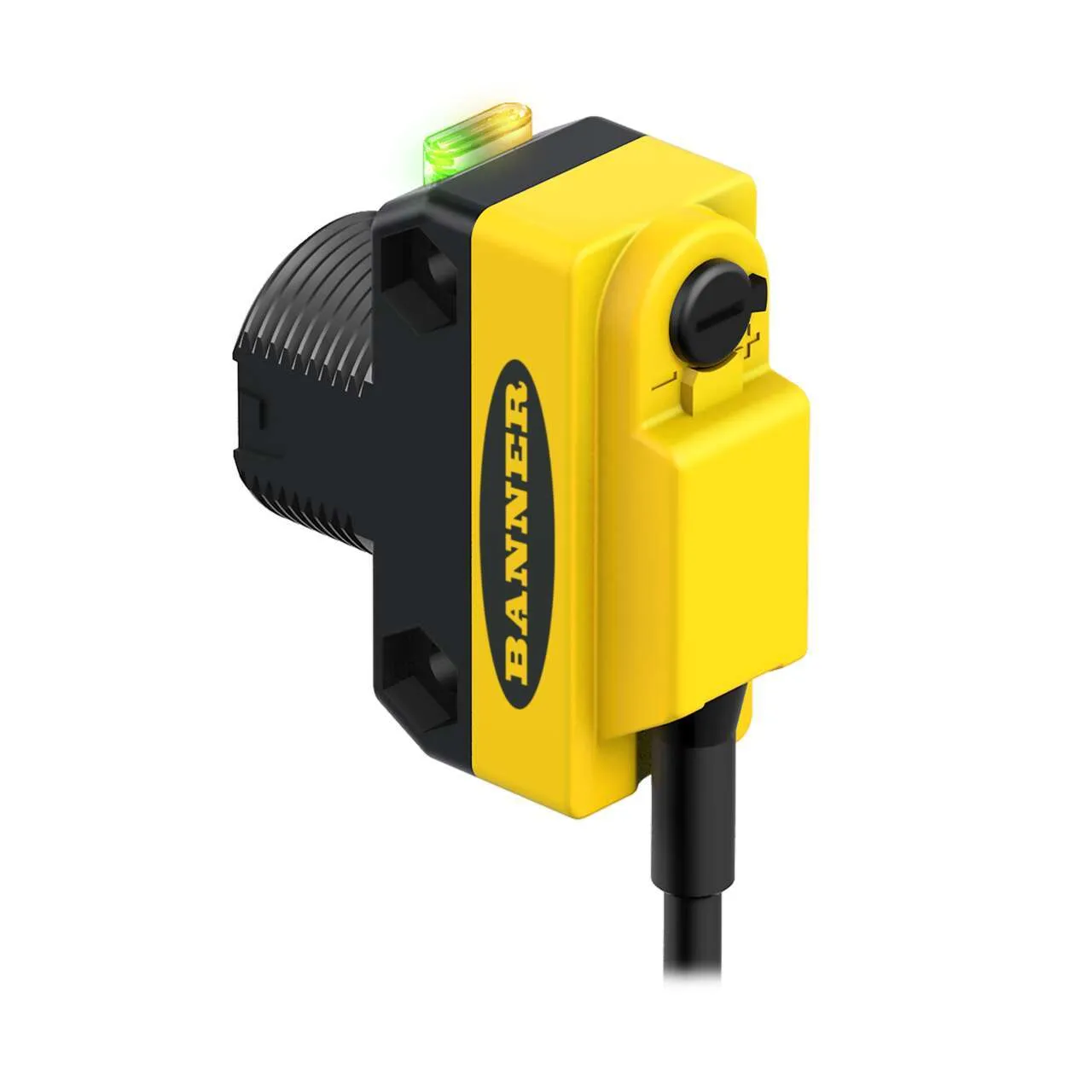

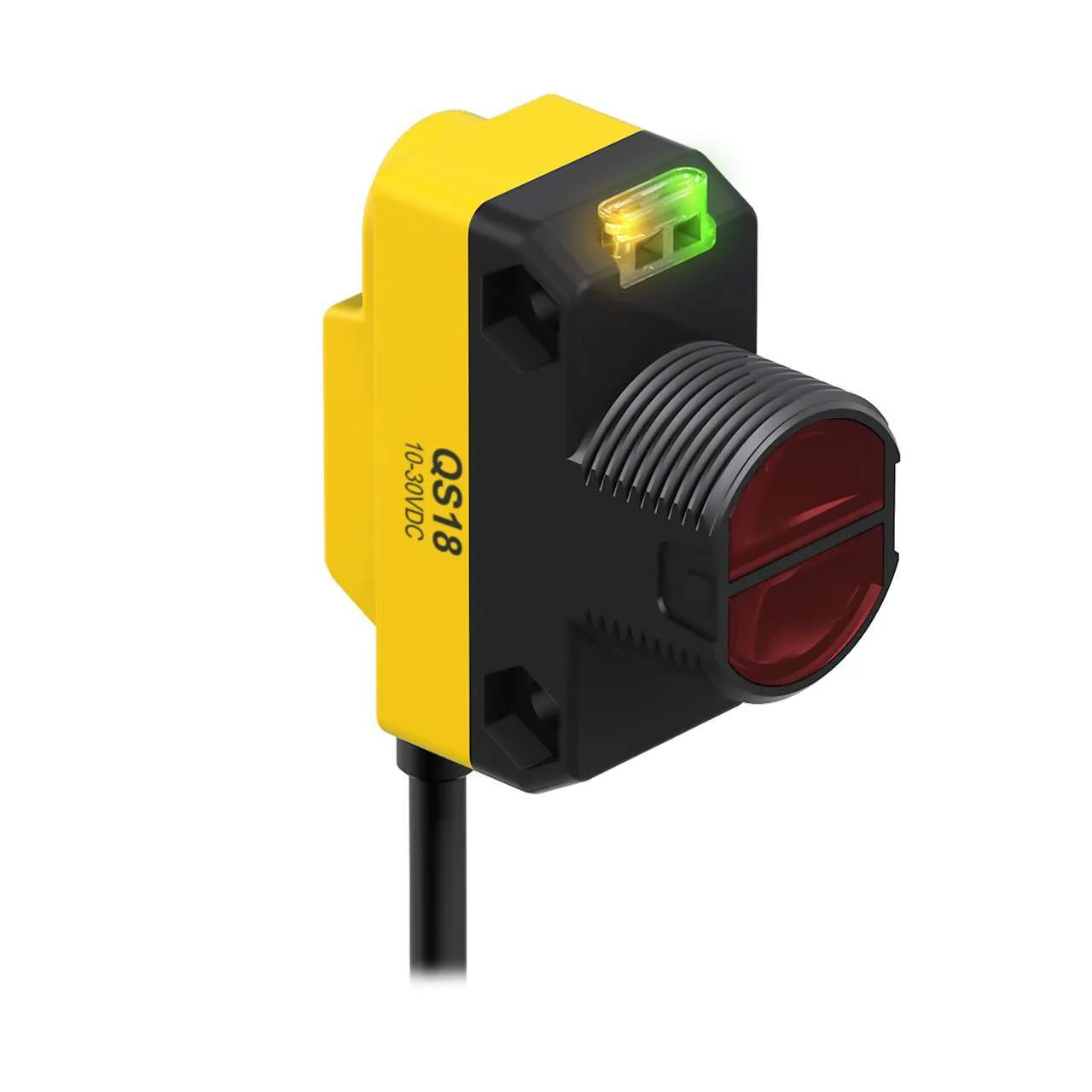

Banner Engineering QS18VP6D

WORLD-BEAM QS18 Series: Diffuse. Part number: 61654. model: QS18VP6D. part_number: 61654. list_price: 96 USD. is_new: 0. is_in_stock: 0. product_manual: https://info.bannerengineering.com/cs/groups/public/documents/literature/197052.pdf. BAN_Sensing_Mode_General: Proximity. BAN_Sensing_Mode_Detailed: Diffuse. BANSensors_SensRange: 450. Custom_Group_1896_1896: —. BANSensors_Output: PNP. BANSensors_Operation: Light/Dark Operate. BAN_Supply_Voltage: 10-30 V dc. BAN_CommProtocols_IOLink: No. BAN_Housing_Style: Rectangular w/M18 Mount. BAN_Connection: Cable. BAN_QDType: —. BAN_CableLength: 2. BAN_SensingBeam: Infrared LED. BAN_Laser_Classification: —. BANSensors_MinOpTemp: -20. BANSensors_MaxOpTemp: 70. BANSensors_Adjustment: Potentiometer. BANSensors_ResponseTime: 0.6. BAN_Small_Spot: —. Power: DC. Sensing Beam: Infrared LED. Cable Length (m): 2. IP Rating: IP67. NEMA / UL Type Rating: NEMA 6. Supply Voltage: 10-30 V dc. Item Status: RELEASED. Sensing Mode (General): Proximity. Sensing Mode (Detailed): Diffuse. Housing Style: Rectangular w/M18 Mount. Primary Housing Material: ABS. Input/Output: Discrete. Max Sensing Distance (mm): 450. Outputs: PNP. Connection: Cable. Operation: Light/Dark Operate. Min Op. Temperature (C): -20. Max Op. Temp. (C): 70. Output response time (ms): 0.6. Delay at Power-up (ms): 100. Repeatability (µs): 150. Number of Pins: 4. Max Op. Relative Humidity [%]: 95% @ 50°C. Lens Material: Acrylic. Adjustments: Potentiometer. Barrel Diameter (mm): 18. Indicator: LEDs. Feature: Washdown Rated: No. Feature: Clear Object Detection: No. Feature: Timing (Hold/Delay): No. Feature: Audible: No. Feature: Chemical Resistant: No. Feature: Quick Disconnect: No. Feature: Health/Marginal Signal Output: No. DeviceNet: No. IO Link: No. EPLAN Status: Published. EPLAN Original Sent Date: 12/08/2021
